End of Line Automated Packaging System

Vention official

This vention robotic solution automates your end of line packaging process with multiple programmed robots to efficiently increase your production output.

Spec Attribute	Spec Value
Technical Specifications
Design Number	PZ-EL-266019
Weight	2192.44 kg
Dimensions (L x W x H)	12063 x 5713 x 3849 mm
Application	Packaging
Assembly Time	132:10

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Pneumatic Air Preparation Station, EuropeCA-AP-001-0001__2 - 214 X 203 X 98 mmShips next day	3
	2-Valve Pneumatic ManifoldCA-CO-001-0002__3 - 200 X 178 X 77 mmShips next day	2
	4-Valve Pneumatic ManifoldCA-CO-001-0004__3 - 200 X 176 X 77 mmShips next day	2
	Safety Module Muting KitCE-AP-002-0000__2 - 110 X 110 X 30 mmShips in 3 days	1
	On/Off Pneumatic Valve, Normally ClosedCE-AR-002-0000__3 - 157 X 115 X 38 mmShips next day	1
	Industrial Power StripCE-CA-036-0001 - 630 X 113 X 112 mmShips next day	2
	MachineMotion 2 - One DriveCE-CL-010-0001 - 392 X 293 X 150 mmShips in 7 days	1
	MachineMotion 2 - Four DriveCE-CL-010-0004 - 392 X 293 X 150 mmShips in 7 days	2
	Sensor and Reflector BracketCE-HW-001-0003__3 - 43 X 44 X 37 mmShips next day	30
	Small Module AdaptorCE-HW-001-0005 - 133 X 88 X 8 mmShips next day	1
	Area Scanner Mounting PlateCE-HW-006-0001 - 150 X 44 X 225 mmShips next day	3
	Tower Light v2CE-LI-001-0000__2 - 39 X 55 X 353 mmShips next day	2
	Digital I/O Module v2CE-MD-001-0000__2 - 150 X 88 X 60 mmShips next day	13
	E-Stop ModuleCE-SA-013-0000 - 133 X 88 X 40 mmShips next day	2
	Robot Safety ModuleCE-SA-016-0001 - 178 X 157 X 135 mmShips next day	2
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	5
	M18 Through-Beam (PNP Receiver & Transmitter) Photo-Electric Sensor (SN = 6000mm)CE-SN-006-0004__2 - 110 X 110 X 30 mmShips next day	8
	Diffuse Keyence PR-G M18 NPN/PNP Sensor (Sn 500)CE-SN-007-0007 - 110 X 110 X 30 mmShips next day	4
	Retro-Reflective Keyence PR-G M18 NPN/PNP Sensor with Mirror (Sn 2900)CE-SN-007-0011 - 110 X 110 X 30 mmShips next day	2
	Pneumatic Actuator NPN Position SensorCE-SN-008-0001__2 - 20 X 5 X 12 mmShips next day	1
	Finger Guard for 200mm Guided Pneumatic CylinderHW-AR-102-0200 - 352 X 172 X 111 mmShips next day	3
	Rubber Bump-StopHW-BP-001-0004 - 20 X 25 X 25 mmShips next day	2
	M8 Extended Length KnobHW-CP-002-0002__2 - 76 X 40 X 40 mmShips next day	1
	Push Pull Toggle ClampHW-CP-003-0001 - 153 X 65 X 89 mmShips next day	4
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	123
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	63
	90x90mm Plastic End Cap, for ExtrusionsHW-EC-005-0001 - 12 X 90 X 90 mmShips next day	2
	20mm Plastic End Caps for Round ExtrusionHW-EC-008-0001 - 11 X 8 X 8 mmShips next day	2
	Ergonomic HandleHW-HD-001-0001__2 - 160 X 30 X 60 mmShips next day	3
	M8 Ratchet Handle 18mmHW-HD-003-0001 - 72 X 19 X 63 mmShips next day	2
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	30
	M14 x 66mm Leveling Foot, with 120mm Diameter BaseHW-LF-002-0000 - 120 X 120 X 100 mmShips next day	4
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	6
	45x270mm Rest Pad HW-RP-002-0002 - 13 X 270 X 45 mmShips next day	10
	90x90mm Rest PadHW-RP-002-0006 - 90 X 90 X 13 mmShips next day	2
	Guided Double-Acting Pneumatic Actuator, 100mm StrokeMO-AR-002-0100 - 198 X 166 X 91 mmShips next day	2
	Guided Double-Acting Pneumatic Actuator, 200mm StrokeMO-AR-002-0200 - 274 X 71 X 133 mmShips next day	1
	Pivoting Double-Acting Pneumatic Actuator, 100mm StrokeMO-AR-003-0100 - 286 X 45 X 68 mmShips next day	1
	Grooved Rollers for Roller Conveyors, 585mmMO-CV-001-0585__3 - 609 X 50 X 50 mmShips next day	3
	457mm x 585mm Dorner 2200 Belt ConveyorMO-CV-006-0585 - 585 X 519 X 47 mmShips in 2 weeks	2
	457mm x 1305mm Dorner 2200 Belt ConveyorMO-CV-006-1305 - 1305 X 519 X 47 mmShips in 2 weeks	1
	457mm x 1530mm Dorner 2200 Belt ConveyorMO-CV-006-1530 - 1530 X 519 X 47 mmShips in 2 weeks	1
	457mm x 1890mm Dorner 2200 Belt ConveyorMO-CV-006-1890 - 1890 X 519 X 47 mmShips in 2 weeks	4
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	30
	Motor Mount for Dorner Belt ConveyorsMO-CV-009-0001 - 233 X 155 X 88 mmShips in 15 days	8
	Single Conveyor Roller Mounting BracketMO-CV-012-0001 - 48 X 45 X 46 mmShips next day	6
	Timing Belt Conveyor V2, 855mm LengthMO-CV-013-0855__2 - 1078 X 67 X 97 mmShips in 3 days	2
	41mm Wide Cable Drag Chain (782mm)MO-DC-001-0765 - 879 X 45 X 35 mmShips next day	2
	71mm Wide Cable Drag Chain (1150mm)MO-DC-002-1125 - 1239 X 74 X 35 mmShips next day	1
	Standard-Duty Box Erector End-of-Arm GripperMO-GR-005-0001 - 475 X 180 X 139 mmShips next day	1

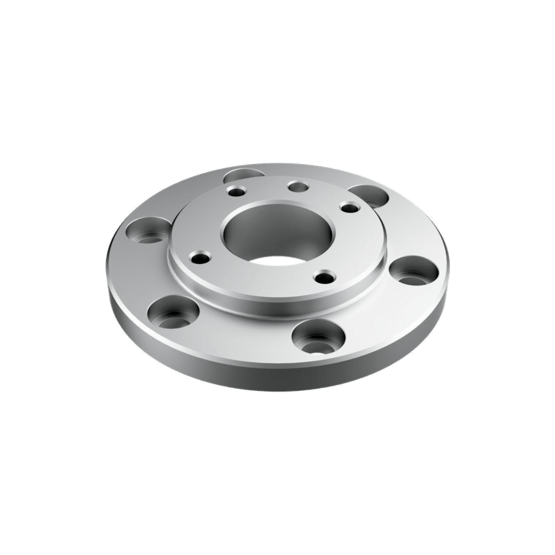

	Flange Adapter for UR20 / UR30 (ISO80 to ISO50)MO-GR-015-0080 - 22 X 100 X 100 mmShips next day	1
	Vention Modular Vacuum Gripper, Medium (75mm Cups)MO-GR-100-1075 - 295 X 295 X 93 mmShips in 3 days	1
	45x45mm Hinge, 8mm PinMO-HG-001-0001 - 27 X 80 X 40 mmShips next day	1
	GF Nylon Eccentric RollerMO-LM-001-0027 - 55 X 55 X 52 mmShips next day	4
	GF Nylon Concentric RollerMO-LM-001-0028 - 52 X 52 X 52 mmShips next day	4
	180x135mm Gantry PlateMO-LM-001-0029 - 135 X 180 X 12 mmShips next day	2
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips next day	2
	45mm Aluminum Profile SliderMO-LM-008-0002 - 90 X 67 X 56 mmShips next day	4
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips next day	8
	16mm Shaft for Linear Bearings (855mm)MO-LM-014-0855__2 - 855 X 35 X 32 mm	2
	16mm Shaft for Linear Bearings (1530mm)MO-LM-014-1530__2 - 1530 X 35 X 32 mmShips next day	2
	Left Timing Belt Sensor BumperMO-LM-015-0001__2 - 102 X 19 X 30 mmShips next day	1
	Right Timing Belt Sensor BumperMO-LM-015-0002__2 - 102 X 19 X 30 mmShips next day	1
	Timing Belt Actuator (1530mm)MO-LM-016-1530__2 - 1710 X 67 X 120 mmShips next day	1
	Belt Rack ActuatorMO-LM-042-0000 - 225 X 135 X 67 mmShips next day	1
	Belt Rack Belt ClampMO-LM-042-0011 - 35 X 50 X 11 mmShips next day	2
	180mm Rack Segment for Belt RackMO-LM-043-0180 - 180 X 6 X 54 mmShips next day	5
	Right Angle Reduction Gearbox, 5:1MO-PT-001-0003 - 183 X 86 X 136 mmShips next day	1
	Right Angle Gearbox, 1:1MO-PT-001-0006 - 152 X 136 X 86 mmShips next day	2
	Power-Off BrakeMO-PT-002-0001 - 100 X 85 X 85 mmShips next day	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips next day	2
	100mm NEMA 34 Stepper Servo MotorMO-SM-012-0000 - 198 X 86 X 112 mmShips next day	2
	1/2 HP AC Motor and VFD Kit, Canada and USAMO-SM-022-0000 - 385 X 215 X 170 mmShips next day	8
	Blickle Swivel Leveling Caster Wheel with Adjustment Wheel, 500kg CapacityMO-WL-003-0002 - 125 X 90 X 104 mmShips next day	16
	Side-Mount Swivel Caster Wheel, 50kg CapacityMO-WL-004-0001 - 230 X 92 X 50 mmShips next day	1
	Datalogic Laser Area Scanner - Parent (stand-alone)PR-DA-001-0489 - 113 X 102 X 151 mmShips next day	1
	Datalogic Laser Area Scanner - ChildPR-DA-001-0582 - 137 X 143 X 163 mmShips next day	4
	Datalogic Laser Area Scanner - 3 OSSD Parent (auto-reset)PR-DA-201-0489 - 113 X 102 X 151 mmShips next day	1
	Vacuum Handling Foam Gripper (Plug & Pick 200 x 400 mm)PR-JL-001-0314 - 90 X 400 X 200 mmShips in 3 weeks	1
	Vacuum Gripper Adapter for Vention Extrusion (Plug & Pick 200x400)PR-JL-001-0335 - 137 X 137 X 51 mmShips in 3 weeks	1
	Keyence Light Curtains - 1465mmPR-KE-001-0004 - 1440 X 32 X 38 mmShips next day	2
	Universal Robots UR20 Collaborative Robot ArmPR-UR-001-0575 - 1000 X 1000 X 500 mmShips next day	1
	Universal Robots UR10e Collaborative Robot ArmPR-UR-010-0000 - 915 X 760 X 485 mmShips in 3 weeks	1
	45x45mm (45mm) Aluminum ExtrusionST-EXT-001-0045 - 45 X 45 X 45 mmShips in 2 days	10
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips in 2 days	2
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips in 2 days	18
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips in 2 days	22
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips in 2 days	7
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips in 2 days	2
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips in 2 days	1
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips in 2 days	11
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips in 2 days	7
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips in 2 days	5
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips in 2 days	7
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips in 2 days	6
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips in 2 days	25
	45x45mm (630mm) Aluminum ExtrusionST-EXT-001-0630 - 630 X 45 X 45 mmShips in 2 days	8
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips in 2 days	5
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips in 2 days	3
	45x45mm (855mm) Aluminum ExtrusionST-EXT-001-0855 - 855 X 45 X 45 mmShips in 2 days	3
	45x45mm (945mm) Aluminum ExtrusionST-EXT-001-0945 - 945 X 45 X 45 mmShips in 2 days	8
	45x45mm (990mm) Aluminum ExtrusionST-EXT-001-0990 - 990 X 45 X 45 mmShips in 2 days	10
	45x45mm (1035mm) Aluminum ExtrusionST-EXT-001-1035 - 1035 X 45 X 45 mmShips in 2 days	3
	45x45mm (1080mm) Aluminum ExtrusionST-EXT-001-1080 - 1080 X 45 X 45 mmShips in 2 days	4
	45x45mm (1800mm) Aluminum ExtrusionST-EXT-001-1800 - 1800 X 45 X 45 mmShips in 2 days	5
	45x45mm (1845mm) Aluminum ExtrusionST-EXT-001-1845 - 1845 X 45 X 45 mmShips in 2 days	5
	45x90mm (90mm) Aluminum ExtrusionST-EXT-002-0090 - 90 X 45 X 90 mmShips next day	2
	45x90mm (180mm) Aluminum ExtrusionST-EXT-002-0180 - 180 X 45 X 90 mmShips next day	2
	45x90mm (225mm) Aluminum ExtrusionST-EXT-002-0225 - 225 X 45 X 90 mmShips next day	1
	45x90mm (315mm) Aluminum ExtrusionST-EXT-002-0315 - 315 X 45 X 90 mmShips next day	1
	45x90mm (405mm) Aluminum ExtrusionST-EXT-002-0405 - 405 X 45 X 90 mmShips next day	1
	45x90mm (495mm) Aluminum ExtrusionST-EXT-002-0495 - 495 X 45 X 90 mmShips next day	3
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	15
	45x90mm (630mm) Aluminum ExtrusionST-EXT-002-0630 - 630 X 45 X 90 mmShips next day	4
	45x90mm (675mm) Aluminum ExtrusionST-EXT-002-0675 - 675 X 45 X 90 mmShips next day	3
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	31
	45x90mm (810mm) Aluminum ExtrusionST-EXT-002-0810 - 810 X 45 X 90 mmShips next day	1
	45x90mm (900mm) Aluminum ExtrusionST-EXT-002-0900 - 900 X 45 X 90 mmShips next day	3
	45x90mm (945mm) Aluminum ExtrusionST-EXT-002-0945 - 945 X 45 X 90 mmShips next day	2
	45x90mm (990mm) Aluminum ExtrusionST-EXT-002-0990 - 990 X 45 X 90 mmShips next day	3
	45x90mm (1080mm) Aluminum ExtrusionST-EXT-002-1080 - 1080 X 45 X 90 mmShips next day	3
	45x90mm (1125mm) Aluminum ExtrusionST-EXT-002-1125 - 1125 X 45 X 90 mmShips next day	1
	45x90mm (1170mm) Aluminum ExtrusionST-EXT-002-1170 - 1170 X 45 X 90 mmShips next day	1
	45x90mm (1530mm) Aluminum ExtrusionST-EXT-002-1530 - 1530 X 45 X 90 mmShips next day	1
	45x90mm (1935mm) Aluminum ExtrusionST-EXT-002-1935 - 1935 X 45 X 90 mmShips next day	2
	45x90mm (2205mm) Aluminum ExtrusionST-EXT-002-2205 - 2205 X 45 X 90 mmShips next day	24
	45x90mm (2295mm) Aluminum ExtrusionST-EXT-002-2295 - 2295 X 45 X 90 mmShips next day	5
	90x90mm (855mm) Aluminum ExtrusionST-EXT-005-0855 - 855 X 90 X 90 mmShips next day	1
	90x90mm (1260mm) Aluminum ExtrusionST-EXT-005-1260 - 1260 X 90 X 90 mmShips next day	2
	90x90mm (1485mm) Aluminum ExtrusionST-EXT-005-1485 - 1485 X 90 X 90 mmShips next day	4
	20mm OD Round (90mm) Aluminum ExtrusionST-EXT-008-0090 - 90 X 20 X 20 mmShips next day	4
	20mm OD Round (180mm) Aluminum ExtrusionST-EXT-008-0180 - 180 X 20 X 20 mmShips next day	9
	20mm OD Round (270mm) Aluminum ExtrusionST-EXT-008-0270 - 270 X 20 X 20 mmShips next day	6
	20mm OD Round (720mm) Aluminum ExtrusionST-EXT-008-0720 - 720 X 20 X 20 mmShips next day	2
	45x45mm (900mm) Light Aluminum ExtrusionST-EXT-101-0900 - 900 X 45 X 45 mmShips next day	2
	45x45mm (945mm) Light Aluminum ExtrusionST-EXT-101-0945 - 945 X 45 X 45 mmShips next day	2
	45x45mm (990mm) Light Aluminum ExtrusionST-EXT-101-0990 - 990 X 45 X 45 mmShips next day	2
	45x45mm (2070mm) Light Aluminum ExtrusionST-EXT-101-2070 - 2070 X 45 X 45 mmShips next day	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	19
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	1
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	5
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	10
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	8
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	8
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	8
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	32
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	14
	2X6 Hole Aluminum Assembly PlateST-GP-001-0014 - 6 X 268 X 88 mmShips next day	1
	1x2 Hole Aluminum Assembly PlateST-GP-001-0016 - 6 X 88 X 43 mmShips in 2 days	4
	60 Degree Joint Aluminum Assembly PlateST-GP-001-0018 - 6 X 160 X 111 mmShips next day	1
	45mm x 45mm In-line Mounting Block for Right Angle ConnectionsST-GP-002-0001__2 - 45 X 45 X 26 mmShips next day	6
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	15
	22.5mm x 45mm Aluminum GussetST-GP-003-0002 - 21 X 22 X 44 mmShips next day	1
	45mm x 90mm Aluminum GussetST-GP-003-0005 - 42 X 44 X 89 mmShips next day	10
	Slotted 45mm x 90mm Aluminum GussetST-GP-003-0008 - 42 X 44 X 89 mmShips next day	2
	3-Way Extrusion End Connector with Panel CutoutsST-GP-004-0001__2 - 49 X 49 X 49 mmShips next day	4
	Round to Round Angle ConnectorST-GP-004-0005 - 47 X 20 X 20 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	324
	45 Degree Inline Connector with LocatorsST-HP-003-0003__2 - 45 X 45 X 5 mmShips next day	8
	90mm x 90mm Aluminum Gusset With LocatorsST-HP-003-0004 - 88 X 88 X 88 mmShips next day	28
	45mm x 90mm Aluminum Gusset with LocatorsST-HP-003-0005 - 89 X 42 X 44 mmShips next day	4
	67.5mm x 67.5mm Aluminum Gusset with LocatorsST-HP-003-0007 - 66 X 66 X 42 mmShips next day	6
	45x90mm 45 Degree Inline Connector with LocatorsST-HP-003-0010 - 90 X 45 X 51 mmShips next day	8
	1X2 Hole Angle Assembly Plate, with LocatorsST-HP-005-0001 - 110 X 43 X 8 mmShips next day	2
	Plastic Coated Steel Wire Mesh Panel, 920 x 965mm, 25mm GridST-PN-002-0004 - 920 X 965 X 6 mmShips next day	3
	Machine Guarding Panel, 2050 x 1000 mmST-PN-002-1000 - 2050 X 1000 X 19 mmShips next day	6
	Machine Guarding Panel, 2050 x 1200 mmST-PN-002-1200 - 2050 X 1200 X 19 mmShips next day	14
	Wear and Protection Strip (Yellow)ST-PN-013-2295__2 - 2295 X 44 X 14 mmShips next day	1
	Flexible Conveyor Guide StripST-PN-020-2295 - 2293 X 43 X 9 mmShips next day	6
	UR Teach Pendant Mounting BracketST-RB-002-0003 - 30 X 223 X 100 mmShips next day	1
	Heavy Duty Cobot Pedestal, 585 mmST-RB-033-0585__2 - 405 X 405 X 585 mmShips in 15 days	1
	Heavy Duty Cobot Pedestal, 945 mmST-RB-033-0945__2 - 405 X 405 X 855 mmShips next day	1
	Rapid Series Palletizer Base for Pedestal w/ Area ScannersST-RB-040-0011 - 1200 X 540 X 600 mmShips in 3 weeks	1
	Multi-Robot Mounting Plate 270 x 270 mmST-RB-100-0270__3 - 268 X 268 X 27 mmShips next day	1
	Machine Guarding Floor Anchoring Mount for 45x90mm and 45x45mm ExtrusionsST-SE-001-0005 - 135 X 83 X 105 mmShips next day	48
	Door HingeST-SE-005-0001 - 67 X 67 X 19 mmShips next day	6
	Right Gate Bolt with InterlockST-SE-006-0001__2 - 233 X 72 X 167 mmShips in 15 days	1
	Round Extrusion HolderST-SP-004-0001__2 - 88 X 44 X 44 mmShips next day	19
	Premium Caster Wheel Mounting Plate for MO-WL-003-0002ST-SP-010-0002 - 90 X 90 X 11 mmShips in 3 weeks	12
	45x90mm Accessory Mounting PlateST-SP-012-0001 - 12 X 88 X 43 mmShips next day	30
	Pallet LocatorST-SP-019-0001__2 - 552 X 57 X 90 mmShips next day	7
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.1215 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.2430 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.1215 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.2430 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 1.0246 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.2840 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.3119 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.4820 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.3848 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.4658 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.3713 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.7654 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.3787 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.4860 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.3787 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.3118 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.5467 m²Ships in 3 days	1
	MO-GR-005-0018IMP-514240_526441 - 404 X 136 X 617 mmShips next day	1
	M8 x 18mm Screw With T-NutHW-FN-001-0018 - 23 X 13 X 22 mmObsolete	5
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	3080
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	32
	M6 Drop-in Spring Loaded T-NutHW-FN-002-0004 - 22 X 13 X 9 mmShips next day	11
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	32
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	49
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	198
	M8 x 16mm ScrewHW-FN-003-0016 - 21 X 13 X 13 mmShips next day	206
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	2315
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	7
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	21
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	49
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	186
	M8 x 35mm ScrewHW-FN-003-0035 - 40 X 13 X 13 mmShips next day	7
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	9
	M8 x 1.25 x 25 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1025 - 33 X 13 X 13 mmShips next day	5
	M8 x 1.25 x 30 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1030 - 38 X 13 X 13 mmShips next day	5
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	62
	M6 x 1.0 x 25 mm, Low Profile Socket HeadHW-FN-005-0025 - 29 X 10 X 10 mmShips next day	17
	M6 X 1.0 Flat Head, 14mm LongHW-FN-005-4014 - 14 X 12 X 12 mmShips next day	11
	M8 1.25 x 16mm Flat Head ScrewHW-FN-015-0016 - 16 X 16 X 16 mmShips next day	60
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	71
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	152
	M10 x 1.5 x 35mm Standard Hex Socket Head, Class 12.9HW-FN-019-0035 - 45 X 16 X 16 mmShips next day	7
	M5-0.8 x 8mm Ball Point Set ScrewHW-FN-022-1008 - 5 X 5 X 8 mmShips next day	9
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	13
	6mm x 10mm Dowel PinHW-FN-036-0010 - 6 X 6 X 10 mmShips next day	2
	8mm x 10mm Undersized Dowel PinHW-FN-038-0010 - 10 X 8 X 8 mmShips next day	2
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	544
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmShips next day	13
	Extrusion T-slot Cover, 180mmST-PN-019-0180 - 180 X 16 X 6 mmShips in 2 days	120
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips next day	4
	MachineMotion Pendant V3CE-TP-014-0000 - 332 X 68 X 246 mmShips next day	1
	Butt-Joint Extrusion ConnectorHW-FN-002-0005 - 148 X 13 X 7 mmShips next day	8
	Slotted Floor Anchoring Mount for 45x45mm, 45x90mm, and 90x90mm ExtrusionsHW-LF-001-0004 - 200 X 39 X 87 mmShips next day	52
	Panel RetainersST-PN-007-0001 - 23 X 45 X 87 mmShips next day	12
	Vention Pendant V3 Machine MountST-RB-002-0005 - 143 X 178 X 128 mmShips next day	1

Ready to Operate Support BundleEnd of Line Packaging Solution - Full Deployment

Full Deployment Bundles provide end-to-end deployment support for select Vention applications.

The bundle for End of Line Solution includes:

Design validation & customization
Pre-assembly & Factory Acceptance Test
Site Acceptance Test & commissioning.

This ensures the delivery of a functional box eretor, case pacher and palletizer solution that performs according to the requirements defined in a project scope, from gripper validation to rate to operator functionality.

^$427,832^{.21 USD}

All parts available

Preview in 3D Add to project Share this design

Similar Parts

Software

Hardware

Turnkey Applications

Click & Customize

Shop Vention

Resources

Support

Vention in Action

Community

End of Line Automated Packaging System

End of Line Automated Packaging System

Specifications

Documents

Bill of Materials

Ready to Operate
