MO-HG-001-0001

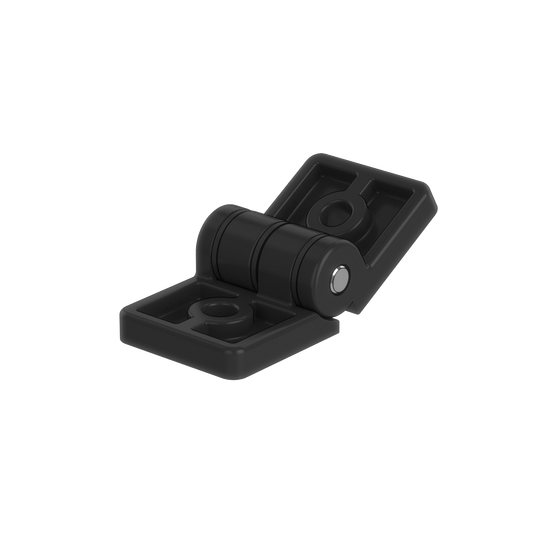

45x45mm Hinge, 8mm Pin
Medium-duty hinges best suited for light to medium-rotary motion. Can be mounted on Vention extrusions, benefiting from Vention V-shape locator.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | MO-HG-001-0001 |
| Unit Price | $23.66 USD |
| Weight | 0.091 kg |
| Dimensions (L x W x H) | 27 x 80 x 40 mm |
| Material | Die-cast aluminum |
| Surface Finish | Black powder coat |
| Associated Fasteners | 2 x HW-FN-002-0001, 2 x HW-FN-003-0018 |
| Spec Attribute | Spec Value |
|---|---|
| Technical Specifications | |
| Angular Range | 180 degrees |
