Case Packer With Infeed And Outfeed [Turnkey]

Vention official

This Vention packing system automates your end of line packaging process, featuring a gantry robot around a t-slot aluminum structure with conveyor infeed and outfeed. Designed for products to arrive to a vacuum gripping station where they are picked, boxed and moved to a final line at higher output rates than manual processes. The machine system comes as a full turnkey solution, including the MachineApp software for controls, a gantry robot, conveyors, a vacuum-based gripper and deployment on-site. The case packer can be integrated upstream of a Cobot Palletizer.

Spec Attribute	Spec Value
Technical Specifications
Numéro de conception	PZ-CP-259373
Poids	807.91 kg
Dimensions (L x l x H)	4555 x 2597 x 2657 mm
Application	Packaging
Temps d’assemblage	65:34

Spec Attribute	Spec Value
Documentation
Instructions d’assemblage
Calculateur de ROI
Modèle 3D

Parts	Description	Quantity
Parts		Qty
	Pneumatic Air Preparation Station, EuropeCA-AP-001-0001__2 - 214 X 203 X 98 mmShips next day	2
	4-Valve Pneumatic ManifoldCA-CO-001-0004__3 - 200 X 176 X 77 mmShips next day	2
	On/Off Pneumatic Valve, Normally ClosedCE-AR-002-0000__3 - 157 X 115 X 38 mmShips next day	1
	M12 End-Stop Extension Cable, 5mCE-CA-018-5000 - 30 X 110 X 110 mmShips in 3 weeks	4
	MachineMotion Control Device Extension Cable, 0.4mCE-CA-022-0400 - 187 X 154 X 20 mmShips in 4 weeks	8
	M12 Cable for Digital I/O Module v2 - Female to 3x Female (5m)CE-CA-051-5000 - 110 X 110 X 30 mmShips in 4 weeks	5
	MachineMotion Safety Extension Cable - 5mCE-CA-102-5001__2 - 0 X 0 X 0 mmShips next day	4
	Motor Cable Extension MachineMotion AI - 5mCE-CA-402-0500 - 300 X 300 X 60 mmShips in 4 weeks	2
	MachineMotion AICE-CL-030-1500 - 470 X 337 X 206 mmShips in 4 weeks	1
	Sensor and Reflector BracketCE-HW-001-0003__3 - 43 X 44 X 37 mmShips next day	20
	Tower Light v2CE-LI-001-0000__2 - 39 X 55 X 353 mmShips next day	1
	Digital I/O Module v2CE-MD-001-0000__2 - 150 X 88 X 60 mmShips in 3 weeks	8
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	4
	M18 Through-Beam (NPN Receiver & Transmitter) Photo-Electric Sensor (SN = 6000mm)CE-SN-006-0001__2 - 110 X 110 X 30 mmShips next day	3
	M18 Through-Beam (PNP Receiver & Transmitter) Photo-Electric Sensor (SN = 6000mm)CE-SN-006-0004__2 - 110 X 110 X 30 mmShips next day	6
	MachineApps - Case PackerCE-SW-002-0011 - 0 X 0 X 0 mmObsolete	1
	Finger Guard for 200mm Guided Pneumatic CylinderHW-AR-102-0200 - 352 X 172 X 111 mmShips in 7 days	2
	Rubber Bump-StopHW-BP-001-0004 - 20 X 25 X 25 mmShips next day	2
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	61
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	28
	90x90mm Plastic End Cap, for ExtrusionsHW-EC-005-0001 - 12 X 90 X 90 mmShips next day	2
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	18
	M14 x 66mm Leveling Foot, with 120mm Diameter BaseHW-LF-002-0000 - 120 X 120 X 100 mmShips next day	6
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	4
	45x270mm Rest Pad HW-RP-002-0002 - 13 X 270 X 45 mmShips next day	5
	90x90mm Rest PadHW-RP-002-0006 - 90 X 90 X 13 mmShips next day	2
	Extrusion Tapping KitHW-TL-001-0000 - 320 X 225 X 35 mmShips next day	1
	14oz Grease Gun KitHW-TL-005-0000 - 400 X 150 X 75 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	100
	Multi-Purpose Grease LB 8034, 14oz TubeIN-CS-002-0001 - 235 X 54 X 54 mmShips in 2 days	1
	Guided Double-Acting Pneumatic Actuator, 100mm StrokeMO-AR-002-0100 - 198 X 166 X 91 mmShips in 3 days	2
	Guided Double-Acting Pneumatic Actuator, 200mm StrokeMO-AR-002-0200 - 274 X 71 X 133 mmShips next day	1
	Pivoting Double-Acting Pneumatic Actuator, 100mm StrokeMO-AR-003-0100 - 286 X 45 X 68 mmShips next day	1
	457mm x 585mm Dorner 2200 Belt ConveyorMO-CV-006-0585 - 585 X 519 X 47 mmShips in 2 weeks	2
	457mm x 1305mm Dorner 2200 Belt ConveyorMO-CV-006-1305 - 1305 X 519 X 47 mmShips in 2 weeks	1
	457mm x 1530mm Dorner 2200 Belt ConveyorMO-CV-006-1530 - 1530 X 519 X 47 mmShips in 4 days	1
	457mm x 1890mm Dorner 2200 Belt ConveyorMO-CV-006-1890 - 1890 X 519 X 47 mmShips in 2 weeks	1
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	18
	Motor Mount for Dorner Belt ConveyorsMO-CV-009-0001 - 233 X 155 X 88 mmShips in 15 days	5
	41mm Wide Cable Drag Chain (876mm)MO-DC-041-0876 - 876 X 41 X 35 mmShips in 2 days	1
	73mm Wide Cable Drag Chain (1612mm)MO-DC-073-1612 - 1612 X 73 X 35 mmShips in 2 days	1
	45x45mm Hinge, 8mm PinMO-HG-001-0001 - 27 X 80 X 40 mmShips next day	1
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips next day	2
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips next day	8
	16mm Shaft for Linear Bearings (855mm)MO-LM-014-0855__2 - 855 X 35 X 32 mm	2
	16mm Shaft for Linear Bearings (1530mm)MO-LM-014-1530__2 - 1530 X 35 X 32 mmShips next day	2
	Left Timing Belt Sensor BumperMO-LM-015-0001__2 - 102 X 19 X 30 mmShips next day	1
	Right Timing Belt Sensor BumperMO-LM-015-0002__2 - 102 X 19 X 30 mmShips next day	1
	Timing Belt Actuator (1530mm)MO-LM-016-1530__2 - 1710 X 67 X 120 mmShips next day	1
	Belt Rack ActuatorMO-LM-042-0000 - 225 X 135 X 67 mmShips next day	1
	Belt Rack Belt ClampMO-LM-042-0011 - 35 X 50 X 11 mmShips next day	2
	180mm Rack Segment for Belt RackMO-LM-043-0180 - 180 X 6 X 54 mmShips next day	5
	Right Angle Reduction Gearbox, 5:1MO-PT-001-0003 - 183 X 86 X 136 mmShips next day	1
	MachineMotion AI Power-Off BrakeMO-PT-006-0001 - 100 X 85 X 85 mmShips in 4 weeks	1
	1/2 HP AC Motor and VFD Kit, Canada and USAMO-SM-022-0000 - 385 X 215 X 170 mmShips in 4 days	5
	MachineMotion AI NEMA 34 Stepper Servo Motor - 157mmMO-SM-030-0003 - 360 X 86 X 103 mmShips in 4 weeks	2
	Vacuum Handling Foam Gripper (Plug & Pick 200 x 400 mm)PR-JL-001-0314 - 90 X 400 X 200 mmShips in 3 weeks	1
	Vacuum Gripper Adapter for Vention Extrusion (Plug & Pick 200x400)PR-JL-001-0335 - 137 X 137 X 51 mmShips in 3 weeks	1
	45x45mm (45mm) Aluminum ExtrusionST-EXT-001-0045 - 45 X 45 X 45 mmShips in 7 days	3
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips in 7 days	12
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips in 7 days	14
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips in 7 days	1
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips in 7 days	2
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips in 7 days	6
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips in 7 days	7
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips in 7 days	1
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips in 7 days	14
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips in 7 days	6
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips in 7 days	11
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips in 7 days	1
	45x45mm (945mm) Aluminum ExtrusionST-EXT-001-0945 - 945 X 45 X 45 mmShips in 7 days	1
	45x45mm (1080mm) Aluminum ExtrusionST-EXT-001-1080 - 1080 X 45 X 45 mmShips in 7 days	5
	45x45mm (1170mm) Aluminum ExtrusionST-EXT-001-1170 - 1170 X 45 X 45 mmShips in 7 days	2
	45x45mm (1350mm) Aluminum ExtrusionST-EXT-001-1350 - 1350 X 45 X 45 mmShips in 7 days	4
	45x45mm (1800mm) Aluminum ExtrusionST-EXT-001-1800 - 1800 X 45 X 45 mmShips in 7 days	3
	45x45mm (1845mm) Aluminum ExtrusionST-EXT-001-1845 - 1845 X 45 X 45 mmShips in 7 days	3
	45x45mm (1890mm) Aluminum ExtrusionST-EXT-001-1890 - 1890 X 45 X 45 mmShips in 7 days	1
	45x45mm (2295mm) Aluminum ExtrusionST-EXT-001-2295 - 2295 X 45 X 45 mmShips in 7 days	2
	45x90mm (90mm) Aluminum ExtrusionST-EXT-002-0090 - 90 X 45 X 90 mmShips next day	1
	45x90mm (225mm) Aluminum ExtrusionST-EXT-002-0225 - 225 X 45 X 90 mmShips next day	1
	45x90mm (540mm) Aluminum ExtrusionST-EXT-002-0540 - 540 X 45 X 90 mmShips next day	4
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	9
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	18
	45x90mm (945mm) Aluminum ExtrusionST-EXT-002-0945 - 945 X 45 X 90 mmShips next day	1
	45x90mm (1080mm) Aluminum ExtrusionST-EXT-002-1080 - 1080 X 45 X 90 mmShips next day	1
	45x90mm (1125mm) Aluminum ExtrusionST-EXT-002-1125 - 1125 X 45 X 90 mmShips next day	1
	45x90mm (1485mm) Aluminum ExtrusionST-EXT-002-1485 - 1485 X 45 X 90 mmShips next day	2
	45x90mm (1530mm) Aluminum ExtrusionST-EXT-002-1530 - 1530 X 45 X 90 mmShips next day	1
	45x90mm (1890mm) Aluminum ExtrusionST-EXT-002-1890 - 1890 X 45 X 90 mmShips next day	1
	45x90mm (2295mm) Aluminum ExtrusionST-EXT-002-2295 - 2295 X 45 X 90 mmShips next day	5
	90x90mm (855mm) Aluminum ExtrusionST-EXT-005-0855 - 855 X 90 X 90 mmShips next day	1
	90x90mm (1260mm) Aluminum ExtrusionST-EXT-005-1260 - 1260 X 90 X 90 mmShips next day	2
	90x90mm (1485mm) Aluminum ExtrusionST-EXT-005-1485 - 1485 X 90 X 90 mmShips next day	4
	20mm OD Round (180mm) Aluminum ExtrusionST-EXT-008-0180 - 180 X 20 X 20 mmShips next day	6
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	15
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	2
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	4
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	22
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	4
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	4
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	16
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	4
	60 Degree Joint Aluminum Assembly PlateST-GP-001-0018 - 6 X 160 X 111 mmShips next day	1

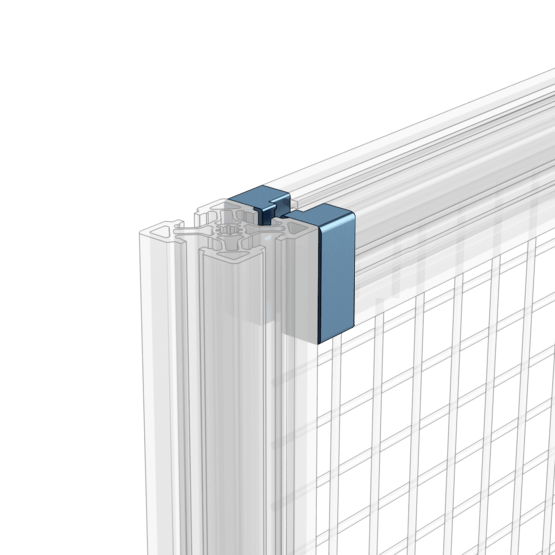

	45mm x 45mm Door SpacerST-GP-002-0006__2 - 23 X 45 X 45 mmShips next day	4
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	10
	45mm x 90mm Aluminum GussetST-GP-003-0005 - 42 X 44 X 89 mmShips next day	8
	Two-Way Extended Door ConnectorST-GP-004-0006__2 - 83 X 45 X 45 mmShips next day	16
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	188
	90mm x 90mm Aluminum Gusset With LocatorsST-HP-003-0004 - 88 X 88 X 88 mmShips next day	10
	45mm x 90mm Aluminum Gusset with LocatorsST-HP-003-0005 - 89 X 42 X 44 mmShips next day	2
	Flexible Conveyor Guide StripST-PN-020-2295 - 2293 X 43 X 9 mmShips next day	5
	Door HingeST-SE-005-0001 - 67 X 67 X 19 mmShips next day	12
	Right Gate Bolt with InterlockST-SE-006-0001__2 - 233 X 72 X 167 mmShips in 15 days	1
	Left Gate Bolt with InterlockST-SE-006-1001__2 - 233 X 72 X 167 mmShips next day	1
	Round Extrusion HolderST-SP-004-0001__2 - 88 X 44 X 44 mmShips next day	6
	45x90mm Accessory Mounting PlateST-SP-012-0001 - 12 X 88 X 43 mmShips next day	18
	HDPE Panel, White 1/8'' [3.18mm]ST-PN-001-0006 - 0.7898 m²Ships in 3 days	1
	HDPE Panel, White 1/8'' [3.18mm]ST-PN-001-0006 - 0.7898 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.7371 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 1.3952 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 1.3952 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.2818 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.2818 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.3881 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.3881 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.3881 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.3881 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.6055 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 1.1583 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 1.0003 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.9639 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.1612 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.4602 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.1612 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.1612 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.1612 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.9087 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 0.6197 m²Ships in 3 days	1
	M8 x 18mm Screw With T-NutHW-FN-001-0018 - 23 X 13 X 22 mmObsolete	5
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	1630
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	19
	M6 Drop-in Spring Loaded T-NutHW-FN-002-0004 - 22 X 13 X 9 mmShips next day	11
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	3
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	26
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	97
	M8 x 16mm ScrewHW-FN-003-0016 - 21 X 13 X 13 mmShips next day	177
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	1224
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	9
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	9
	M8 x 50mm ScrewHW-FN-003-0050 - 55 X 13 X 13 mmShips next day	34
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	9
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	38
	M6 x 1.0 x 25 mm, Low Profile Socket HeadHW-FN-005-0025 - 29 X 10 X 10 mmShips next day	11
	M6 1.0 x 12mm Flat Head ScrewHW-FN-005-4012 - 12 X 12 X 12 mmShips next day	9
	M6 X 1.0 Flat Head, 14mm LongHW-FN-005-4014 - 14 X 12 X 12 mmShips next day	11
	M8 1.25 x 16mm Flat Head ScrewHW-FN-015-0016 - 16 X 16 X 16 mmShips next day	65
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	64
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	62
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	11
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	158
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips in 3 weeks	3
	MachineMotion Pendant V3CE-TP-014-0000 - 332 X 68 X 246 mmShips in 3 weeks	1
	Slotted Floor Anchoring Mount for 45x45mm, 45x90mm, and 90x90mm ExtrusionsHW-LF-001-0004 - 200 X 39 X 87 mmShips next day	39
	5mm x 250mm Cable Tie (bag of 25) HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	4
	Vention Pendant V3 Machine MountST-RB-002-0005 - 143 X 178 X 128 mmShips next day	1

Forfait d’assistance Ready to Operate2023 Case Packer - Fenced - Full Deployment

Full Deployment Bundles provide end-to-end deployment support for select Vention applications.

The bundle for Case Packer includes:

Design validation & customization
Pre-assembly & Factory Acceptance Test
Site Acceptance Test & commissioning.

This ensures the delivery of a functional case packer that performs according to the requirements defined in a project scope, from gripper validation to case packing rate to operator functionality.

^$148,629^{.36 USD}

Aperçu en 3D Ajouter au projet Partager cette conception

Pièces similaires

Logiciel

Matériel

Applications clé en main

Cliquez & Personnalisez

Boutique Vention

Resources

Assistance

Vention en action

Communauté

Case Packer With Infeed And Outfeed [Turnkey]

Case Packer With Infeed And Outfeed [Turnkey]

Spécifications

Documents

Nomenclature

Prêt à fonctionner
