UR8L Multi Welding Table 7th Axis Welding Cell

Vention official

This design features a multi-welding table workstation with integrated 7th-axis motion for the UR Robots UR8L collaborative robot. The setup includes multiple 48″ × 30″ welding tabletops with a 5/8″-hole grid, a heavy-duty overhead rack-and-pinion 7th-axis actuator mounted on a rigid T-slot aluminum frame, mounting provisions for the UR8L, and comprehensive structural and motion-hardware ready for deployment. Designed for high-throughput welding cells with flexibility and precision, it supports complex fixturing and enhanced reach via the 7th axis. Overall dimensions are approximately 2886 × 3698 × 2034 mm, with a total weight of about 1266 kg. All components shown are included.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-WD-403971
Weight	1266.01 kg
Dimensions (L x W x H)	2886 x 3698 x 2034 mm
Application	Manufacturing
Assembly Time	46:11

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 2 - One DriveCE-CL-010-0001 - 392 X 293 X 150 mmShips in 8 days	1
	Robot Safety ModuleCE-SA-016-0001 - 178 X 157 X 135 mmShips next day	1
	Flush Inductive Proximity SensorCE-SN-004-0003 - 189 X 158 X 32 mmShips next day	2
	URCap for MachineMotionCE-SW-002-0003 - 40 X 10 X 5 mmShips next day	1
	High Strength Threadlocker (10 ml)HW-CS-001-0003 - 29 X 29 X 91 mmShips next day	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	6
	90x90mm Plastic End Cap, for ExtrusionsHW-EC-005-0001 - 12 X 90 X 90 mmShips next day	6
	M14 x 66mm Leveling Foot, with 120mm Diameter BaseHW-LF-002-0000 - 120 X 120 X 100 mmShips next day	30
	Extrusion Tapping KitHW-TL-001-0000 - 320 X 225 X 35 mmShips next day	1
	14oz Grease Gun KitHW-TL-005-0000 - 400 X 150 X 75 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	25
	Multi-Purpose Grease LB 8034, 14oz TubeIN-CS-002-0001 - 235 X 54 X 54 mmShips next day	1
	41mm Wide Cable Drag Chain (1518mm)MO-DC-001-1485 - 1599 X 45 X 35 mmShips next day	1
	Heavy Duty Enclosed Timing Belt Actuator, 2295mm LengthMO-LM-027-2295__2 - 2542 X 270 X 112 mmShips in 3 days	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips next day	1

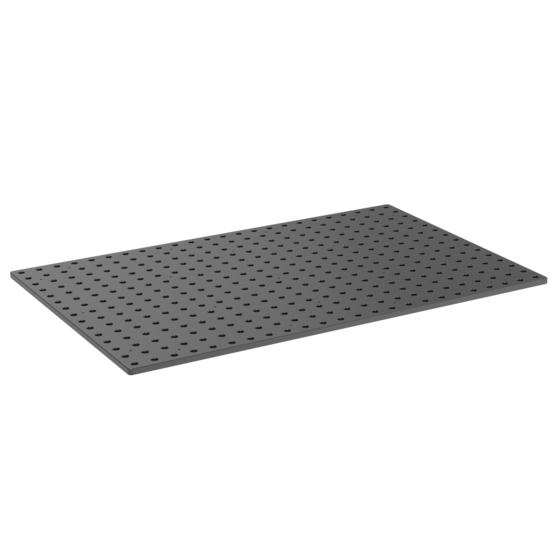

	Strong Hand Tool 48'' x 30'' Welding Table Top with 5/8'' HolesPR-SH-001-0001 - 1219 X 762 X 76 mmShips in 9 days	6
	Smooth Robotics SmoothTool for UR3e - UR16ePR-SR-001-0001 - 110 X 175 X 80 mmShips next day	1
	Universal Robots UR20 Collaborative Robot ArmPR-UR-001-0575 - 1000 X 1000 X 500 mmShips next day	1
	Universal Robots UR8L Collaborative Robot ArmPR-UR-008-0000 - 1000 X 1000 X 500 mm	1
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips next day	2
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips next day	12
	45x45mm (900mm) Aluminum ExtrusionST-EXT-001-0900 - 900 X 45 X 45 mmShips next day	12
	45x45mm (990mm) Aluminum ExtrusionST-EXT-001-0990 - 990 X 45 X 45 mmShips next day	1
	45x45mm (2295mm) Aluminum ExtrusionST-EXT-001-2295 - 2295 X 45 X 45 mmShips next day	1
	45x90mm (135mm) Aluminum ExtrusionST-EXT-002-0135 - 135 X 45 X 90 mmShips next day	8
	45x90mm (450mm) Aluminum ExtrusionST-EXT-002-0450 - 450 X 45 X 90 mmShips next day	12
	45x90mm (900mm) Aluminum ExtrusionST-EXT-002-0900 - 900 X 45 X 90 mmShips next day	12
	45x90mm (2295mm) Aluminum ExtrusionST-EXT-002-2295 - 2295 X 45 X 90 mmShips next day	1
	90x90mm (450mm) Aluminum ExtrusionST-EXT-005-0450 - 450 X 90 X 90 mmShips next day	3
	90x90mm (765mm) Aluminum ExtrusionST-EXT-005-0765 - 765 X 90 X 90 mmShips next day	24
	90x90mm (990mm) Aluminum ExtrusionST-EXT-005-0990 - 990 X 90 X 90 mmShips next day	3
	Tee Joint Aluminum Assembly PlateST-GP-001-0011 - 6 X 268 X 178 mmShips next day	4
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	4
	2X2 Hole Aluminum Assembly Plate, For 22.5mm to 45mm ExtrusionsST-GP-001-0022 - 6 X 65 X 6 mmShips next day	11
	45mm x 90mm In-Line Mounting Block for Right Angle Connections ST-GP-002-0004 - 90 X 45 X 22 mmShips next day	8
	90mm x 90mm In-Line Mounting Block for Right Angle ConnectionsST-GP-002-0005 - 90 X 90 X 22 mmShips next day	6
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	192
	90mm x 90mm Aluminum Gusset With LocatorsST-HP-003-0004 - 88 X 88 X 88 mmShips next day	18
	UR Control Box Mounting BracketST-RB-002-0001__2 - 12 X 450 X 130 mmShips next day	1

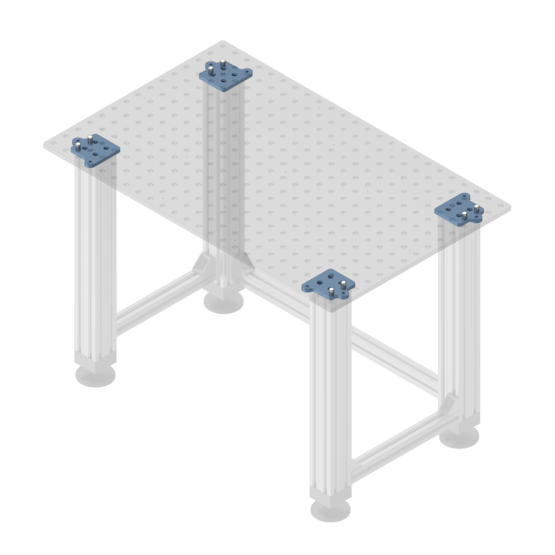

	Leg Adaptor Plates for 5/8" Welding TableST-RB-053-0002 - 133 X 146 X 48 mmShips next day	6

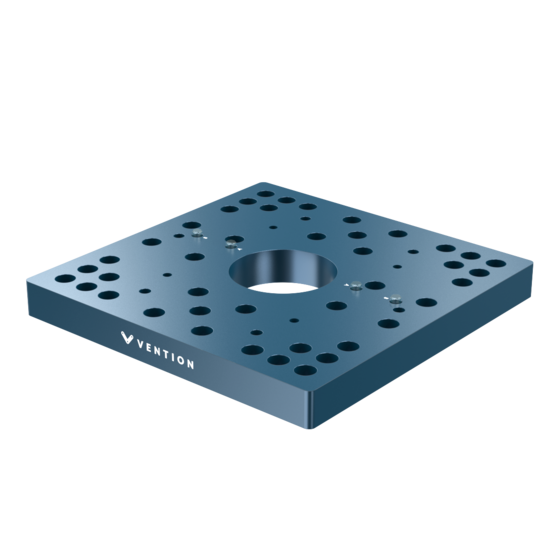

	Multi-Robot Mounting Plate 270 x 270 mmST-RB-100-0270__3 - 268 X 268 X 27 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	1021
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	2
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	26
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	5
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	19
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	856
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	13
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	73
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	58
	M8 x 35mm Screw, Partially ThreadedHW-FN-003-0035 - 35 X 13 X 40 mmShips next day	42
	M8-1.25 x 25mm Flat Head ScrewHW-FN-015-0025 - 25 X 16 X 16 mmShips next day	51
	M8-1.25 x 40mm Flat Head ScrewHW-FN-015-0040 - 40 X 16 X 16 mmShips next day	99
	M10 x 1.5 x 25mm Standard Hex Socket Head, Class 12.9HW-FN-019-0025 - 35 X 16 X 16 mmShips next day	7
	M10 x 1.5 x 35mm Standard Hex Socket Head, Class 12.9HW-FN-019-0035 - 45 X 16 X 16 mmShips next day	13
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	13
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	19
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips next day	1
	Slotted Floor Anchoring Mount for 45x45mm, 45x90mm, and 90x90mm ExtrusionsHW-LF-001-0004 - 200 X 39 X 87 mmShips next day	6
	5mm x 250mm Cable Tie (Bag of 25)HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	1
