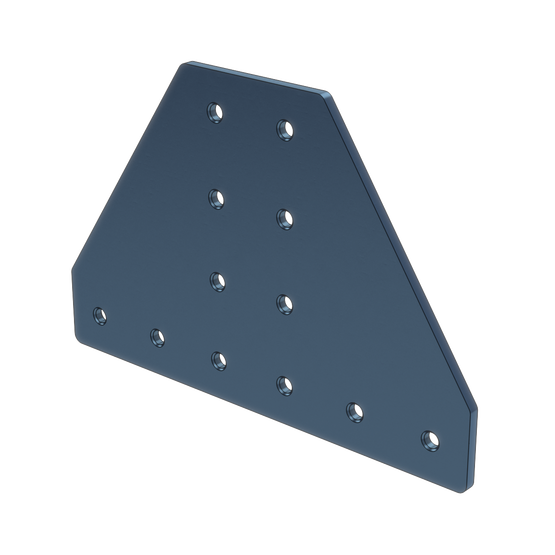

Tee Joint Aluminum Assembly Plate
$36.14 USD
Ships next day
Vention’s general assembly plates are designed to be combined with Vention’s extrusions to maximize ease of assembly and lower costs. These plates are available in a variety of configurations, supporting all sorts of structural assemblies.
Included fasteners:
12 x
HW-FN-002-0001
12 x
HW-FN-003-0018
QTY:
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | ST-GP-001-0011 |
| Weight | 0.567 kg |
| Dimensions (L x W x H) | 6.0 x 268.0 x 178.0 mm |
| Unit Price | $36.14 USD |
| Material | 6061-T6 |
| Surface finish | Dark blue anodized, 6um |
| Associated Fasteners | 12 x HW-FN-002-0001 , 12 x HW-FN-003-0018 |
| Light-Duty Fasteners | 12 x HW-FN-002-0001 , 12 x HW-FN-003-0012 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | ST-GP-001-0011 |
| Weight | 0.567 kg |
| Dimensions (L x W x H) | 6.0 x 268.0 x 178.0 mm |
| Unit Price | $36.14 USD |
| Material | 6061-T6 |
| Surface finish | Dark blue anodized, 6um |
| Associated Fasteners | 12 x HW-FN-002-0001 , 12 x HW-FN-003-0018 |
| Light-Duty Fasteners | 12 x HW-FN-002-0001 , 12 x HW-FN-003-0012 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|
Compatible Parts
90x90mm (585mm) Aluminum Extrusion
ST-EXT-005-0585
45x45mm (585mm) Aluminum Extrusion
ST-EXT-001-0585
45x90mm (585mm) Aluminum Extrusion
ST-EXT-002-0585
