A Challenge to Challenge you

Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-CV-415047
Weight	419.60 kg
Dimensions (L x W x H)	3335 x 2985 x 2190 mm
Application	Material Handling
Assembly Time	21:32

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty

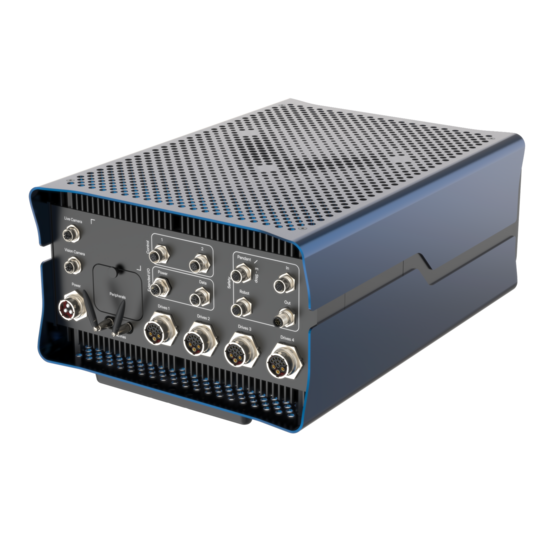

	MachineMotion AI ProCE-CL-031-3000 - 470 X 337 X 206 mmShips in 4 weeks	1
	Sensor and Reflector BracketCE-HW-001-0003__3 - 43 X 44 X 37 mmShips next day	5
	Digital I/O Module v2CE-MD-001-0000__2 - 150 X 88 X 60 mmShips next day	2
	Flush Inductive Proximity SensorCE-SN-004-0003 - 189 X 158 X 32 mmShips next day	4
	Diffuse Keyence PR-G M18 NPN/PNP Sensor (Sn 500)CE-SN-007-0007 - 110 X 110 X 30 mmShips next day	5
	Guided Double-Acting Pneumatic Actuator with Pinch Guarding, 300mm StrokeHW-AR-102-0300 - 423 X 178 X 67 mmShips next day	2
	Guided Double-Acting Pneumatic Actuator with Pinch Guarding, 400mm StrokeHW-AR-102-0400 - 523 X 178 X 67 mmShips next day	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	2
	45x270mm Rest Pad HW-RP-002-0002 - 13 X 270 X 45 mmShips next day	2
	457mm x 1125mm Dorner 2200 Belt ConveyorMO-CV-006-1125 - 1125 X 519 X 47 mmShips next day	2
	457mm x 1890mm Dorner 2200 Belt ConveyorMO-CV-006-1890 - 1890 X 519 X 47 mmShips in 2 weeks	1
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	14
	Motor Mount for Dorner Belt ConveyorsMO-CV-009-0001 - 233 X 155 X 88 mmShips next day	3
	Heavy Duty Enclosed Timing Belt Actuator, 855mm LengthMO-LM-027-0855__2 - 1102 X 270 X 112 mmShips in 8 days	1
	Heavy Duty Enclosed Timing Belt Actuator, 1530mm LengthMO-LM-027-1530__2 - 1777 X 270 X 112 mmShips in 3 days	1
	Rotary Actuator V2 with Sensor ProvisionMO-RM-002-0001__3 - 223 X 223 X 113 mmShips next day	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips next day	5
	100mm NEMA 34 Stepper Servo MotorMO-SM-012-0000 - 198 X 86 X 112 mmShips next day	1
	FANUC CRX-10iA/L Collaborative Robot ArmPR-FA-001-0500 - 1168 X 1118 X 610 mmShips in 7 weeks	1
	Light Vacuum Gripper (Safe-and-Light 120 x 240 mm)PR-JL-001-0490 - 130 X 250 X 90 mmShips in 3 weeks	2
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips next day	7
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips next day	7
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	3
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips next day	4
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips next day	1
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips next day	1
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips next day	10
	45x45mm (630mm) Aluminum ExtrusionST-EXT-001-0630 - 630 X 45 X 45 mmShips next day	17
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	2
	45x90mm (270mm) Aluminum ExtrusionST-EXT-002-0270 - 270 X 45 X 90 mmShips next day	6
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	10
	45x90mm (630mm) Aluminum ExtrusionST-EXT-002-0630 - 630 X 45 X 90 mmShips next day	7
	90x90mm (225mm) Aluminum ExtrusionST-EXT-005-0225 - 225 X 90 X 90 mmShips next day	3
	90x90mm (1395mm) Aluminum ExtrusionST-EXT-005-1395 - 1395 X 90 X 90 mmShips next day	2
	1x2 Hole Aluminum Assembly PlateST-GP-001-0016 - 6 X 88 X 43 mmShips next day	4
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	4
	45mm x 90mm Aluminum GussetST-GP-003-0005 - 42 X 44 X 89 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	96
	90mm x 90mm Aluminum Gusset With LocatorsST-HP-003-0004 - 88 X 88 X 88 mmShips next day	7
	Cobot Tooling Mounting PlateST-RB-001-0001__2 - 67 X 112 X 15 mmShips next day	1
	OnRobot Tool Changer (Robot Side)ST-RB-028-0004 - 84 X 84 X 14 mmShips next day	1
	OnRobot 3FG15 3-finger GripperST-RB-028-0009 - 156 X 158 X 180 mmShips next day	1
	Dual Joulin Safe and Light Cobot AdapterST-RB-030-0000 - 300 X 128 X 92 mmShips in 3 days	1
	Heavy Duty Cobot Pedestal, 585 mmST-RB-033-0585__2 - 405 X 405 X 585 mmShips next day	1
	M5 Split Lock WasherCE-WS-005-0005 - 80 X 30 X 14 mmShips next day	12
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	392
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	15
	M5 Drop-in Spring Loaded T-NutHW-FN-002-0006 - 22 X 13 X 7 mmShips in 2 days	13
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	3
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	40
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	314
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	26
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	13
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	3
	M8 x 1.25 x 35 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1035 - 43 X 13 X 13 mmShips next day	5
	M8 x 1.25 x 40 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1040 - 48 X 13 X 13 mmShips next day	5
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	30
	M6 x 1.0 x 25 mm, Low Profile Socket HeadHW-FN-005-0025 - 29 X 10 X 10 mmShips next day	7
	M5-0.8 x 50mm Socket Head Cap ScrewHW-FN-008-0050 - 55 X 9 X 9 mmShips next day	13
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	26
	6mm x 10mm Dowel PinHW-FN-036-0010 - 6 X 6 X 10 mmShips next day	2
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	30
