Robot Sorting Station - Double SCARA Robots

Vention official

Enclosed robot cell designed for Pick and Place operations to move product from a conveyor line into different lines. This is done with two EPSON T6 SCARA robots placed on opposite sides of the cell. Automate your manufacturing needs with this modular and cost effective set up.

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-PP-291439
Weight	704.67 kg
Dimensions (L x W x H)	3661 x 5231 x 2239 mm
Application	Assembly
Assembly Time	33:54

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty

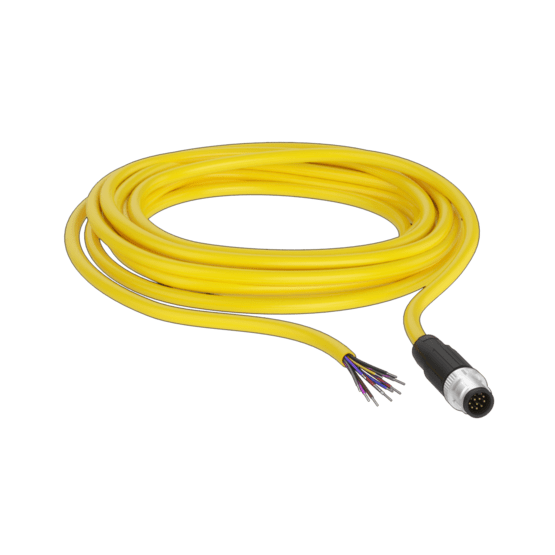

	MachineMotion 2 Safety IN Pigtail Cable - 2mCE-CA-105-2000 - 187 X 144 X 30 mmShips next day	1

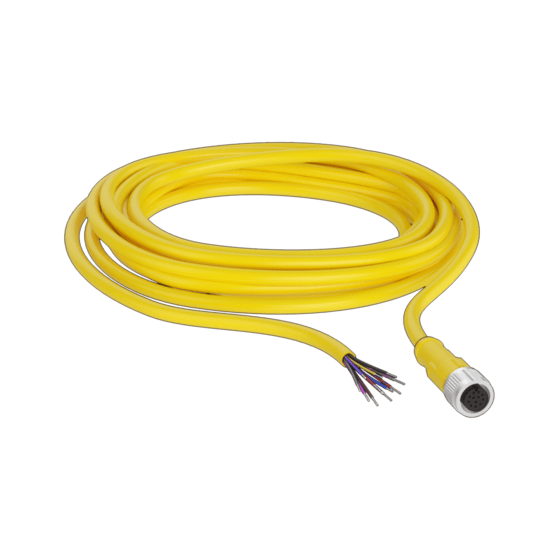

	MachineMotion 2 Safety OUT Pigtail Cable - 2mCE-CA-106-2000 - 175 X 160 X 38 mmShips in 3 weeks	1
	VFD for Dorner3200 AC Motor, Canada and USACE-MD-007-1001 - 0 X 0 X 0 mmShips next day	3
	E-Stop ModuleCE-SA-013-0000 - 133 X 88 X 40 mmShips next day	2
	High Strength Threadlocker (10 ml)HW-CS-001-0003 - 29 X 29 X 91 mmShips next day	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	18
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips in 6 days	34
	20mm Plastic End Caps for Round ExtrusionHW-EC-008-0001 - 11 X 8 X 8 mmShips next day	45
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	24
	90x90mm Rest PadHW-RP-002-0006 - 90 X 90 X 13 mmShips next day	1
	Extrusion Tapping KitHW-TL-001-0000 - 320 X 225 X 35 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	25
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	24
	Motor Mount for Dorner 3200MO-CV-023-0001 - 273 X 123 X 80 mmShips in 2 weeks	3
	Dorner 3200 Belt Conveyor, 610mm x 2475mmMO-CV-025-2475 - 2475 X 667 X 96 mmShips in 2 weeks	2
	Dorner 3200 Belt Conveyor, 610mm x 2655mmMO-CV-025-2655 - 2655 X 667 X 96 mmShips in 2 weeks	1
	1/2 HP AC Motor and 8:1 Gearbox, for Dorner 3200MO-SM-022-0005 - 419 X 215 X 170 mmShips in 6 weeks	3
	Side-Mount Swivel Caster Wheel, 50kg CapacityMO-WL-004-0001 - 230 X 92 X 50 mmShips next day	1
	FANUC CRX-20iA/L Collaborative Robot ArmPR-FA-001-0601 - 1168 X 1118 X 610 mmShips in 7 weeks	1
	Keyence Light Curtains - 1465mmPR-KE-001-0004 - 1440 X 32 X 38 mmShips next day	1
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips next day	6
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	6
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips next day	5
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips next day	12
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	24
	45x90mm (765mm) Aluminum ExtrusionST-EXT-002-0765 - 765 X 45 X 90 mmShips next day	12
	45x90mm (900mm) Aluminum ExtrusionST-EXT-002-0900 - 900 X 45 X 90 mmShips next day	1
	45x90mm (2205mm) Aluminum ExtrusionST-EXT-002-2205 - 2205 X 45 X 90 mmShips next day	11
	20mm OD Round (90mm) Aluminum ExtrusionST-EXT-008-0090 - 90 X 20 X 20 mmShips next day	15
	20mm OD Round (225mm) Aluminum ExtrusionST-EXT-008-0225 - 225 X 20 X 20 mmShips next day	15
	45x45mm (900mm) Light Aluminum ExtrusionST-EXT-101-0900 - 900 X 45 X 45 mmShips next day	2
	45x45mm (945mm) Light Aluminum ExtrusionST-EXT-101-0945 - 945 X 45 X 45 mmShips next day	4
	45x45mm (990mm) Light Aluminum ExtrusionST-EXT-101-0990 - 990 X 45 X 45 mmShips next day	4
	45x45mm (2070mm) Light Aluminum ExtrusionST-EXT-101-2070 - 2070 X 45 X 45 mmShips next day	2
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	4
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	4
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	8
	1x2 Hole Aluminum Assembly PlateST-GP-001-0016 - 6 X 88 X 43 mmShips next day	4
	Round Extrusion Clamping AdaptorST-GP-004-0007__2 - 56 X 33 X 33 mmShips next day	15
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	100
	Plastic Coated Steel Wire Mesh Panel, 920 x 965mm, 25mm GridST-PN-002-0004 - 920 X 965 X 6 mmShips next day	4
	Machine Guarding Panel, 2050 x 700 mmST-PN-002-0700 - 2050 X 700 X 19 mmShips next day	3
	Machine Guarding Panel, 2050 x 1000 mmST-PN-002-1000 - 2050 X 1000 X 19 mmShips next day	2
	Machine Guarding Panel, 2050 x 1200 mmST-PN-002-1200 - 2050 X 1200 X 19 mmShips next day	2
	Flexible Conveyor Guide StripST-PN-020-2295 - 2293 X 43 X 9 mmShips next day	5
	Heavy Duty Cobot Pedestal, 585 mmST-RB-033-0585__2 - 405 X 405 X 585 mmShips in 15 days	1
	Multi-Robot Mounting Plate 225 x 225 mmST-RB-100-0225__3 - 223 X 223 X 22 mmShips next day	1
	Machine Guarding Floor Anchoring Mount for 45x90mm and 45x45mm ExtrusionsST-SE-001-0005 - 135 X 83 X 105 mmShips next day	22
	Door HingeST-SE-005-0001 - 67 X 67 X 19 mmShips next day	4
	Right Gate Bolt with InterlockST-SE-006-0001__2 - 233 X 72 X 167 mmShips next day	1
	Round Extrusion HolderST-SP-004-0001__2 - 88 X 44 X 44 mmShips next day	15
	45x90mm Accessory Mounting PlateST-SP-012-0001 - 12 X 88 X 43 mmShips next day	24
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	718
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	26
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips in 2 days	32
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	51
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	73
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	562
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	5
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	13
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	58
	M8 x 1.25 x 40 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1040 - 48 X 13 X 13 mmShips next day	5
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	51
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	62
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	11
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	231
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmShips next day	9
	Extrusion T-slot Cover, 180mmST-PN-019-0180 - 180 X 16 X 6 mmShips in 2 days	42
	Slotted Floor Anchoring Mount for 45x45mm, 45x90mm, and 90x90mm ExtrusionsHW-LF-001-0004 - 200 X 39 X 87 mmShips next day	18
	5mm x 250mm Cable Tie (Bag of 25)HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	1
	Panel RetainersST-PN-007-0001 - 23 X 45 X 87 mmShips next day	8
