parts packaging

Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	PZ-EL-402487
Weight	298.36 kg
Dimensions (L x W x H)	1688 x 2232 x 2168 mm
Application	Packaging
Assembly Time	13:59

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 2 - One DriveCE-CL-010-0001 - 392 X 293 X 150 mmShips next day	1
	Small Module AdaptorCE-HW-001-0005 - 133 X 88 X 8 mmShips next day	1
	Tower Light v2CE-LI-001-0000__2 - 39 X 55 X 353 mmShips next day	1
	Slotted Wiring DuctHW-CA-006-2000 - 2000 X 40 X 50 mmShips next day	1
	610mm x 1530mm Dorner 2200 Belt ConveyorMO-CV-007-1530 - 1530 X 671 X 47 mmShips in 2 weeks	1
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	4
	Motor Mount for Dorner Belt ConveyorsMO-CV-009-0001 - 233 X 155 X 88 mmShips next day	1

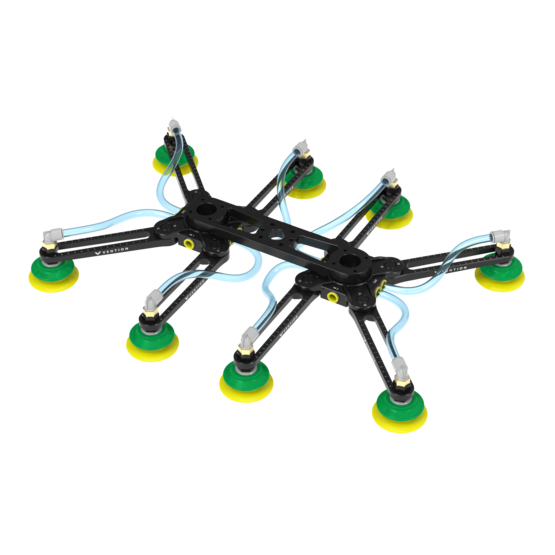

	Vention Modular Vacuum Double Gripper, Large (75mm Cups)MO-GR-200-2075 - 667 X 295 X 93 mmShips in 3 days	1
	68mm NEMA 34 Stepper Servo MotorMO-SM-013-0000 - 168 X 86 X 112 mmShips next day	1
	Blickle Swivel Leveling Caster Wheel with Adjustment Wheel, 500kg CapacityMO-WL-003-0002 - 125 X 90 X 104 mmShips next day	4
	FANUC CRX-10iA Collaborative Robot ArmPR-FA-001-0501 - 1168 X 1118 X 610 mm	1
	45x45mm (1305mm) Aluminum ExtrusionST-EXT-001-1305 - 1305 X 45 X 45 mmShips next day	10
	45x45mm (1980mm) Aluminum ExtrusionST-EXT-001-1980 - 1980 X 45 X 45 mmShips next day	4
	45x45mm (2115mm) Aluminum ExtrusionST-EXT-001-2115 - 2115 X 45 X 45 mmShips next day	7
	45x90mm (630mm) Aluminum ExtrusionST-EXT-002-0630 - 630 X 45 X 90 mmShips next day	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	4
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	2
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	24
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	4
	UR10e/UR16e and FANUC CRX-10iA Mounting PlateST-RB-001-0008 - 225 X 225 X 22 mmShips next day	1
	Premium Caster Wheel Mounting Plate for MO-WL-003-0002ST-SP-010-0002 - 90 X 90 X 11 mmObsolete	4
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 1.6949 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 1.6949 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 2.6791 m²Ships in 3 days	1
	Polycarbonate Panel, Clear 0.22'' [5.6mm]ST-PN-004-0001__2 - 2.6791 m²Ships in 3 days	1
	Anti-Static UHMW Polyethylene Panel, Black 1/4" [6.35mm]ST-PN-021-0001 - 0.9612 m²Ships in 3 days	1
	Anti-Static UHMW Polyethylene Panel, Black 1/4" [6.35mm]ST-PN-021-0001 - 1.0923 m²Ships in 3 days	1
	Anti-Static UHMW Polyethylene Panel, Black 1/4" [6.35mm]ST-PN-021-0001 - 1.0881 m²Ships in 3 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	321
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	5
	M6 Drop-in Spring Loaded T-NutHW-FN-002-0004 - 22 X 13 X 9 mmShips next day	13
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	3
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	26
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	217
	M8 x 1.25 x 35 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1035 - 43 X 13 X 13 mmShips next day	5
	M8 x 1.25 x 40 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1040 - 48 X 13 X 13 mmShips next day	5
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	21
	M6 x 1.0 x 25 mm, Low Profile Socket HeadHW-FN-005-0025 - 29 X 10 X 10 mmShips in 10 days	3
	M8 1.25 x 16mm Flat Head ScrewHW-FN-015-0016 - 16 X 16 X 16 mmShips next day	78
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	3
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	9
	M6 Oversized Washer with 18mm Outside DiameterHW-WS-005-0002 - 1 X 18 X 18 mmShips next day	13
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips next day	1
