UR10e Mobile Pedestal and Welding Table

Vention official

This design features a mobile welding workstation built for the Universal Robots UR10e, combining a cobot pedestal and a welding tabletop on a rigid T-slot aluminum frame. The setup includes a pedestal base compatible with the UR10e, a 5/8"-hole grid tabletop for flexible fixturing, and heavy-duty caster wheels with integrated leveling feet for both stability and mobility across the shop floor. Designed for ease of deployment and durability, this configuration provides a reliable platform for collaborative welding applications. Overall dimensions are approximately 2667 × 2540 × 1981 mm, with a total weight of about 460 kg. All components shown are included.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-WD-412779
Weight	254.87 kg
Dimensions (L x W x H)	1219 x 1655 x 1649 mm
Application	Manufacturing
Assembly Time	12:18

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	2
	90x90mm Plastic End Cap, for ExtrusionsHW-EC-005-0001 - 12 X 90 X 90 mmShips next day	4
	Ergonomic HandleHW-HD-001-0001__2 - 160 X 30 X 60 mmShips next day	2
	Latch-Style Toggle Clamp with Assembly PlatesHW-LT-003-0001 - 186 X 133 X 57 mmShips next day	2
	Extrusion Tapping KitHW-TL-001-0000 - 320 X 225 X 35 mmShips next day	1
	Blickle Swivel Leveling Caster Wheel with Adjustment Wheel, 500kg CapacityMO-WL-003-0002 - 125 X 90 X 104 mmShips next day	8
	Strong Hand Tool 48'' x 30'' Welding Table Top with 5/8'' HolesPR-SH-001-0001 - 1219 X 762 X 76 mmShips in 9 days	1
	Smooth Robotics SmoothTool for UR3e - UR16ePR-SR-001-0001 - 110 X 175 X 80 mmShips next day	1

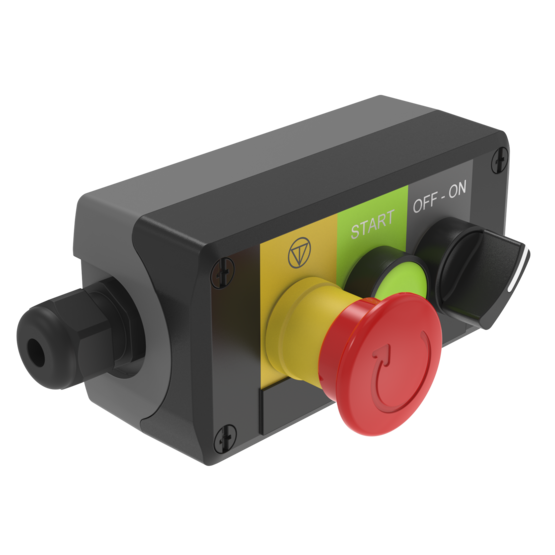

	Smooth Robotics Arc Control BoxPR-SR-010-0001 - 235 X 310 X 110 mmShips next day	1
	Universal Robots UR10e Collaborative Robot ArmPR-UR-010-0000 - 915 X 760 X 485 mmShips in 3 weeks	1
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips next day	2
	45x45mm (900mm) Aluminum ExtrusionST-EXT-001-0900 - 900 X 45 X 45 mmShips next day	1
	45x90mm (135mm) Aluminum ExtrusionST-EXT-002-0135 - 135 X 45 X 90 mmShips next day	2
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	1
	45x90mm (900mm) Aluminum ExtrusionST-EXT-002-0900 - 900 X 45 X 90 mmShips next day	1
	90x90mm (675mm) Aluminum ExtrusionST-EXT-005-0675 - 675 X 90 X 90 mmShips next day	2
	90x90mm (720mm) Aluminum ExtrusionST-EXT-005-0720 - 720 X 90 X 90 mmShips next day	2
	90x90mm (765mm) Aluminum ExtrusionST-EXT-005-0765 - 765 X 90 X 90 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	18
	90mm x 90mm Aluminum Gusset With LocatorsST-HP-003-0004 - 88 X 88 X 88 mmShips next day	8
	UR Control Box Mounting BracketST-RB-002-0001__2 - 12 X 450 X 130 mmShips next day	1
	Heavy Duty Cobot Pedestal, 585 mmST-RB-033-0585__2 - 405 X 405 X 585 mmShips in 5 days	1
	Leg Adaptor Plates for 5/8" Welding TableST-RB-053-0002 - 133 X 146 X 48 mmShips next day	1
	Caster Wheel Mounting PlateST-SP-010-0003 - 125 X 88 X 12 mmShips next day	8
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	204
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	38
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	7
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	136
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	13
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	21
	M8 x 1.25 x 25 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1025 - 33 X 13 X 13 mmShips next day	5
	M8 x 1.25 x 30 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1030 - 38 X 13 X 13 mmShips next day	5
	M8-1.25 x 25mm Flat Head ScrewHW-FN-015-0025 - 25 X 16 X 16 mmShips next day	9
	M8-1.25 x 40mm Flat Head ScrewHW-FN-015-0040 - 40 X 16 X 16 mmShips next day	17
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	19
	Slotted Floor Anchoring Mount for 45x45mm, 45x90mm, and 90x90mm ExtrusionsHW-LF-001-0004 - 200 X 39 X 87 mmShips next day	2
