Industrial Workstation with 2 Telescopic Drawers (customized)

Community design

Spec Attribute	Spec Value
Technical Specifications
Numéro de conception	AS-WS-425749
Poids	217.21 kg
Dimensions (L x l x H)	1242 x 3789 x 2107 mm
Application	Assembly
Temps d’assemblage	16:44

Spec Attribute	Spec Value
Documentation
Instructions d’assemblage
Calculateur de ROI
Modèle 3D

Parts	Description	Quantity
Parts		Qty
	Industrial Power StripCE-CA-036-0001 - 630 X 113 X 112 mmShips in 2 days	1
	Industrial LED BarCE-LI-002-0000 - 298 X 32 X 46 mmShips next day	2
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	9
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	10
	Ergonomic HandleHW-HD-001-0001__2 - 160 X 30 X 60 mmShips next day	2
	Tool HangerHW-OG-001-0001__2 - 60 X 14 X 37 mmShips next day	6
	Angle Adjustment Bracket For Roller ConveyorMO-CV-030-0006 - 180 X 49 X 112 mmShips in 5 days	4
	Height Adjustment Bracket For Roller ConveyorMO-CV-030-0007 - 145 X 48 X 228 mmShips next day	4

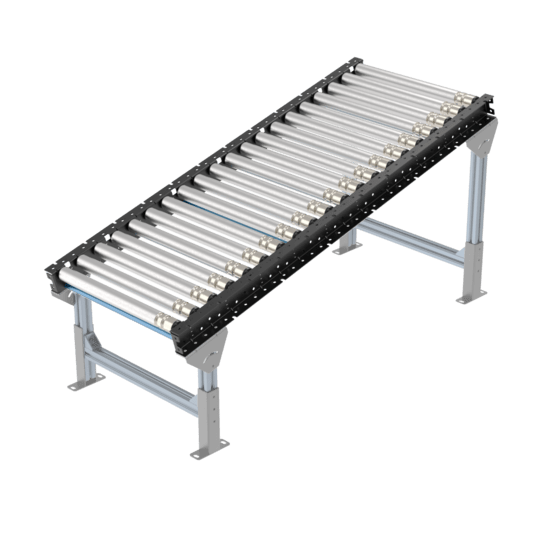

	Roller Conveyor 1575 mm Unpowered Straight SectionMO-CV-030-0015 - 1575 X 675 X 90 mmShips in 5 days	1
	Hydraulic Lift Assembly, ManualMO-HY-001-0001 - 0 X 0 X 0 mmObsolete	1
	GF Nylon Eccentric RollerMO-LM-001-0027 - 55 X 55 X 52 mmShips next day	2
	GF Nylon Concentric RollerMO-LM-001-0028 - 52 X 52 X 52 mmShips next day	2
	180x135mm Gantry PlateMO-LM-001-0029 - 135 X 180 X 12 mmShips next day	1
	Telescopic Slide, Heavy Duty (600mm)MO-LM-029-0600 - 609 X 76 X 19 mmShips next day	4
	261mm Round Belt for Belt-Driven ConveyorMO-PL-002-0257 - 5 X 82 X 82 mmShips next day	1
	Blickle Swivel Caster Wheel with Brake, 350kg CapacityMO-WL-002-0004 - 190 X 85 X 155 mmShips next day	4
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips next day	4
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	2
	45x90mm (450mm) Aluminum ExtrusionST-EXT-002-0450 - 450 X 45 X 90 mmShips next day	2
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	4
	45x90mm (630mm) Aluminum ExtrusionST-EXT-002-0630 - 630 X 45 X 90 mmShips next day	2
	45x90mm (900mm) Aluminum ExtrusionST-EXT-002-0900 - 900 X 45 X 90 mmShips next day	2
	45x90mm (1980mm) Aluminum ExtrusionST-EXT-002-1980 - 1980 X 45 X 90 mmShips next day	2
	45x45mm (135mm) Light Aluminum ExtrusionST-EXT-101-0135 - 134 X 45 X 45 mmShips next day	1
	45x45mm (180mm) Light Aluminum ExtrusionST-EXT-101-0180 - 180 X 45 X 45 mmShips next day	2
	45x45mm (315mm) Light Aluminum ExtrusionST-EXT-101-0315 - 315 X 45 X 45 mmShips next day	1
	45x45mm (450mm) Light Aluminum ExtrusionST-EXT-101-0450 - 450 X 45 X 45 mmShips next day	2
	45x45mm (585mm) Light Aluminum ExtrusionST-EXT-101-0585 - 585 X 45 X 45 mmShips next day	16
	45x45mm (630mm) Light Aluminum ExtrusionST-EXT-101-0630 - 630 X 45 X 45 mmShips next day	4
	45x45mm (720mm) Light Aluminum ExtrusionST-EXT-101-0720 - 720 X 45 X 45 mmShips next day	2
	45x45mm (855mm) Light Aluminum ExtrusionST-EXT-101-0855 - 855 X 45 X 45 mmShips next day	1
	45x45mm (990mm) Light Aluminum ExtrusionST-EXT-101-0990 - 990 X 45 X 45 mmShips next day	1
	45x45mm (1035mm) Light Aluminum ExtrusionST-EXT-101-1035 - 1035 X 45 X 45 mmShips next day	1
	45x45mm (1485mm) Light Aluminum ExtrusionST-EXT-101-1485 - 1485 X 45 X 45 mmShips next day	7
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	19
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	8
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	2
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	5
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	7
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	10
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	28
	90 Degree Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0001 - 6 X 133 X 133 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	16
	45 Degree Inline Connector with LocatorsST-HP-003-0003__2 - 45 X 45 X 5 mmShips next day	4
	Premium Caster Wheel Mounting PlateST-SP-010-0001 - 100 X 90 X 11 mmShips next day	4
	DIN Rail 35x7.5mm (450mm)ST-SP-014-0450 - 450 X 35 X 7 mmShips next day	1
	Gas Spring Mounting Arm for Monitor or Keyboard MountST-SP-015-0001 - 540 X 120 X 300 mmShips next day	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003__2 - 1.1239 m²Ships in 3 days	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003__2 - 0.2673 m²Ships in 3 days	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003__2 - 1.9379 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.3402 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.3402 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 1.0631 m²Ships in 3 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	537
	M6 Drop-in Spring Loaded T-NutHW-FN-002-0004 - 22 X 13 X 9 mmShips next day	24
	M5 Drop-in Spring Loaded T-NutHW-FN-002-0006 - 22 X 13 X 7 mmShips in 2 days	17
	M8 Drop-in T-nut with M5 set screwHW-FN-002-0008 - 21 X 13 X 8 mmShips next day	9
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	4
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	36
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	38
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	423
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	5
	M6 x 1.0 x 12mm, Low Profile Socket HeadHW-FN-005-0012 - 16 X 10 X 10 mmShips next day	5
	M6 x 1.0 x 14mm, Low Profile Socket HeadHW-FN-005-0014 - 18 X 10 X 10 mmShips next day	17
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	3
	M5-0.8 X 16mm ScrewHW-FN-008-0016 - 19 X 8 X 8 mmShips next day	17
	M8 1.25 x 16mm Flat Head ScrewHW-FN-015-0016 - 16 X 16 X 16 mmShips next day	47
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	19
	M8 X1.25 Serrated Flange LocknutHW-FN-031-0002 - 17 X 17 X 8 mmShips next day	9
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	9
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmShips next day	4
	M8 Split Lock Washer, with 12.7mm ODHW-WS-001-1003 - 12 X 12 X 2 mmShips next day	9
	M6 Washer with 12mm Outside DiameterHW-WS-005-0001 - 1 X 12 X 12 mmShips next day	3
	Spacer for Heavy Duty Telescopic SlideMO-LM-022-0001 - 13 X 13 X 5 mmShips in 9 days	16
