UR10e Machine Tending Workstation with Flat Tray

UR10e Machine Tending Workstation with Flat Tray

UR10e Machine Tending Workstation with Flat Tray

By: User badge
$66,714.14 USD

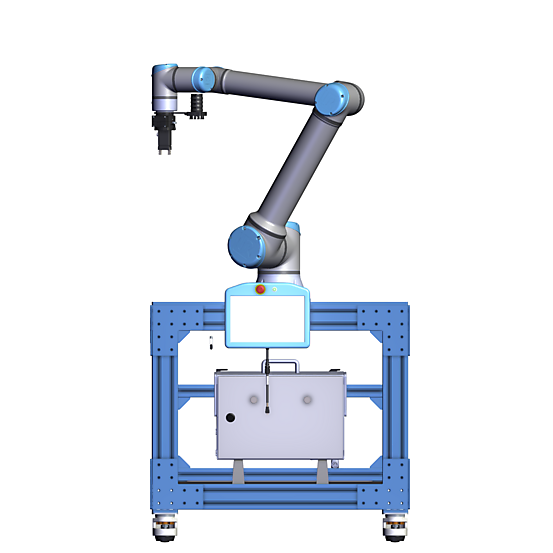

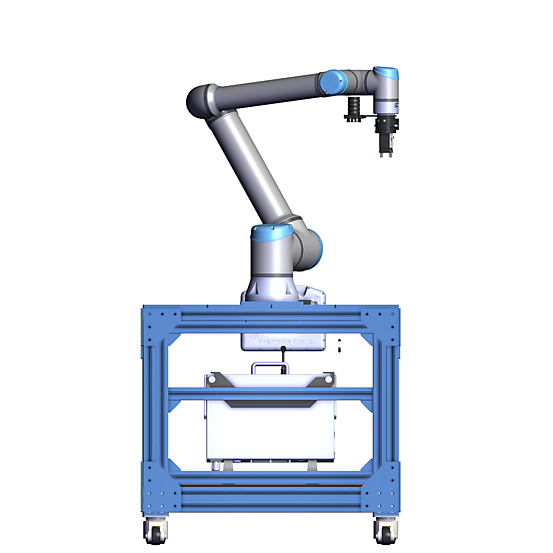

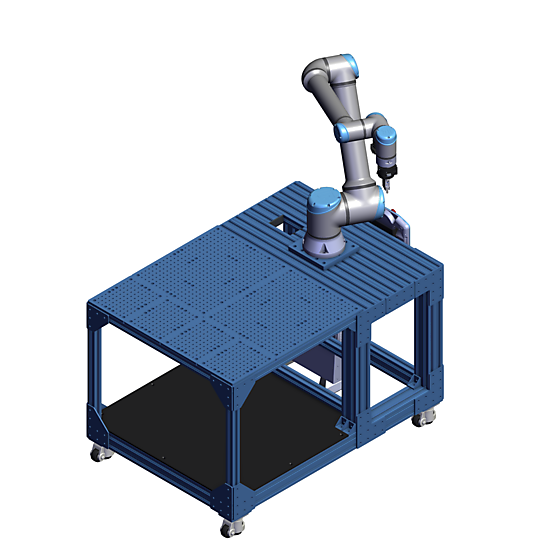

Mobile machine tending workstation designed for a UR10e robot. The part presenter is configured with fixed aluminum tooling plates that have evenly spaced M8-threaded holes. Ideal for machine tending applications, nylon pins can be added to customize nesting of each part. The workstation is 912mm wide and 1272mm long. The robot controller is protected inside the workstation. Extra storage is available under the part presenter. All the parts shown are included.

0 comments
View in 3D
Contact Us
Use desktop to open this design in the MachineBuilder
All parts available

Not sure where to start?

Get help from an expert

Technical Specifications

Spec Attribute Spec Value
Design number MF-RC-168975 v31
Weight 168.9 kg
Dimensions (L x W x H) 912 x 1413 x 1691 mm
Unit price $66,714.14 USD
Use case Manufacturing
Application Machine Tending
Assembly time 16:37

Supporting Documents

Technical Drawings

Technical Documents

Assembly Instructions

Calculators

ROI Calculator

Technical Specifications

Spec Attribute Spec Value
Design number MF-RC-168975 v31
Weight 168.9 kg
Dimensions (L x W x H) 912 x 1413 x 1691 mm
Unit price $66,714.14 USD
Use case Manufacturing
Application Machine Tending
Assembly time 16:37

Supporting Documents

Technical Drawings

Technical Documents

Assembly Instructions

Calculators

ROI Calculator
Questions & Answers
