CRX25iA Rapid Series Telescopic Column Palletizer with Safety

Vention official

Deploy Vention's CRX25iA palletizer machine within days to your end of line packaging operations. Designed with safety area scanners, a telescopic pedestal and compact base, it includes the hardware and software required to palletize side by side at high throughputs. Configure your machine and increase your production!

Spec Attribute	Spec Value
Technical Specifications
Design Number	PZ-CB-343560
Weight	446.11 kg
Dimensions (L x W x H)	1984 x 3235 x 2270 mm
Application	Packaging
Assembly Time	20:11

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Sensor and Reflector BracketCE-HW-001-0003__3 - 43 X 44 X 37 mmShips next day	3
	Area Scanner Mounting PlateCE-HW-006-0001 - 150 X 44 X 225 mmShips next day	3
	Diffuse Keyence PR-G M18 NPN/PNP Sensor (Sn 500)CE-SN-007-0007 - 110 X 110 X 30 mmShips next day	2
	Retro-Reflective Keyence PR-G M18 NPN/PNP Sensor with Reflective Tape (Sn 1100)CE-SN-007-0016 - 110 X 110 X 30 mmShips next day	1
	MachineApp - PalletizerCE-SW-002-0004 - 40 X 10 X 5 mmShips next day	1
	Remote Support HeadsetCE-TP-015-0000 - 17 X 8 X 18 mmShips next day	1
	Large Cobot Dress Pack with Flange MountHW-CA-005-0005 - 360 X 360 X 180 mmShips next day	1
	Vention Modular Vacuum Gripper, Medium (75mm Cups)MO-GR-100-1075 - 295 X 295 X 93 mmShips in 3 days	1
	Telescopic Lift Column for MMv2MO-LM-050-0830__2 - 315 X 315 X 830 mmShips next day	1
	Datalogic Laser Area Scanner - ChildPR-DA-001-0582 - 137 X 143 X 163 mmShips next day	2
	Datalogic Laser Area Scanner - 3 OSSD Parent (auto-reset)PR-DA-201-0489 - 113 X 102 X 151 mmShips next day	1
	FANUC CRX-30iA Collaborative Robot ArmPR-FA-001-0602 - 1270 X 1372 X 1727 mm	1
	Fanuc Add-On Bundle for Machine AppsPR-FA-002-0024 - 0 X 0 X 0 mmShips next day	1
	PiClassic Vacuum GeneratorPR-PB-001-0001 - 193 X 64 X 150 mmShips next day	1
	Slotted 45mm x 90mm Aluminum GussetST-GP-003-0008 - 42 X 44 X 89 mmShips next day	1

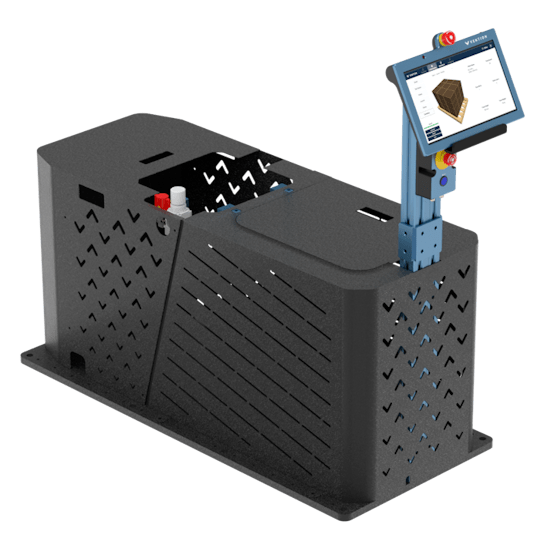

	Rapid Series Palletizer Base for Lift Column w/ Area Scanners (Fanuc Ready)ST-RB-040-9111 - 1200 X 540 X 600 mmComing soon	1
	Multi-Robot Mounting Plate 315 X 315 mmST-RB-100-0315 - 313 X 313 X 27 mmShips in 3 weeks	1
	Pallet LocatorST-SP-019-0001__2 - 552 X 57 X 90 mmShips next day	7
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	83
	M5 Drop-in Spring Loaded T-NutHW-FN-002-0006 - 22 X 13 X 7 mmShips next day	3
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	30
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	15
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	7
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	45
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	21
	M5-0.8 X 12mm Screw - Low ProfileHW-FN-008-0012 - 15 X 8 X 8 mmShips next day	3
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	13
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	30
	M12 x 1.75 x 50 mm Standard Hex Socket Head, Class 12.9HW-FN-034-0050 - 62 X 18 X 18 mmShips next day	5
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	2
