Box Pick and Place

Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-RB-430957
Weight	228.35 kg
Dimensions (L x W x H)	3195 x 1733 x 1502 mm
Application	Manufacturing
Assembly Time	12:18

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 2 - One DriveCE-CL-010-0001 - 392 X 293 X 150 mmShips in 7 days	1
	Sensor and Reflector BracketCE-HW-001-0003__3 - 43 X 44 X 37 mmShips next day	1
	Diffuse Keyence PR-G M18 NPN/PNP Sensor (Sn 500)CE-SN-007-0007 - 110 X 110 X 30 mmShips next day	1
	Pneumatic Actuator NPN Position SensorCE-SN-008-0001__2 - 20 X 5 X 12 mmShips next day	2

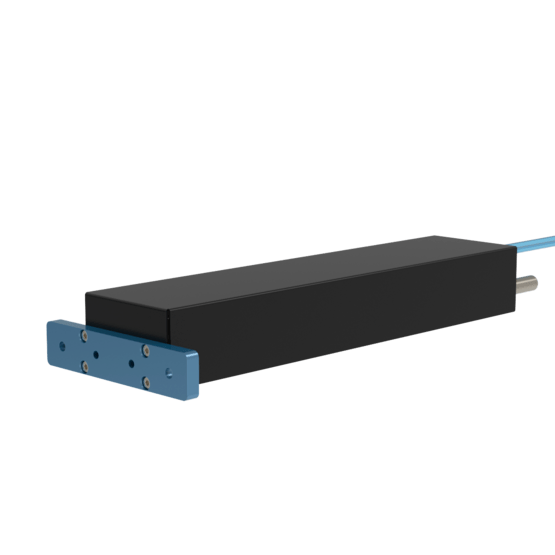

	Guided Double-Acting Pneumatic Actuator with Pinch Guarding, 400mm StrokeHW-AR-102-0400 - 523 X 178 X 67 mmShips next day	1
	457mm x 2475mm Dorner 2200 Belt ConveyorMO-CV-006-2475 - 2475 X 519 X 47 mmShips in 2 weeks	1
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	6
	Motor Mount for Dorner Belt ConveyorsMO-CV-009-0001 - 233 X 155 X 88 mmShips in 15 days	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips next day	1
	Vacuum Handling Gripper ( Flexigrip Ø 100 mm)PR-JL-001-0316 - 91 X 100 X 200 mmShips next day	1
	Vacuum Gripper Adapter for Cobots (Flexigrip and Safe-and-Light)PR-JL-001-0371 - 34 X 87 X 87 mmShips in 3 weeks	1
	Universal Robots UR10e Collaborative Robot ArmPR-UR-010-0000 - 915 X 760 X 485 mmShips in 3 weeks	1
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips in 2 days	4
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips in 2 days	2
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips in 2 days	1
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips in 2 days	15
	45x45mm (855mm) Aluminum ExtrusionST-EXT-001-0855 - 855 X 45 X 45 mmShips in 2 days	4
	45x45mm (1035mm) Aluminum ExtrusionST-EXT-001-1035 - 1035 X 45 X 45 mmShips in 2 days	4
	45x90mm (495mm) Aluminum ExtrusionST-EXT-002-0495 - 495 X 45 X 90 mmShips next day	1
	45x90mm (540mm) Aluminum ExtrusionST-EXT-002-0540 - 540 X 45 X 90 mmShips next day	14
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	3
	22.5x22.5mm (585mm) Aluminum ExtrusionST-EXT-006-0585 - 585 X 22 X 22 mmShips next day	1
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	1
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	4
	Tee Joint Aluminum Assembly PlateST-GP-001-0011 - 6 X 268 X 178 mmShips next day	2
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	4
	22.5mm x 45mm Aluminum GussetST-GP-003-0002 - 21 X 22 X 44 mmShips next day	1
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	55
	UR Control Box Mounting BracketST-RB-002-0001__2 - 12 X 450 X 130 mmShips next day	1
	Heavy Duty Cobot Pedestal, 585 mmST-RB-033-0585__2 - 405 X 405 X 585 mmShips in 15 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.2896 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.2896 m²Ships in 3 days	1
	M5 Split Lock WasherCE-WS-005-0005 - 80 X 30 X 14 mmShips next day	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	245
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	7
	M5 Drop-in Spring Loaded T-NutHW-FN-002-0006 - 22 X 13 X 7 mmShips in 3 weeks	5
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	3
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	19
	M8 x 16mm ScrewHW-FN-003-0016 - 21 X 13 X 13 mmShips next day	3
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	197
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	13
	M8 x 1.25 x 25 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1025 - 33 X 13 X 13 mmShips next day	5
	M8 x 1.25 x 30 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1030 - 38 X 13 X 13 mmShips next day	5
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	13
	M6 x 1.0 x 25 mm, Low Profile Socket HeadHW-FN-005-0025 - 29 X 10 X 10 mmShips next day	3
	M5-0.8 x 50mm Socket Head Cap ScrewHW-FN-008-0050 - 55 X 9 X 9 mmShips next day	5
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	13
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	13
