Konzept Nr. 1

Community design

Entwurf und Realisierung eines vollautomatischen De- und Palettier System

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-PP-256176
Weight	148.30 kg
Dimensions (L x W x H)	4645 x 4171 x 2157 mm
Application	Assembly
Assembly Time	09:37

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 2 - Four DriveCE-CL-010-0004 - 392 X 293 X 150 mmShips in 8 days	2
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	7
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	4
	45mm Round Nylon Rest PadHW-RP-002-0005 - 43 X 43 X 11 mmShips next day	2
	Compact Double-Acting Pneumatic Actuator, 200mm StrokeMO-AR-001-0200 - 336 X 45 X 68 mmShips next day	1
	Compact Double-Acting Pneumatic Actuator, 300mm StrokeMO-AR-001-0300 - 436 X 45 X 68 mmShips next day	1
	Guided Double-Acting Pneumatic Actuator, 100mm StrokeMO-AR-002-0100 - 198 X 166 X 91 mmShips next day	1
	610mm x 2070mm Dorner 2200 Belt ConveyorMO-CV-007-2070 - 2070 X 671 X 47 mmShips in 2 weeks	1
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	6
	Motor Mount for Dorner Belt ConveyorsMO-CV-009-0001 - 233 X 155 X 88 mmShips next day	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips next day	1

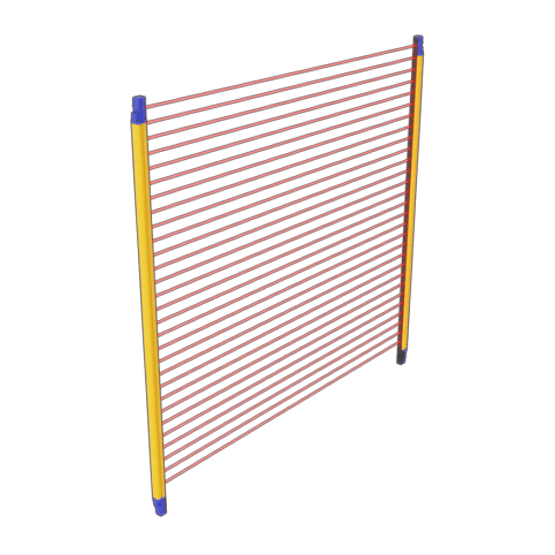

	Datalogic Light Curtain Kit - 1500mm (Safety Module Compatible)PR-DA-101-0296 - 35 X 38 X 40 mmShips next day	2
	Vacuum Area Gripper with Suction Cups for URPR-SZ-001-0543 - 160 X 331 X 179 mmShips in 3 weeks	1
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips in 2 days	2
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips in 2 days	2
	45x45mm (630mm) Aluminum ExtrusionST-EXT-001-0630 - 630 X 45 X 45 mmShips in 2 days	11
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips in 2 days	4
	45x45mm (1575mm) Aluminum ExtrusionST-EXT-001-1575 - 1575 X 45 X 45 mmShips in 2 days	4
	45x90mm (540mm) Aluminum ExtrusionST-EXT-002-0540 - 540 X 45 X 90 mmShips next day	2
	45x90mm (630mm) Aluminum ExtrusionST-EXT-002-0630 - 630 X 45 X 90 mmShips next day	2
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	2
	45x45mm (45mm) Light Aluminum ExtrusionST-EXT-101-0045 - 45 X 45 X 45 mmShips next day	2
	45x45mm (360mm) Light Aluminum ExtrusionST-EXT-101-0360 - 360 X 45 X 45 mmShips next day	2
	45x45mm (450mm) Light Aluminum ExtrusionST-EXT-101-0450 - 450 X 45 X 45 mmShips next day	1
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	11
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	4
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	26
	OnRobot 2FGP20 Electric GripperST-RB-028-0022 - 400 X 121 X 188 mmShips in 13 days	1
	45x90mm Accessory Mounting PlateST-SP-012-0001 - 12 X 88 X 43 mmShips next day	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	193
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	7
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	17
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	177
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	13
	M6 x 1.0 x 25 mm, Low Profile Socket HeadHW-FN-005-0025 - 29 X 10 X 10 mmShips next day	3
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	13
