Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-CV-31016
Weight	54.34 kg
Dimensions (L x W x H)	870 x 1029 x 1358 mm
Application	Material Handling
Assembly Time	03:27

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty

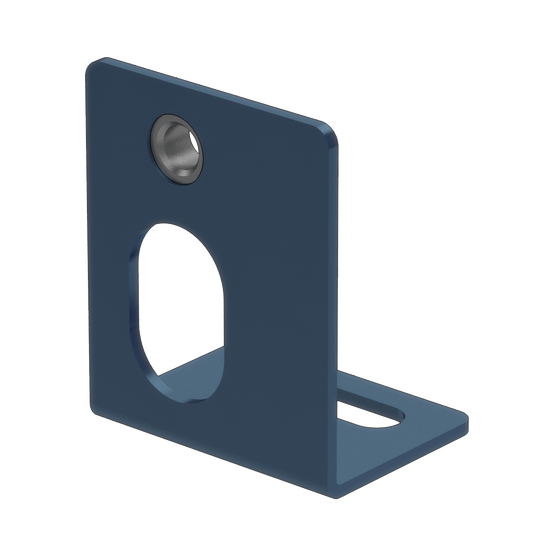

	Sensor Bracket for M18 SensorCE-HW-001-0001 - 34 X 45 X 56 mm	1
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	1
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	4
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mm	4
	Grooved Rollers for Belt-driven Conveyors, 585mmMO-CV-001-0585__2 - 50 X 600 X 50 mm	15
	Mounting Bracket for Five Conveyor RollersMO-CV-002-0001 - 2 X 449 X 12 mm	6
	Motor Mounting Block for Belt-Driven ConveyorMO-CV-003-0001 - 90 X 97 X 89 mmObsolete	1
	261mm Roller-to-Roller O-Ring for Straight Conveyor SegmentsMO-PL-002-0257 - 5 X 82 X 82 mmObsolete	14
	297mm Motor-to-Roller O-Ring for Parallel Single-Pulley Driving SetupMO-PL-002-0292 - 5 X 96 X 96 mmObsolete	1
	Planetary Reduction Gearbox, 5:1MO-PT-001-0001 - 130 X 86 X 86 mmShips next day	1
	156mm NEMA 34 Stepper MotorMO-SM-001-0001 - 190 X 86 X 86 mmObsolete	1
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	4
	45x90mm (1350mm) Aluminum ExtrusionST-EXT-002-1350 - 1350 X 45 X 90 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	4
	Floor Anchoring Mount for 45x45mm and 45x90mm ExtrusionsST-SE-001-0003 - 180 X 180 X 94 mmShips next day	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	118
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	13
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	39
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	68
