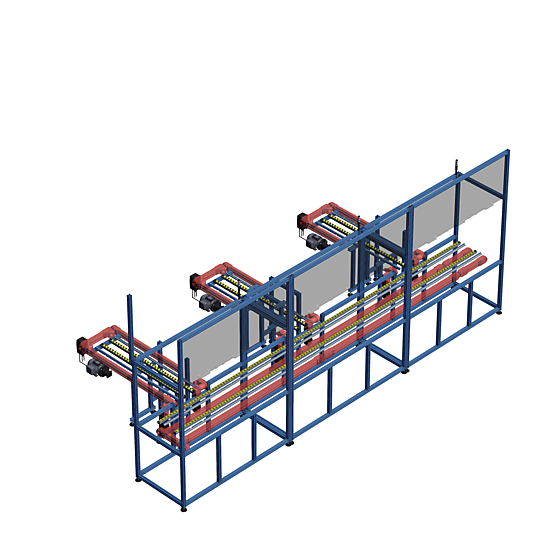

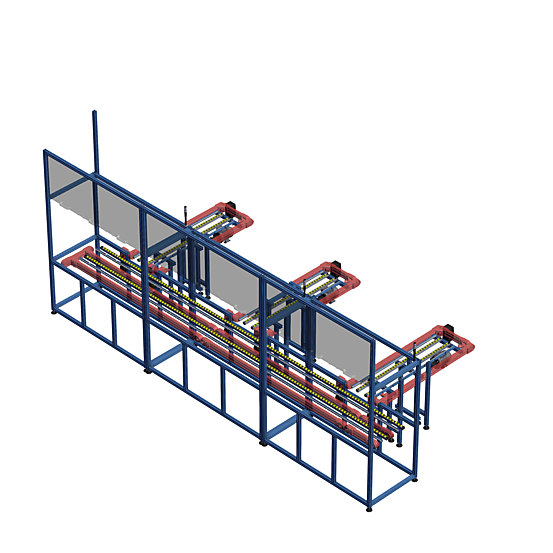

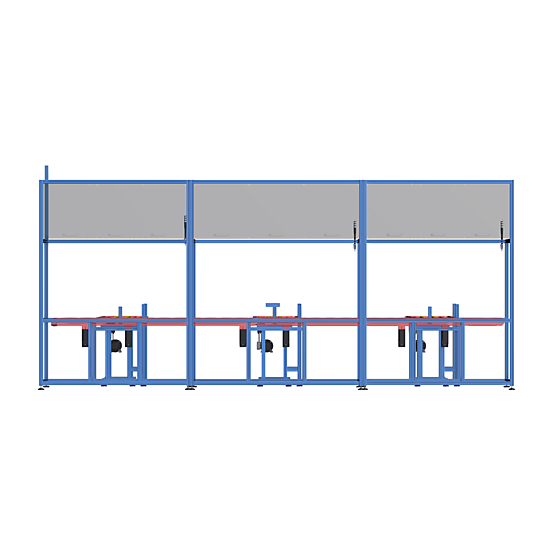

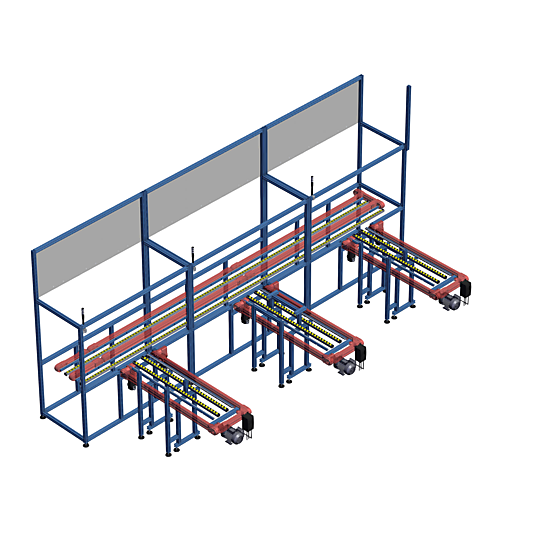

Projet Vachette

Community design

vachette

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-404963
Weight	559.34 kg
Dimensions (L x W x H)	5839 x 2701 x 2779 mm
Application	Other Equipment
Assembly Time	35:14

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Tower Light v2CE-LI-001-0000__2 - 39 X 55 X 353 mmShips next day	3
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	30
	Motor Mounting for O-Ring ConveyorMO-CV-003-0001__2 - 91 X 86 X 88 mmObsolete	12
	990mm Flow Rail with FlangesMO-CV-011-0990 - 990 X 41 X 43 mmShips next day	2
	1530mm Flow Rail with FlangesMO-CV-011-1530 - 1530 X 41 X 43 mmShips next day	6
	Timing Belt Conveyor, 1530mm Length, PoweredMO-CV-013-1530 - 1743 X 220 X 168 mmObsolete	6
	Timing Belt Conveyor, 315mm Length, UnpoweredMO-CV-014-0315 - 528 X 67 X 97 mmObsolete	6
	Timing Belt Conveyor, 2295mm Length, UnpoweredMO-CV-014-2295 - 2508 X 67 X 97 mmObsolete	4
	1530mm Flow RailMO-CV-021-1530 - 1530 X 41 X 43 mmShips next day	6
	20mm Series Profile Guide Rail Assembly, 585mmMO-LM-049-0585 - 585 X 31 X 30 mmShips next day	2
	20mm Series Profile Guide Rail Assembly, 1530mmMO-LM-049-1530 - 1530 X 31 X 30 mmShips next day	8
	20mm Series Profile Guide Rail Assembly, 3330mmMO-LM-049-3330 - 3330 X 31 X 30 mmShips next day	2
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips next day	6
	1/2 HP AC Motor and VFD Kit, EuropeMO-SM-023-0000 - 385 X 215 X 170 mmShips in 7 days	3
	Panel Sliding DoorST-DR-001-0001 - 675 X 22 X 697 mmShips next day	9
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips next day	6
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	2
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips next day	4
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips next day	6
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips next day	6
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips next day	8
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips next day	3
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	6
	45x45mm (630mm) Aluminum ExtrusionST-EXT-001-0630 - 630 X 45 X 45 mmShips next day	12
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	3
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips next day	6
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips next day	19
	45x45mm (990mm) Aluminum ExtrusionST-EXT-001-0990 - 990 X 45 X 45 mmShips next day	7
	45x45mm (1755mm) Aluminum ExtrusionST-EXT-001-1755 - 1755 X 45 X 45 mmShips next day	10
	45x45mm (1800mm) Aluminum ExtrusionST-EXT-001-1800 - 1800 X 45 X 45 mmShips next day	6
	45x45mm (2025mm) Aluminum ExtrusionST-EXT-001-2025 - 2025 X 45 X 45 mmShips next day	5
	45x45mm (2250mm) Aluminum ExtrusionST-EXT-001-2250 - 2250 X 45 X 45 mmShips next day	6
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	3
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	32
	M5 Drop-in Spring Loaded T-NutHW-FN-002-0006 - 22 X 13 X 7 mmShips next day	340
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	7
	M8 x 80mm ScrewHW-FN-003-0080 - 85 X 13 X 13 mmShips next day	26
	M6 x 1.0 x 10mm, Low Profile Socket HeadHW-FN-005-0010 - 14 X 10 X 10 mmShips next day	30
	M5 x 0.8 x 14mm Standard Socket Head, Class 12.9HW-FN-008-1014 - 21 X 8 X 8 mmShips next day	328
	M5 x 0.8 x 30mm Standard Socket Head, Class 12.9 HW-FN-008-1030 - 35 X 8 X 8 mmShips next day	340
	M6 Hex NutHW-FN-033-0003 - 10 X 11 X 5 mmShips in 2 days	30
	M6 Oversized Washer with 18mm Outside DiameterHW-WS-005-0002 - 1 X 18 X 18 mmShips next day	30
