UR30 Drawer System with Area Scanners for Machine Tending

Vention official

Spec Attribute	Spec Value
Technical Specifications
Designnummer	MF-RC-423990
Gewicht	532.90 kg
Abmessungen (L x B x H)	1317 x 1093 x 1923 mm
Anwendung	Manufacturing
Montagezeit	12:31

Spec Attribute	Spec Value
Documentation
Montageanleitung
ROI-Rechner
3D-Modell

Parts	Description	Quantity
Parts		Qty
	Flange Adapter for UR20 / UR30 (ISO80 to ISO50)MO-GR-015-0080 - 22 X 100 X 100 mmShips next day	1

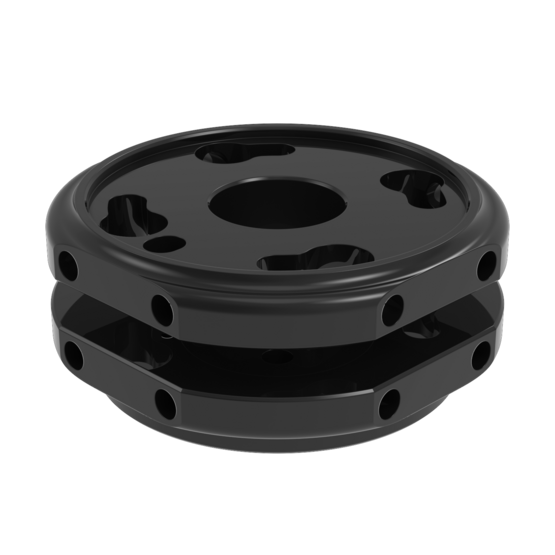

	ISO-50 Robot Flange Multi-Tool AdapterMO-GR-015-1050 - 77 X 77 X 32 mmShips in 14 days	1

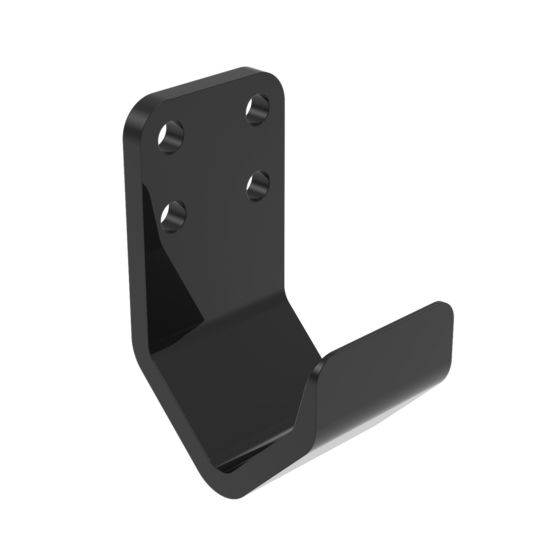

	Hook Attachment for ISO-50 Robot Flange Multi-Tool AdapterMO-GR-016-1000 - 74 X 54 X 37 mmShips next day	1
	Universal Robots UR30 Collaborative Robot ArmPR-UR-030-0000 - 1000 X 1000 X 500 mmShips in 4 weeks	1

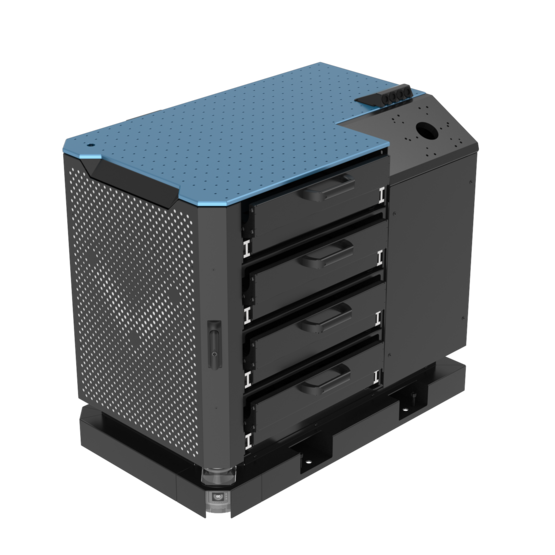

	Drawer Base for Machine TendingRS-MT-000-0001 - 1185 X 720 X 1055 mmShips in 10 days	1

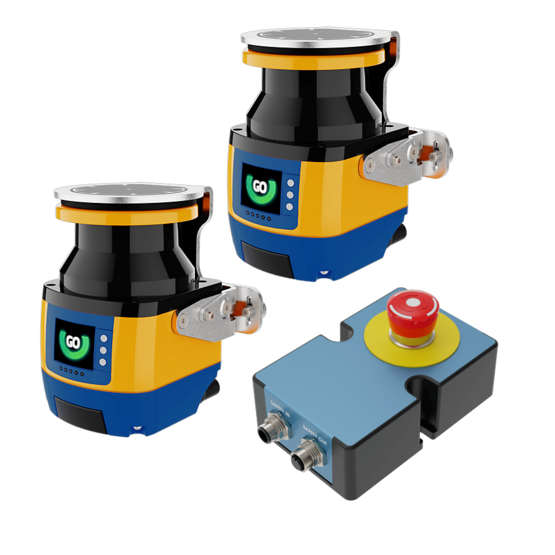

	UR Safety add-on for Machine TendingRS-MT-001-0011 - 206 X 153 X 115 mmShips in 4 weeks	1
	Floor Anchoring Kit For Machine Tending BaseRS-MT-100-0002 - 130 X 130 X 60 mmShips next day	1
	25mm Standoff Kit for Machine Tending DrawerRS-MT-100-0025 - 84 X 14 X 35 mmShips next day	4
	UR Teach Pendant Mounting BracketST-RB-002-0003 - 30 X 223 X 100 mmShips next day	1
	OnRobot Robot Kit with Compute BoxST-RB-028-0002 - 112 X 100 X 33 mmShips next day	1
	OnRobot Dual Tool ChangerST-RB-028-0003 - 127 X 71 X 96 mmShips next day	1
	OnRobot RG6 2-finger Underactuated GripperST-RB-028-0007 - 262 X 212 X 42 mmShips in 13 days	2
	Machine Tending Drawer Part Blank 3/8 PolyEco"ST-RB-051-0040 - 520 X 700 X 9 mmShips in 10 days	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	3
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	3
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	19
	M6 x 1.0 x 12mm, Low Profile Socket HeadHW-FN-005-0012 - 16 X 10 X 10 mmShips next day	5
	M6 x 1.0 x 14mm, Low Profile Socket HeadHW-FN-005-0014 - 18 X 10 X 10 mmShips next day	5
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	26
	M10 x 1.5 x 35mm Standard Hex Socket Head, Class 12.9HW-FN-019-0035 - 45 X 16 X 16 mmShips next day	7
	6mm x 10mm Dowel PinHW-FN-036-0010 - 6 X 6 X 10 mmShips next day	4
	8mm x 10mm Undersized Dowel PinHW-FN-038-0010 - 10 X 8 X 8 mmShips next day	2
	3/8 x 3" Concrete Screw AnchorHW-FN-051-2076 - 80 X 14 X 14 mmShips next day	9
