YuMi Mobile Cart Cognizant

Community design

Cognizant India

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-244511
Weight	89.84 kg
Dimensions (L x W x H)	732 x 1069 x 995 mm
Application	Other Equipment
Assembly Time	07:30

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	High Strength Threadlocker (10 ml)HW-CS-001-0001 - 29 X 29 X 91 mmObsolete	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	2
	Ergonomic HandleHW-HD-001-0001__2 - 160 X 30 X 60 mmShips next day	1
	Spring-Loaded Grab CatchHW-LT-002-0001 - 90 X 90 X 18 mmObsolete	1
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	2
	M8 x 1.25mm Helicoidal TapHW-TL-001-0001 - 75 X 8 X 8 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	12
	Blickle Swivel Leveling Caster Wheel with Fixed Pedal, 200kg CapacityMO-WL-003-0001 - 175 X 85 X 118 mmShips next day	4
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips in 7 days	2
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips in 7 days	1
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips in 7 days	2
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips in 7 days	3
	45x45mm (630mm) Aluminum ExtrusionST-EXT-001-0630 - 630 X 45 X 45 mmShips in 7 days	2
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips in 7 days	1
	45x90mm (540mm) Aluminum ExtrusionST-EXT-002-0540 - 540 X 45 X 90 mmShips next day	3
	45x90mm (765mm) Aluminum ExtrusionST-EXT-002-0765 - 765 X 45 X 90 mmShips next day	6
	45x90mm (945mm) Aluminum ExtrusionST-EXT-002-0945 - 945 X 45 X 90 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	6
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	4
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	8
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	2
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	2
	Two-Way Extended Door ConnectorST-GP-004-0006 - 83 X 45 X 45 mm	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	21
	M8 Countersink Hole for 3/8 inch PanelsST-PN-010-0008 - 0 X 0 X 0 mmObsolete	8
	Door HingeST-SE-005-0001 - 67 X 67 X 19 mmShips next day	2
	540x450mm Aluminum Tooling PlateST-SP-002-0004 - 540 X 450 X 11 mmShips in 2 days	1
	Premium Caster Wheel Mounting PlateST-SP-010-0001 - 100 X 90 X 11 mmShips next day	4
	Acrylic Panel, White 0.22'' [5.6mm]ST-PN-008-0002__2 - 0.4813 m²Ships in 3 days	1
	Acrylic Panel, White 0.22'' [5.6mm]ST-PN-008-0002__2 - 0.4813 m²Ships in 3 days	1
	Acrylic Panel, White 0.22'' [5.6mm]ST-PN-008-0002__2 - 0.3360 m²Ships in 3 days	1
	Acrylic Panel, White 0.22'' [5.6mm]ST-PN-008-0002__2 - 0.4758 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.4252 m²Ships in 3 days	1
	Panel Holding StripST-PN-014-0001__2 - 10170 X 9 X 15 mmObsolete	1
	ST-SP-244511-01IMP-486273_498474 - 16 X 720 X 540 mmShips next day	1

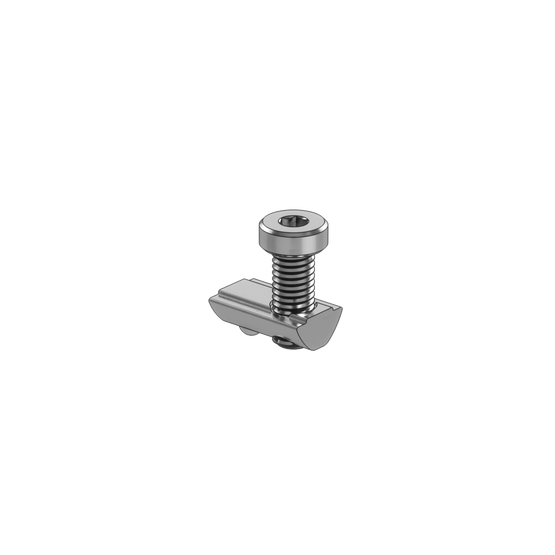

	M8 x 20mm Screw With T-NutHW-FN-001-0020 - 25 X 13 X 22 mmObsolete	10
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	229
	M8 x 16mm ScrewHW-FN-003-0016 - 21 X 13 X 13 mmShips next day	9
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	194
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	3
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	17
	M8 x 50mm ScrewHW-FN-003-0050 - 55 X 13 X 13 mmShips next day	9
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	9
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	3
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	2
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	2
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	2
	5mm x 250mm Cable Tie (bag of 25) HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	1
