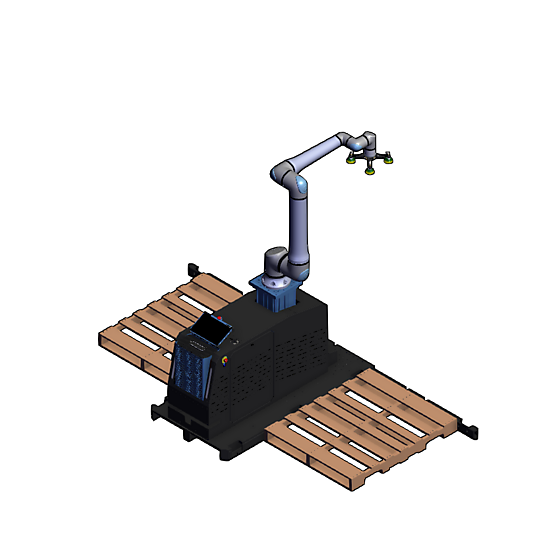

UR20 Fixed Pedestal Rapid Series Palletizer 3

Vention official

Deploy Vention's UR20 palletizer machine within days to your end of line packaging operations. Designed with a compact base, it includes the hardware and software required to palletize side by side at high throughputs. Configure your machine and increase your production!

Spec Attribute	Spec Value
Technical Specifications
Design Number	PZ-CB-490007
Weight	642.37 kg
Dimensions (L x W x H)	2072 x 3340 x 2256 mm
Application	Packaging
Assembly Time	10:45

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineApp - PalletizerCE-SW-002-0004 - 40 X 10 X 5 mmShips next day	1
	Operate 1-Year Bundle for Rapid Series PalletizerCE-SW-002-0017 - 0 X 0 X 0 mmShips next day	1
	Remote Support HeadsetCE-TP-015-0000 - 17 X 8 X 18 mmShips next day	1
	Flange Adapter for UR20 / UR30 (ISO80 to ISO50)MO-GR-015-0080 - 22 X 100 X 100 mmShips next day	1
	Vention Modular Vacuum Gripper, Medium (75mm Cups)MO-GR-100-1075 - 295 X 295 X 93 mmShips next day	1
	Universal Robots UR20 Collaborative Robot ArmPR-UR-001-0575 - 1000 X 1000 X 500 mmShips next day	1
	RSP 3 Single-Pick Pneumatic Controls & TubingRS-PL-030-0010 - 539 X 252 X 350 mmComing soon	1

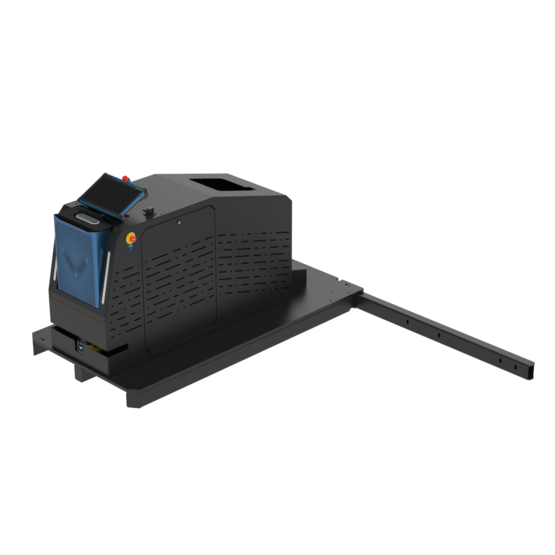

	RSP 3 UR20 Fixed PedestalRS-PL-031-0001 - 1735 X 900 X 890 mmComing soon	1
	Heavy Duty Cobot Pedestal, 945 mmST-RB-033-0945__2 - 405 X 405 X 855 mmShips next day	1
	Multi-Robot Mounting Plate 315 x 315 mmST-RB-100-0315__2 - 313 X 313 X 27 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	34
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	7
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	34
	M10 x 1.5 x 35mm Standard Hex Socket Head, Class 12.9HW-FN-019-0035 - 45 X 16 X 16 mmShips next day	7
	6mm x 10mm Dowel PinHW-FN-036-0010 - 6 X 6 X 10 mmShips next day	2
	8mm x 14mm Undersized Dowel PinHW-FN-038-0014 - 14 X 8 X 8 mmComing soon	2
