UR10e Rapid Series Telescopic Column Palletizer

Vention official

Deploy Vention's UR10e palletizer machine within days to your end of line packaging operations. Designed with a telescopic pedestal and compact base, it includes the hardware and software required to palletize side by side at high throughputs. Configure your machine and increase your production!

Spec Attribute	Spec Value
Technical Specifications
Design Number	PZ-CB-341839
Weight	339.78 kg
Dimensions (L x W x H)	1742 x 863 x 1683 mm
Application	Packaging
Assembly Time	14:51

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Sensor and Reflector BracketCE-HW-001-0003__3 - 43 X 44 X 37 mmShips next day	3
	Diffuse Keyence PR-G M18 NPN/PNP Sensor (Sn 500)CE-SN-007-0007 - 110 X 110 X 30 mmShips next day	2
	Retro-Reflective Keyence PR-G M18 NPN/PNP Sensor with Reflective Tape (Sn 1100)CE-SN-007-0016 - 110 X 110 X 30 mmShips next day	1
	MachineApp - PalletizerCE-SW-002-0004 - 40 X 10 X 5 mmShips next day	1
	Remote Support HeadsetCE-TP-015-0000 - 17 X 8 X 18 mmShips next day	1
	Large Cobot Dress Pack with Flange MountHW-CA-005-0005 - 360 X 360 X 180 mmShips next day	1
	Vention Modular Vacuum Gripper, Small (52mm Cups)MO-GR-100-0052 - 143 X 143 X 93 mmShips in 3 days	1
	Telescopic Lift Column for MMv2MO-LM-050-0830__2 - 315 X 315 X 830 mmShips next day	1
	PiClassic Vacuum GeneratorPR-PB-001-0001 - 193 X 64 X 150 mmShips next day	1
	Universal Robots UR10e Collaborative Robot ArmPR-UR-010-0000 - 915 X 760 X 485 mmShips in 3 weeks	1
	Slotted 45mm x 90mm Aluminum GussetST-GP-003-0008 - 42 X 44 X 89 mmShips next day	1

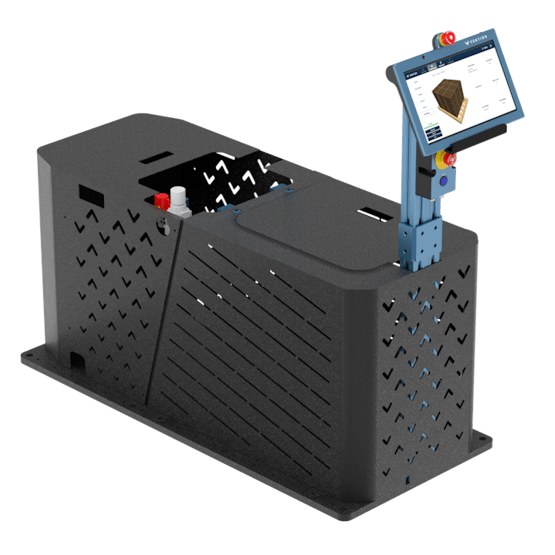

	Rapid Series Palletizer Base for Lift ColumnST-RB-040-0101 - 1200 X 540 X 600 mmShips in 5 days	1
	Pallet LocatorST-SP-019-0001__2 - 552 X 57 X 90 mmShips next day	7
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	51
	M5 Drop-in Spring Loaded T-NutHW-FN-002-0006 - 22 X 13 X 7 mmShips next day	3
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	30
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	15
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	7
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	45
	M8 x 1.25 x 25 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1025 - 33 X 13 X 13 mmShips in 11 days	5
	M8 x 1.25 x 30 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1030 - 38 X 13 X 13 mmShips in 9 days	5
	M5-0.8 X 12mm Screw - Low ProfileHW-FN-008-0012 - 15 X 8 X 8 mmShips next day	3
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	30
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	2
