UR10e Part Presenter for Machine Tending with Area Scanners

Vention official

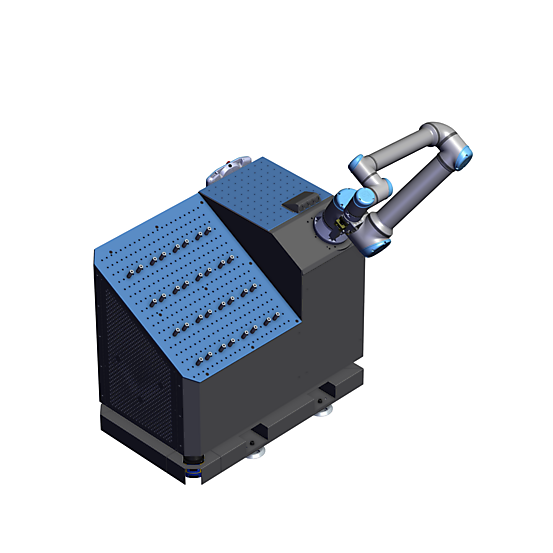

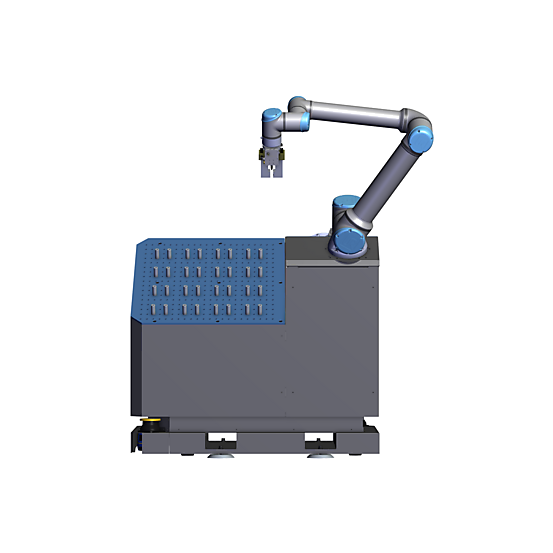

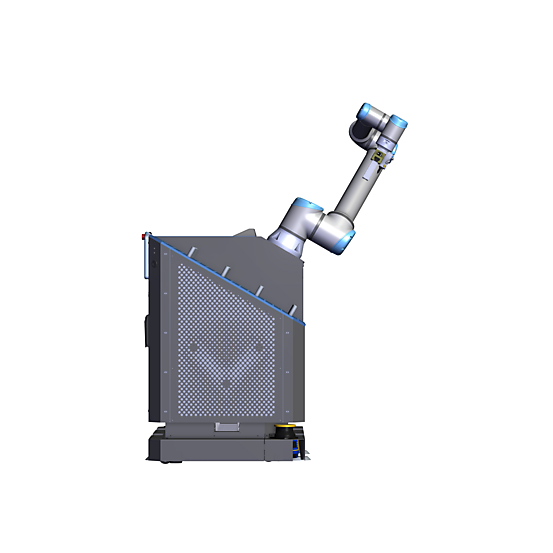

Mobile machine tending workstation with UR10eL robot. This design includes Vention's Machine Tending Hardware kit, featuring ip to 0.6 m2 of part locating area. Attached to the robot tool flange is a Schunk single MTB Pneumatic gripper with 10mm jaw strokes. The workstation is 1185mm wide and 720mm long. The robot controller and all other control components are installed within the cart. All the parts shown are included.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-RC-463302
Weight	417.56 kg
Dimensions (L x W x H)	1523 x 1349 x 1727 mm
Application	Manufacturing
Assembly Time	07:03

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Schunk MTB Single Gripper 10mm Stroke Pneumatic Gripper Kit PR-SK-200-0110 - 120 X 104 X 116 mmShips in 3 weeks	1
	Universal Robots UR10e Collaborative Robot ArmPR-UR-010-0000 - 915 X 760 X 485 mmShips in 17 days	1

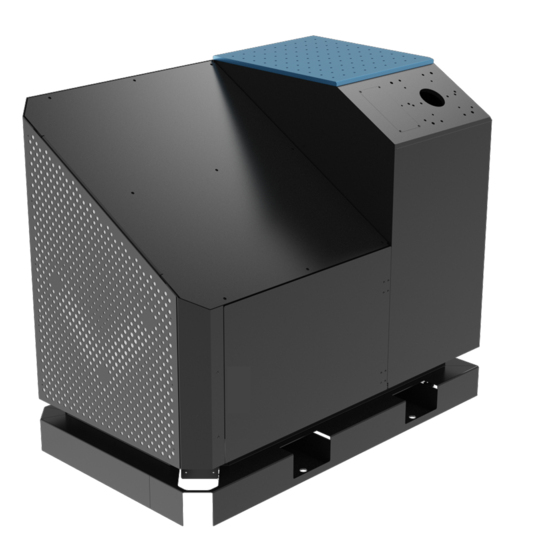

	Part Presenter Base for Machine TendingRS-MT-000-0101 - 1185 X 720 X 1055 mmShips in 7 days	1
	UR Safety add-on for Machine TendingRS-MT-001-0011 - 206 X 153 X 115 mmShips in 4 days	1
	Floor Anchoring Kit For Machine Tending BaseRS-MT-100-0002 - 130 X 130 X 60 mmShips next day	1

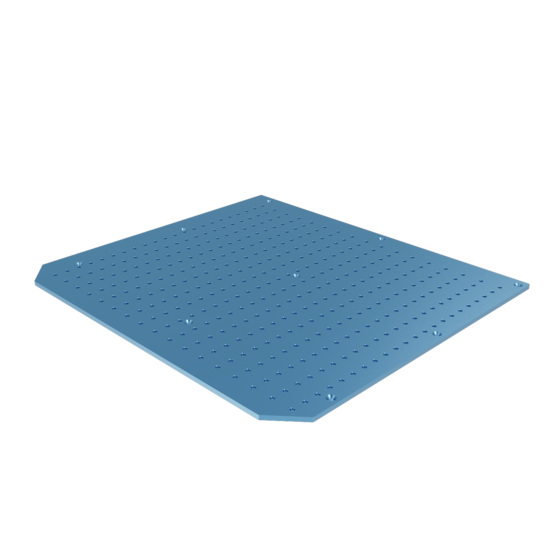

	Machine Tending Part Presenter Pin GridRS-MT-101-0001 - 826 X 739 X 9 mmShips in 3 weeks	1

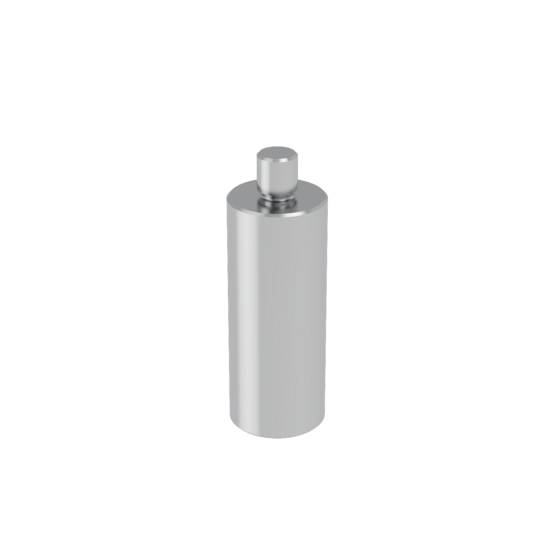

	10x Part Presenter Pin Standoff, 50mm Shoulder LengthRS-MT-103-0050 - 56 X 60 X 80 mmShips next day	4
	UR 3PE Teach Pendant Mounting BracketST-RB-002-0006 - 225 X 41 X 146 mmShips in 2 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	3
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	3
	M8 x 1.25 x 25 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1025 - 33 X 13 X 13 mmShips next day	5
	M8 x 1.25 x 30 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1030 - 38 X 13 X 13 mmShips next day	5
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	11
	3/8 x 3" Concrete Screw AnchorHW-FN-051-2076 - 80 X 14 X 14 mmShips next day	9
