scooter

Community design

I was board I did not know what kind of machine to build so I built a scooter. :)

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-58334
Weight	9.93 kg
Dimensions (L x W x H)	1195 x 593 x 755 mm
Application	Other Equipment
Assembly Time	01:32

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	6
	45x45mm Hinge, 12mm Pin with BushingsMO-HG-002-0001__2 - 68 X 45 X 45 mmShips next day	2
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips next day	1
	Blickle Fixed Caster Wheel, 200kg CapacityMO-WL-001-0003 - 100 X 85 X 125 mmShips next day	3
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips in 7 days	2
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips in 7 days	1
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips in 7 days	1
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips in 7 days	1
	45x45mm (900mm) Aluminum ExtrusionST-EXT-001-0900 - 900 X 45 X 45 mmShips in 7 days	1

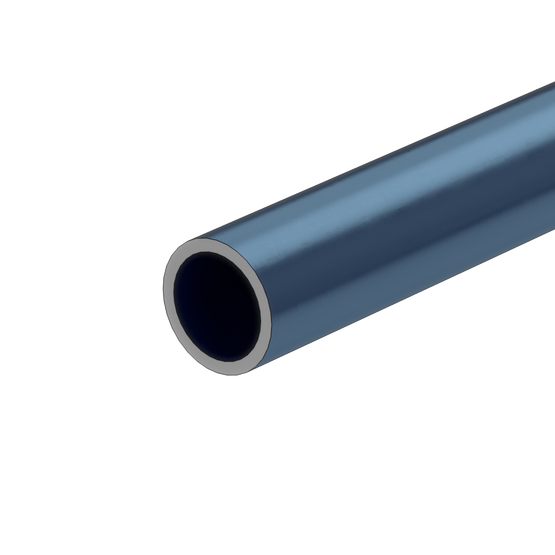

	20mm OD Round (585mm) Aluminum ExtrusionST-EXT-003-0585 - 585 X 0 X 20 mmObsolete	1
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	2
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips in 16 days	3
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	2
	45 Degree Inline Connector with LocatorsST-HP-003-0003 - 45 X 45 X 53 mm	2

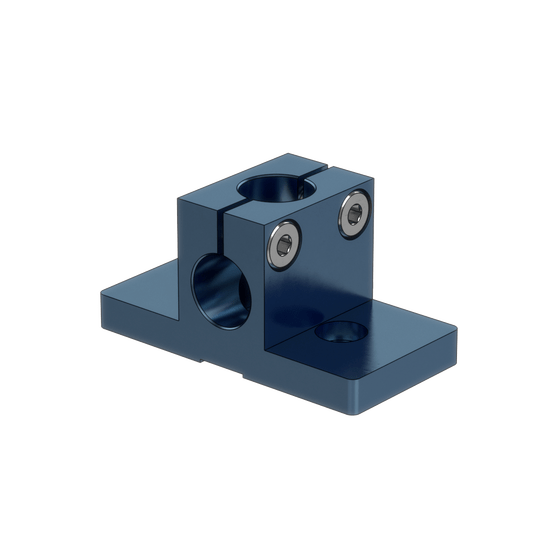

	Aluminum Tube HolderST-SP-004-0001 - 45 X 135 X 45 mmObsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	49
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	15
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	30
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	3
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	3
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	3
