FANUC CRX on Mobile Pedestal

Vention official

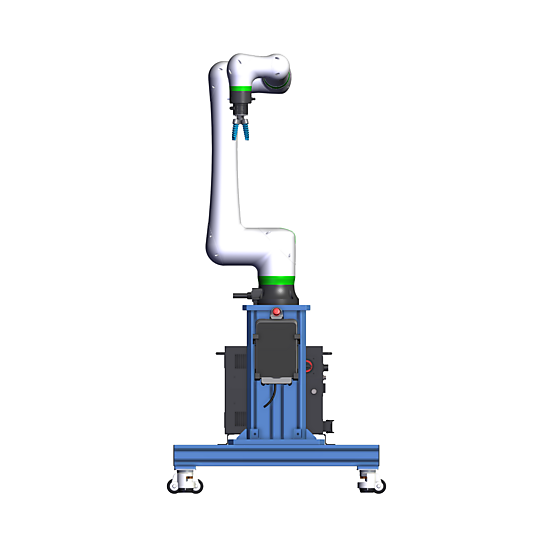

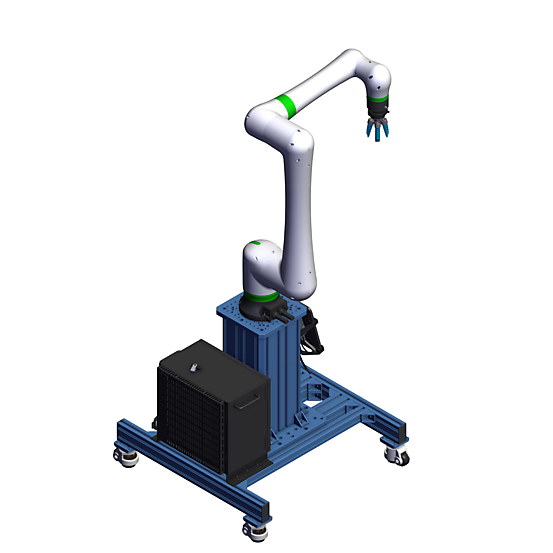

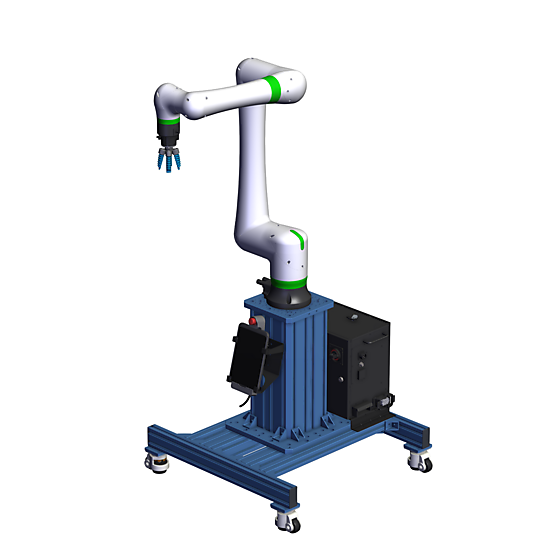

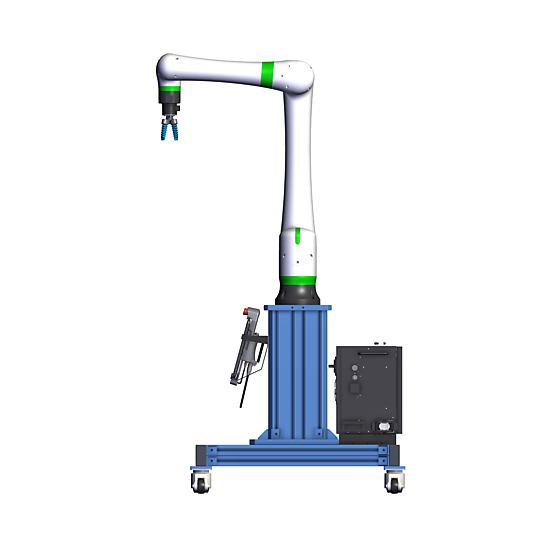

Mobile pedestal with FANUC CRX-10iA/L. Custom mounting brackets are installed on the pedestal to fix the controller and the pendant. Four (4) caster wheels can allow the operator to easily move the pedestal. All parts shown are included. This configuration is for collaborative use only. If you want to use the robot at full speed, please contact Vention to confirm the stability of the pedestal.

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-PP-137442
Weight	108.22 kg
Dimensions (L x W x H)	1047 x 893 x 1848 mm
Application	Assembly
Assembly Time	07:48

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips in 12 days	4
	Blickle Swivel Leveling Caster Wheel with Adjustment Wheel, 500kg CapacityMO-WL-003-0002 - 125 X 90 X 104 mmShips next day	4
	FANUC CRX-10iA/L Collaborative Robot ArmPR-FA-001-0500 - 1168 X 1118 X 610 mmShips in 7 weeks	1
	Grip SHW063 Manual Tool Changer SetPR-GR-063-0000 - 320 X 230 X 115 mmShips next day	1

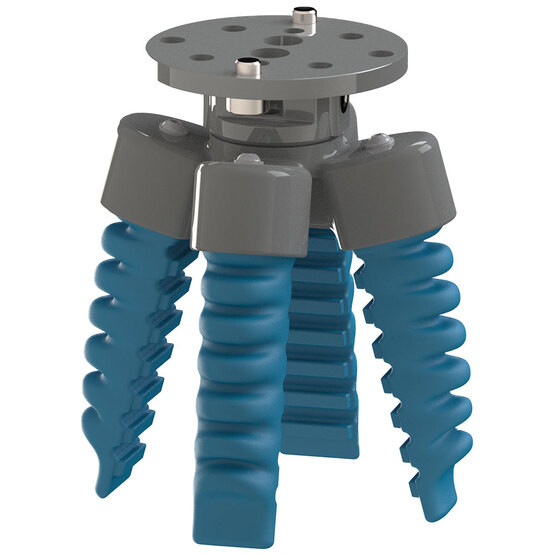

	Soft-Gripping 15 Degree Four Finger Centric SoftGripperPR-SG-004-0015 - 300 X 200 X 150 mmShips next day	1
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips next day	2
	45x90mm (855mm) Aluminum ExtrusionST-EXT-002-0855 - 855 X 45 X 90 mmShips next day	2
	90x90mm (765mm) Aluminum ExtrusionST-EXT-005-0765 - 765 X 90 X 90 mmShips next day	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	20
	FANUC CRX Teach Pendant Mounting BracketST-RB-006-0005 - 120 X 198 X 118 mmShips next day	1
	FANUC CRX Controller BracketST-RB-006-0009__2 - 495 X 240 X 45 mmShips next day	1
	OnRobot Tool Flange Connection for FANUC CRXST-RB-028-0011 - 0 X 0 X 0 mmShips next day	1
	Heavy Duty Cobot Pedestal, 585 mmST-RB-033-0585__2 - 405 X 405 X 585 mmShips in 8 days	1
	Caster Wheel Mounting PlateST-SP-010-0003 - 125 X 88 X 12 mmShips next day	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	99
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	30
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	58
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	13
	M8 x 1.25 x 35 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1035 - 43 X 13 X 13 mmShips next day	5
	M8 x 1.25 x 40 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1040 - 48 X 13 X 13 mmShips next day	5
