Basic Fence Panel

Community design

This is a one panel assembly. Approx 48 x 84". Based on Vention's primary design. Cost is slightly higher than panels available elswhere, but reducing the necessary suppliers is a good thing.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-SF-33283
Weight	25.08 kg
Dimensions (L x W x H)	185 x 1471 x 2123 mm
Application	Manufacturing
Assembly Time	00:59

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001 - 12 X 45 X 45 mmObsolete	2
	45x45mm (2115mm) Aluminum ExtrusionST-EXT-001-2115 - 2115 X 45 X 45 mmShips in 7 days	2
	Floor Anchoring Mount for 45x45mm and 45x90mm ExtrusionsST-SE-001-0003 - 180 X 180 X 94 mmShips next day	2

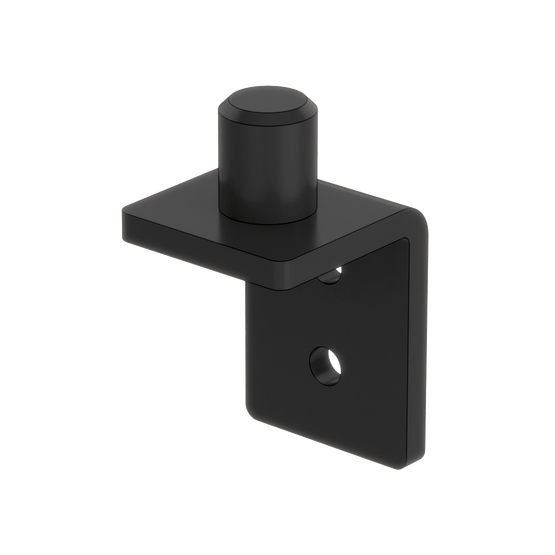

	Mounting Bracket for Safety Enclosure PanelST-SE-002-0003 - 45 X 43 X 80 mmObsolete	4

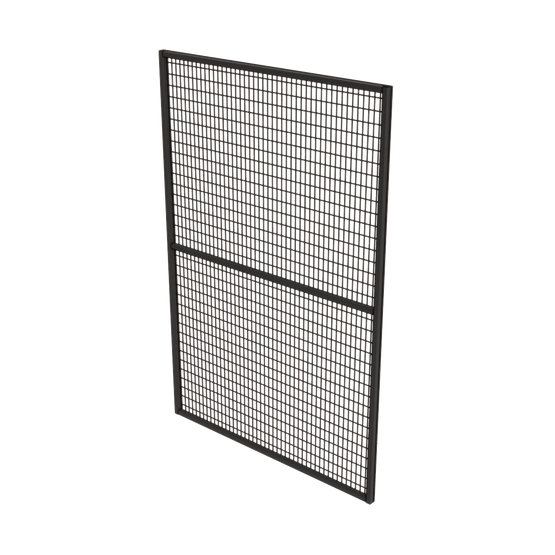

	Wiremesh Panel for Safety Enclosure, 1220mm x 1830mmST-SE-003-0001 - 31 X 1219 X 1829 mmObsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	28
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	19
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	9
