Universal Robots Station for UR5, with Workspace (customized)

Community design

Universal Robot station for UR5 with an aluminum base plate work space of 405x495mm. Table height is 720mm with adjustable leveling feet 80mm pad. There is a raised shelf for the controller box. Vention is a certified partner of Universal Robots (customized)

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-RB-6663
Weight	42.38 kg
Dimensions (L x W x H)	520 x 858 x 907 mm
Application	Manufacturing
Assembly Time	03:49

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001 - 12 X 45 X 45 mmObsolete	2

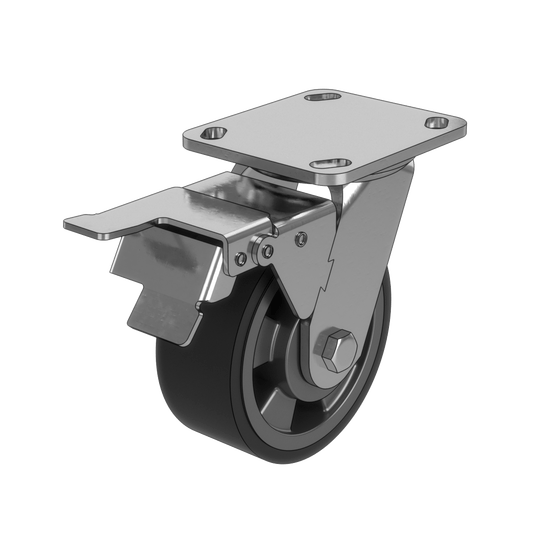

	Swivel Caster Wheel with Brake, 260kg CapacityMO-WL-002-0002 - 200 X 100 X 164 mmObsolete	4
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips next day	5
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	4
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips next day	4
	45x90mm (405mm) Aluminum ExtrusionST-EXT-002-0405 - 405 X 45 X 90 mmShips next day	2
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	16
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	2
	225x225mm UR5 Mounting plate, for Universal RobotsST-RB-001-0003 - 225 X 225 X 22 mmObsolete	1

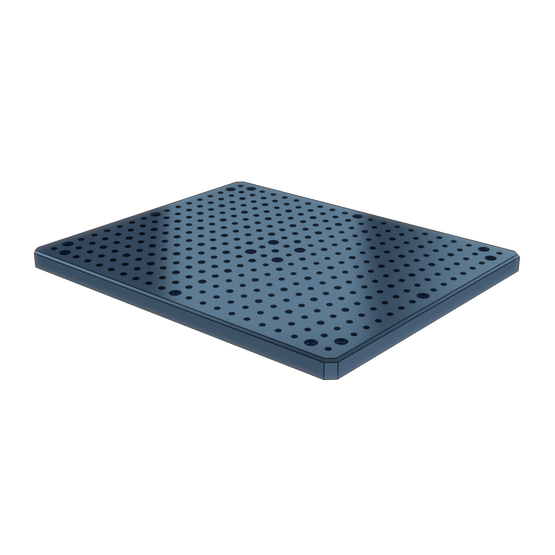

	405x495mm Aluminum Tooling PlateST-SP-002-0002 - 495 X 405 X 22 mmObsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	141
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	136
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	5
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmShips next day	17
