ST-RB-001-0003

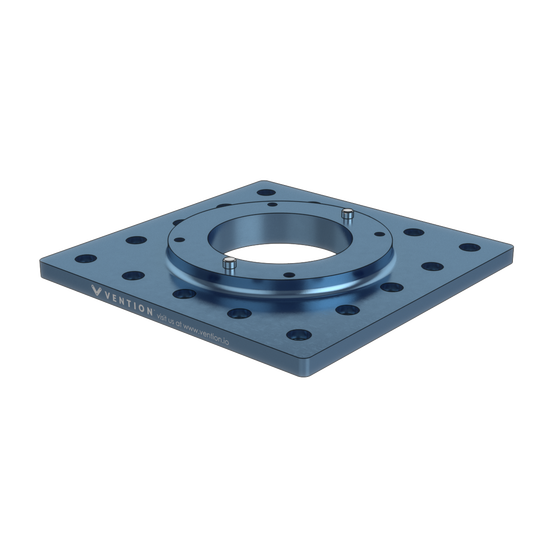

225x225mm UR5 Mounting plate, for Universal Robots
Vention's UR5 mounting plate enables fast and easy installation of a UR5 robot to any custom assembly. Outer dimensions are 225mm x 225mm. Certified by Universal Robots.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| Robot Mounting |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | ST-RB-001-0003 |
| Unit Price | $200.20 USD |
| Weight | 1.582 kg |
| Dimensions (L x W x H) | 225 x 225 x 22.5 mm |
| Material | 6061-T6 |
| Surface Finish | Dark blue anodized, 6um |
| Standards | Dowel pins are made out of stainless steel |
| Associated Fasteners | 16 x HW-FN-002-0001, 16 x HW-FN-003-0018 |
| Light Duty Fasteners | 16 x HW-FN-002-0001, 16 x HW-FN-003-0012 |
| Spec Attribute | Spec Value |
|---|---|
| Other | |
| Mounting | 4x M8, Pitch Circle Diameter = 132 |
$200.20 USD
Looking for more details?
This part requires custom specifications. Contact our sales team for tailored pricing and detailed information to ensure it fits your project perfectly.
