Robot 7th axis - Telescopic Robot Base

Vention official

Vention 7th axis for robot arms compatible with Fanuc, Universal Robots and More. Ideal for robotic palletizing applications where tall pallets are being produced.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-EX-226548
Weight	74.07 kg
Dimensions (L x W x H)	533 x 422 x 830 mm
Application	Manufacturing
Assembly Time	02:57

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion AI Robot ProCE-CL-031-0000 - 265 X 337 X 206 mmShips in 4 weeks	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	3
	14oz Grease Gun KitHW-TL-005-0000 - 400 X 150 X 75 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	5
	Multi-Purpose Grease LB 8034, 14oz TubeIN-CS-002-0001 - 235 X 54 X 54 mmShips in 2 days	1
	41mm Wide Cable Drag Chain (1244mm)MO-DC-041-1244 - 1244 X 41 X 35 mmShips in 2 days	1

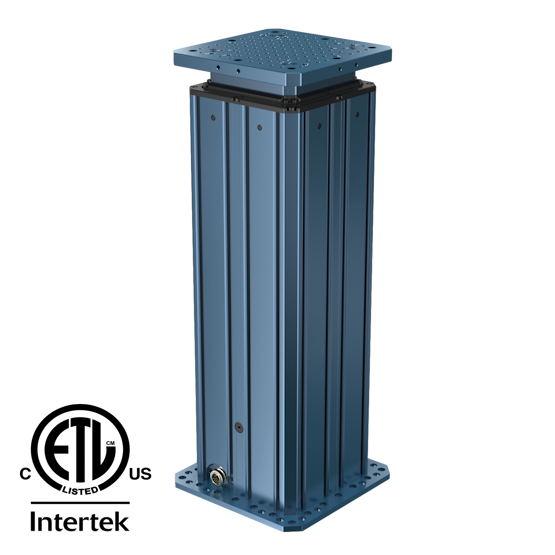

	Telescopic Lift Column for MMv2MO-LM-050-0830__2 - 315 X 315 X 830 mmShips in 6 days	1
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips in 7 days	1
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips in 7 days	1
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	3
	Cobot Pedestal Wedge Anchors (Bag of 8), 1/2 x 4 1/2 inST-RB-033-0002 - 150 X 20 X 150 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	33
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	27
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	3
	M6 1.0 x 12mm Flat Head ScrewHW-FN-005-4012 - 12 X 12 X 12 mmShips next day	5
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	5
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips next day	1
	5mm x 250mm Cable Tie (bag of 25) HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	1
