Fixture Table

Community design

UR part presentation pin table

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-IC-19366
Weight	74.76 kg
Dimensions (L x W x H)	1026 x 855 x 993 mm
Application	Material Handling
Assembly Time	03:55

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	4
	Blickle Swivel Leveling Caster Wheel with Adjustment Wheel, 500kg CapacityMO-WL-003-0002 - 125 X 90 X 104 mmShips next day	4
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips next day	3
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips next day	4
	45x45mm (900mm) Aluminum ExtrusionST-EXT-001-0900 - 900 X 45 X 45 mmShips next day	2
	45x90mm (405mm) Aluminum ExtrusionST-EXT-002-0405 - 405 X 45 X 90 mmShips next day	2
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	3
	45x90mm (990mm) Aluminum ExtrusionST-EXT-002-0990 - 990 X 45 X 90 mmShips next day	2
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	2
	2x4 Hole Aluminum Assembly Plate, with LocatorsST-HP-002-0002 - 6 X 178 X 88 mmShips in 2 days	1
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	23
	405x495mm Aluminum Tooling PlateST-SP-002-0002 - 495 X 405 X 22 mmObsolete	4
	Locating Fixture with Quick Release PinST-SP-009-0002__2 - 43 X 88 X 142 mmShips next day	2
	Premium Caster Wheel Mounting Plate for MO-WL-003-0002ST-SP-010-0002 - 90 X 90 X 11 mmObsolete	4

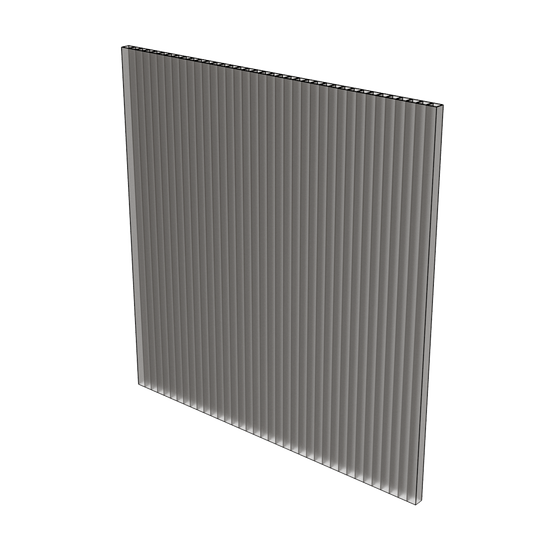

	Multi-wall PC Panel, 8mmST-PN-003-0001 - 0.3572 m²Obsolete	1
	Multi-wall PC Panel, 8mmST-PN-003-0001 - 0.3235 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	124
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	17
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	83
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	17
	M8 x 50mm ScrewHW-FN-003-0050 - 55 X 13 X 13 mmShips next day	9
