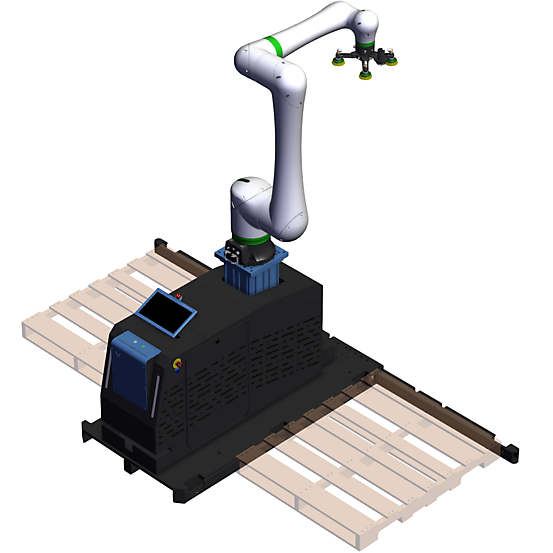

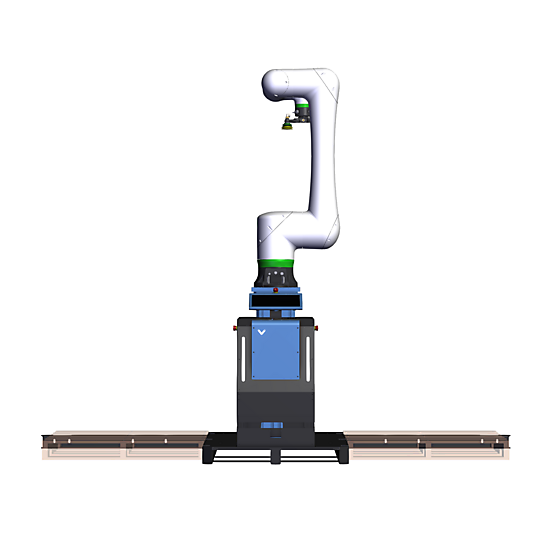

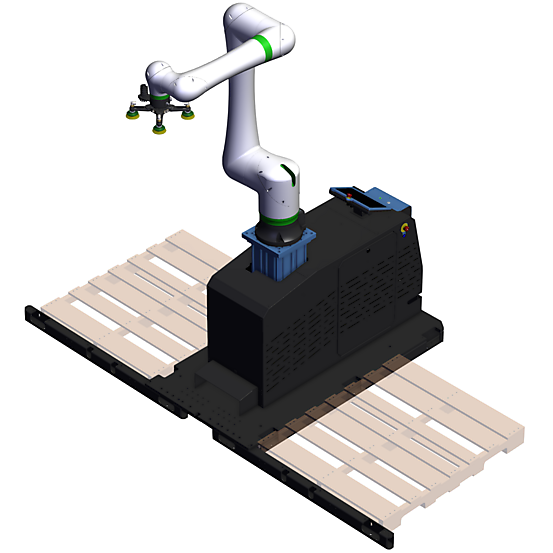

CRX30 Fixed Pedestal Rapid Series Palletizer 2

Vention official

Deploy Vention's CRX30iA palletizer machine within days to your end of line packaging operations. Designed with a compact base including the hardware and software required to palletize side by side at high throughputs. Configure your machine and increase your production!

Spec Attribute	Spec Value
Technical Specifications
Design Number	PZ-CB-456317
Weight	701.05 kg
Dimensions (L x W x H)	1935 x 3140 x 2500 mm
Application	Packaging
Assembly Time	12:06

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineApp - PalletizerCE-SW-002-0004 - 40 X 10 X 5 mmShips next day	1
	Operate 1-Year Bundle for Rapid Series PalletizerCE-SW-002-0017 - 0 X 0 X 0 mmShips next day	1
	Remote Support HeadsetCE-TP-015-0000 - 17 X 8 X 18 mmShips next day	1
	Large Cobot Dress Pack with Flange MountHW-CA-005-0005 - 360 X 360 X 180 mmShips next day	1
	Vention Modular Vacuum Gripper, Medium (75mm Cups)MO-GR-100-1075 - 295 X 295 X 93 mmShips next day	1
	FANUC CRX-30iA Collaborative Robot ArmPR-FA-001-0602 - 1270 X 1372 X 1727 mmShips next day	1
	Fanuc Add-On Bundle for Palletizer MachineAppPR-FA-002-0028 - 0 X 0 X 0 mmShips next day	1
	Rapid Series Palletizer 2 Single-Pick Pneumatic Controls & TubingRS-PL-000-0010 - 539 X 252 X 350 mmShips next day	1
	RSP 2 CRX-30iA Fixed PedestalRS-PL-002-0001 - 1735 X 900 X 890 mmShips in 4 weeks	1
	Heavy Duty Cobot Pedestal, 945 mmST-RB-033-0945__2 - 405 X 405 X 855 mmShips next day	1
	Multi-Robot Mounting Plate 315 x 315 mmST-RB-100-0315__2 - 313 X 313 X 27 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	34
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	34
	M12 x 1.75 x 50 mm Standard Hex Socket Head, Class 12.9HW-FN-034-0050 - 62 X 18 X 18 mmShips next day	5
