Straight O-Ring Conveyor with AC Motor and VFD kit

Vention official

Modular powered straight O-ring roller conveyor section with a total length of 1575mm and a width of 585mm, powered by our AC motor and VFD kits. The height of the roller conveyor segment can be customized to suit your application's needs. Use this segment in conjunction with our other O-ring roller conveyor modules to customize the conveyor's layout to your application and factory floor specifications. Motors, sensors and control modules included. MachineMotion not included.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-CV-396697
Weight	113.33 kg
Dimensions (L x W x H)	1580 x 688 x 596 mm
Application	Material Handling
Assembly Time	04:35

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	M12 Cable for Digital I/O Module v2 - Female to 3x Female (5m)CE-CA-051-5000 - 110 X 110 X 30 mmShips next day	2
	Digital I/O Module v2CE-MD-001-0000__2 - 150 X 88 X 60 mmShips next day	1
	Diffuse Keyence PR-G M18 NPN/PNP Sensor (Sn 500)CE-SN-007-0007 - 110 X 110 X 30 mmShips next day	3
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	18
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	2
	Motor Adaptor for O-Ring ConveyorMO-CV-029-0001 - 92 X 85 X 85 mmShips next day	2
	Straight 2-Zone O-Ring Conveyor (1575mm L x 585mm W)MO-CV-030-0001 - 1575 X 675 X 199 mmShips in 5 days	1

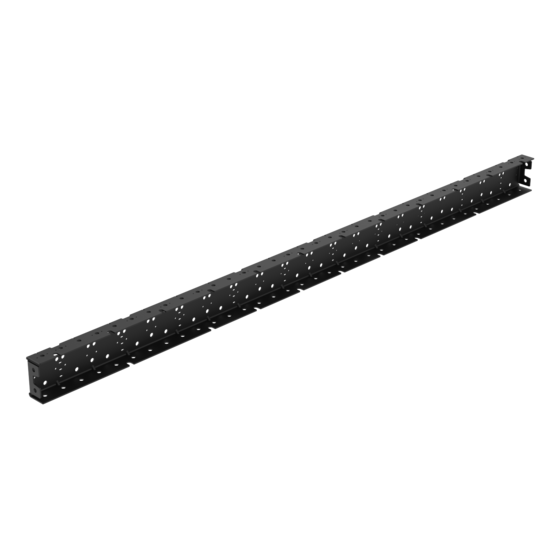

	C-Channel Segment for Roller Conveyor (1575mm Length)MO-CV-030-0003 - 1575 X 45 X 90 mmShips in 18 days	2
	Extrusion Mounting Bracket for Roller Conveyor (Angle Adjustable)MO-CV-030-0006 - 180 X 49 X 112 mmShips in 17 days	4
	Floor Anchoring Bracket for Roller Conveyor (Height Adjustable)MO-CV-030-0007 - 145 X 48 X 228 mmShips in 15 days	4
	1/2 HP AC Motor and VFD Kit, Canada and USAMO-SM-022-0000 - 385 X 215 X 170 mmShips next day	2
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips next day	4
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	4
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips next day	1
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips next day	4
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	3
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	1
	45x90mm (675mm) Aluminum ExtrusionST-EXT-002-0675 - 675 X 45 X 90 mmShips next day	1
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	8
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	12
	1x IO Module E-Stop PowerOff Plug (CE-SA-006-0001)IMP-796893_809093 - 204 X 204 X 204 mmShips next day	2
	Control Device Safety Adapter (mm v1.x, mm v2.x)CE-SA-006-0001 - 94 X 39 X 24 mmShips next day	2
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	62
	M8 Drop-in T-nut with M5 set screwHW-FN-002-0008 - 21 X 13 X 8 mmShips next day	9
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	38
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	87
	M8 X1.25 Serrated Flange LocknutHW-FN-031-0002 - 17 X 17 X 8 mmShips next day	47
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	5
	M8 Split Lock Washer, with 12.7mm ODHW-WS-001-1003 - 12 X 12 X 2 mmShips next day	47
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips next day	1
