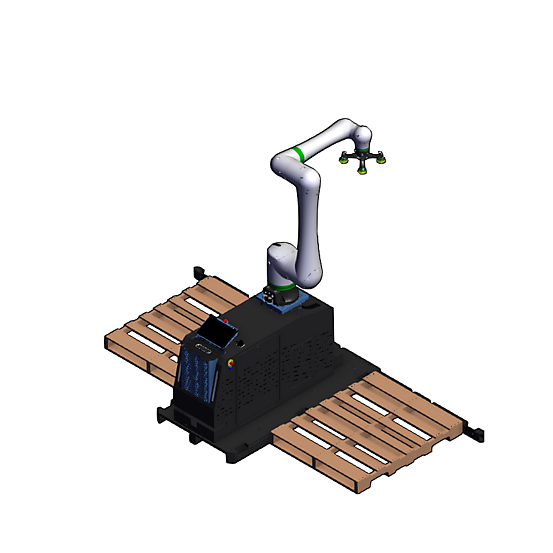

CRX-30iA Telescopic Column Rapid Series Palletizer 3

Vention official

Deploy Vention's CRX30iA palletizer machine within days to your end of line packaging operations. Designed with a telescopic column and compact base, it includes the hardware and software required to palletize side by side at high throughputs. Configure your machine and increase your production!

Spec Attribute	Spec Value
Technical Specifications
Design Number	PZ-CB-490580
Weight	741.13 kg
Dimensions (L x W x H)	1933 x 3340 x 2385 mm
Application	Packaging
Assembly Time	11:51

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineApp - PalletizerCE-SW-002-0004 - 40 X 10 X 5 mmShips next day	1
	Operate 1-Year Bundle for Rapid Series PalletizerCE-SW-002-0017 - 0 X 0 X 0 mmShips next day	1
	Remote Support HeadsetCE-TP-015-0000 - 17 X 8 X 18 mmShips next day	1
	Vention Modular Vacuum Gripper, Medium (75mm Cups)MO-GR-100-1075 - 295 X 295 X 93 mmShips next day	1
	Telescopic Lift Column for MMAIMO-LM-050-0830__3 - 315 X 315 X 830 mmShips in 2 weeks	1
	FANUC CRX-30iA Collaborative Robot ArmPR-FA-001-0602 - 1270 X 1372 X 1727 mmShips next day	1
	Fanuc Add-On Bundle for Palletizer MachineAppPR-FA-002-0028 - 0 X 0 X 0 mmShips next day	1
	RSP 3 Single-Pick Pneumatic Controls & TubingRS-PL-030-0010 - 539 X 252 X 350 mmComing soon	1

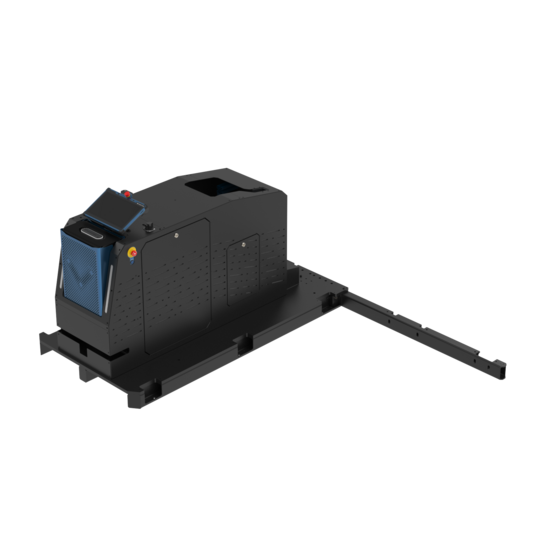

	RSP 3 CRX-30iA Telescopic ColumnRS-PL-032-0011 - 1735 X 900 X 890 mmComing soon	1
	Multi-Robot Mounting Plate 315 x 315 mmST-RB-100-0315__2 - 313 X 313 X 27 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	34
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	13
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	21
	M12 x 1.75 x 50 mm Standard Hex Socket Head, Class 12.9HW-FN-034-0050 - 62 X 18 X 18 mmShips in 3 days	5
