Parts Library More Toggle menu Universal Robots Product Details PR-UR-015-0000

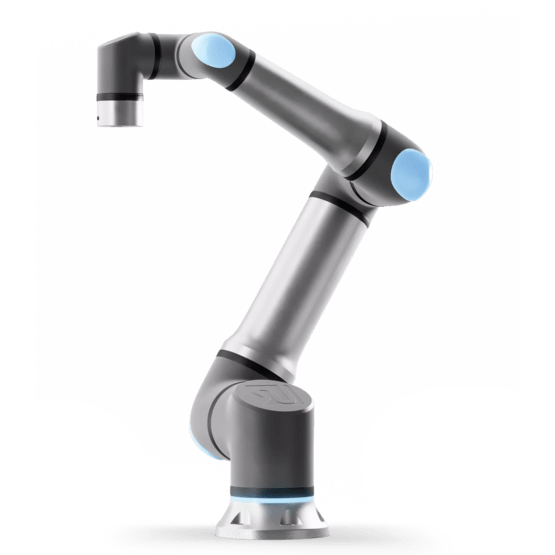

Universal Robots UR15 Collaborative Robot Arm Vention The UR15 is the most lightweight member of the UR Series surpassing the expectations for the most sought-after size representing a sweet spot within the collaborative robot market offering speed and dependability that easily fits in a variety of environments.
Technical Documentation Technical Documentation UR15 Technical Specifications Datasheet
Can't find what you're looking for? Contact Us
Spec Attribute Spec Value General Specifications Part Number PR-UR-015-0000 Unit Price $53,835.00 USD Weight 57.22 kg Dimensions (L x W x H) 1000 x 1000 x 500 mm Associated Fasteners 6 x HW-FN-019-0025 , 6 x HW-FN-019-0035
Spec Attribute Spec Value Performance Reach 1300 mm Repeatability ±0.05 mm Max Payload 15 or 17.5 (with boundary conditions according to manual) kg Robot Weight 40.7 kg Degrees of Freedom 6 rotating joints Max Average Power Consumption 550 W Typical Average Power Consumption 350 W
Spec Attribute Spec Value Movement J1 Movement Range 360 degrees J2 Movement Range 360 degrees J3 Movement Range 360 degrees J4 Movement Range 360 degrees J5 Movement Range 360 degrees J6 Movement Range 360 degrees
Spec Attribute Spec Value Features Robot Certified Standards EN ISO 13849-1 (PLd Category
3), EN ISO 10218-1 and UL1740 Robot IP Rating 65 Controller Certificatied Standards ISO Class 4 Controller IP Rating 44 Warranty 12 Months
Spec Attribute Spec Value Controller Controller Power Source 115/230 VAC, 60/50 Hz Controller Weight 12 kg Controller Dimensions 460 mm x 449 mm x 254 mm Controller Digital ports 16 in, 16 out Controller Analog ports 2 in, 2 out Robot to controller cable length 6 m
Parts Quantity Parts Part Number Qty M10 x 1.5 x 25mm Standard Hex Socket Head, Class 12.9 HW-FN-019-0025 6 View M10 x 1.5 x 35mm Standard Hex Socket Head, Class 12.9 HW-FN-019-0035 6 View
$ 53,835 USD
Ships in 3 weeks Sold by Vention Ships from Vention
Questions about this part? Post a question on Vention community forum for insights on this part.
