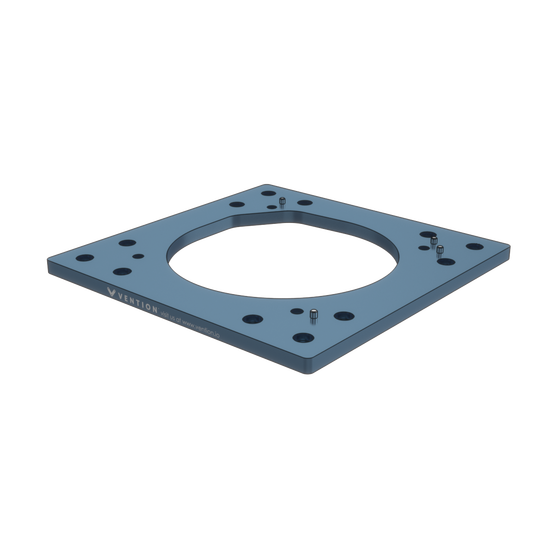

FANUC 200iD Mounting Plate
$305.42 USD
Ships next day
Vention's 200iD mounting plate enables fast and easy installation of a FANUC 200iD, 200iD/7, or 200iD/14 robot to any custom assembly. Note, the Fanuc 200iD/4 is not compatible with this mounting plate. The 4X robot mounting holes use M10 X 1.5 stainless steel helical inserts. Make sure you use all included fasteners in your applications. Outer dimensions are 270mm x 270mm.
Included fasteners:
12 x
HW-FN-002-0001
12 x
HW-FN-003-0018
QTY:
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | ST-RB-006-0001 |
| Weight | 1.301 kg |
| Dimensions (L x W x H) | 270.0 x 270.0 x 11.25 mm |
| Unit Price | $305.42 USD |
| Material | 6061-T6 |
| Surface finish | Dark blue anodized, 6um |
| Standards | Dowel pins are made out of stainless steel |
| Associated Fasteners | 12 x HW-FN-002-0001 , 12 x HW-FN-003-0018 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Mounting | 4x M10, 165 x 165 mm |
| Compatible With | Fanuc 200iD, 200iD/7C, 200iD/7H, 200iD/7L, 200iD/7LC, 200iD/7WP, & 200iD/14L |
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | ST-RB-006-0001 |
| Weight | 1.301 kg |
| Dimensions (L x W x H) | 270.0 x 270.0 x 11.25 mm |
| Unit Price | $305.42 USD |
| Material | 6061-T6 |
| Surface finish | Dark blue anodized, 6um |
| Standards | Dowel pins are made out of stainless steel |
| Associated Fasteners | 12 x HW-FN-002-0001 , 12 x HW-FN-003-0018 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Mounting | 4x M10, 165 x 165 mm |
| Compatible With | Fanuc 200iD, 200iD/7C, 200iD/7H, 200iD/7L, 200iD/7LC, 200iD/7WP, & 200iD/14L |
