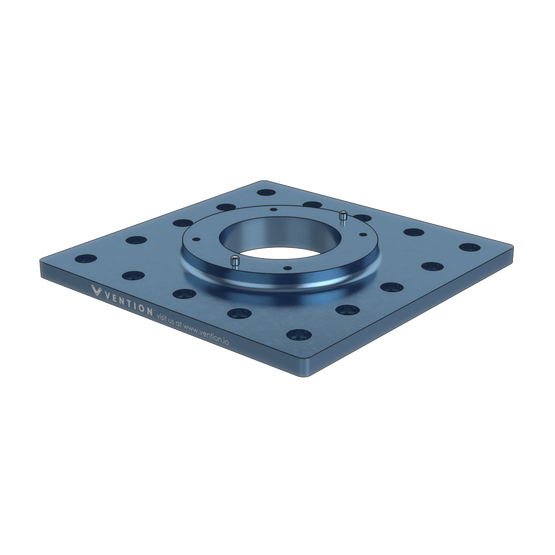

225x225mm UR3 Mounting plate, for Universal Robots
$280.24 USD
Ships next day
Vention's UR3 mounting plate enables fast and easy installation of a UR3 robot to any custom assembly. Outer dimensions are 225mm x 225mm. Certified by Universal Robots.
Included fasteners:
16 x
HW-FN-002-0001
16 x
HW-FN-003-0018
QTY:
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | ST-RB-001-0005 |
| Weight | 1.57 kg |
| Dimensions (L x W x H) | 225.0 x 225.0 x 22.5 mm |
| Unit Price | $280.24 USD |
| Material | 6061-T6 |
| Surface finish | Dark blue anodized, 6um |
| Standards | Dowel pins are made out of stainless steel |
| Associated Fasteners | 16 x HW-FN-002-0001 , 16 x HW-FN-003-0018 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Mounting | 4x M6, Pitch Circle Diameter = 110 mm |
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | ST-RB-001-0005 |
| Weight | 1.57 kg |
| Dimensions (L x W x H) | 225.0 x 225.0 x 22.5 mm |
| Unit Price | $280.24 USD |
| Material | 6061-T6 |
| Surface finish | Dark blue anodized, 6um |
| Standards | Dowel pins are made out of stainless steel |
| Associated Fasteners | 16 x HW-FN-002-0001 , 16 x HW-FN-003-0018 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Mounting | 4x M6, Pitch Circle Diameter = 110 mm |
