ST-RB-001-0004

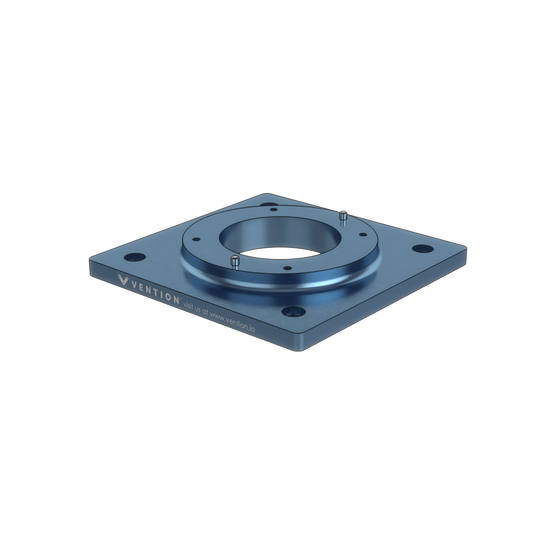

180x180mm UR3 Mounting plate, for Universal Robots
Vention's UR3 mounting plate enables fast and easy installation of a UR3 robot to any custom assembly. Outer dimensions are 180mm x 180mm. Certified by Universal Robots.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| Robot Mounting |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | ST-RB-001-0004 |
| Unit Price | $158.89 USD |
| Weight | 1.066 kg |
| Dimensions (L x W x H) | 180 x 180 x 22.5 mm |
| Material | 6061-T6 |
| Surface Finish | Dark Blue Anodization, 6um |
| Standards | Dowel pins are made out of stainless steel |
| Associated Fasteners | 4 x HW-FN-002-0001, 4 x HW-FN-003-0018 |
| Spec Attribute | Spec Value |
|---|---|
| Technical Specifications | |
| Mounting | 4x M6, Pitch Circle Diameter = 110 |
