Station KCL

Community design

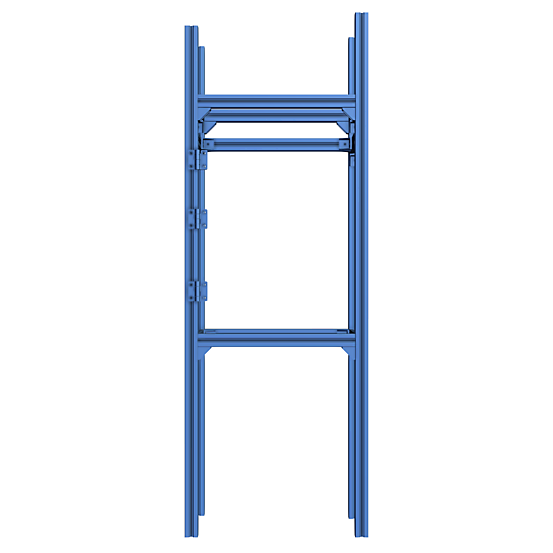

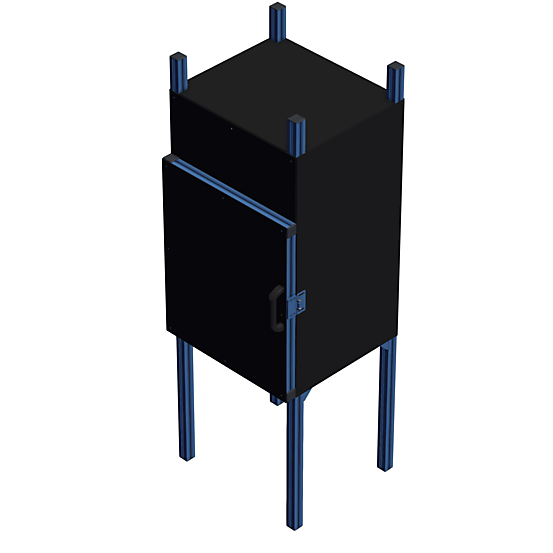

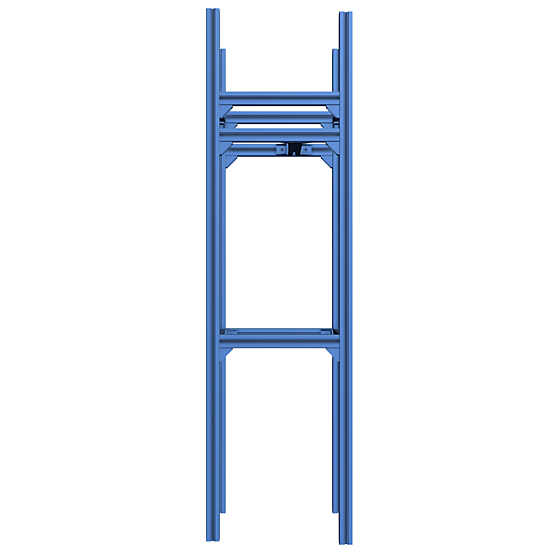

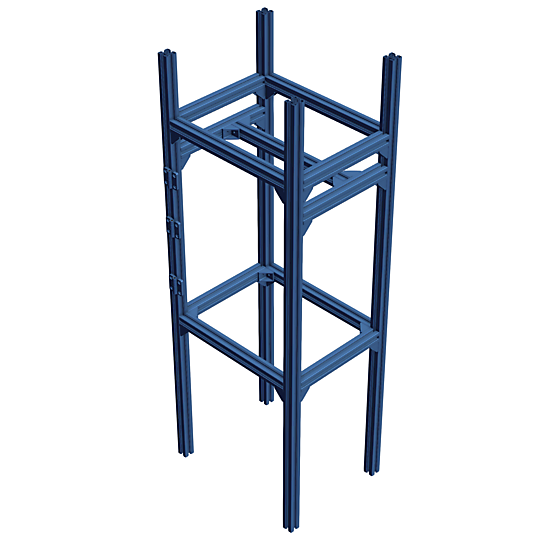

Poste de travail Mobile pour mettre un JIG de Coiling

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-JF-341883
Weight	48.98 kg
Dimensions (L x W x H)	645 x 668 x 1808 mm
Application	Assembly
Assembly Time	03:59

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	12
	Ergonomic HandleHW-HD-001-0001__2 - 160 X 30 X 60 mmShips next day	1
	Spring-Loaded Grab CatchHW-LT-002-0001__2 - 90 X 90 X 19 mmShips in 3 days	1
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips next day	7
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips next day	6
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	2
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	1
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips next day	1
	45x45mm (1800mm) Aluminum ExtrusionST-EXT-001-1800 - 1800 X 45 X 45 mmShips next day	4
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	36
	Door HingeST-SE-005-0001 - 67 X 67 X 19 mmShips next day	2
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.1701 m²Ships in 4 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.3402 m²Ships in 4 days	1
	HDPE Panel, Black 1/8'' [3.18mm]ST-PN-001-0007 - 0.4819 m²Ships in 4 days	1
	HDPE Panel, Black 1/8'' [3.18mm]ST-PN-001-0007 - 0.3402 m²Ships in 4 days	1
	HDPE Panel, Black 1/8'' [3.18mm]ST-PN-001-0007 - 0.3402 m²Ships in 4 days	1
	HDPE Panel, Black 1/8'' [3.18mm]ST-PN-001-0007 - 0.5589 m²Ships in 4 days	1
	HDPE Panel, Black 1/8'' [3.18mm]ST-PN-001-0007 - 0.6521 m²Ships in 4 days	1
	HDPE Panel, Black 1/8'' [3.18mm]ST-PN-001-0007 - 0.5589 m²Ships in 4 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	147
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	45
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	9
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	75
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	7
	M8 1.25 x 16mm Flat Head ScrewHW-FN-015-0016 - 16 X 16 X 16 mmShips in 18 days	15
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	7
