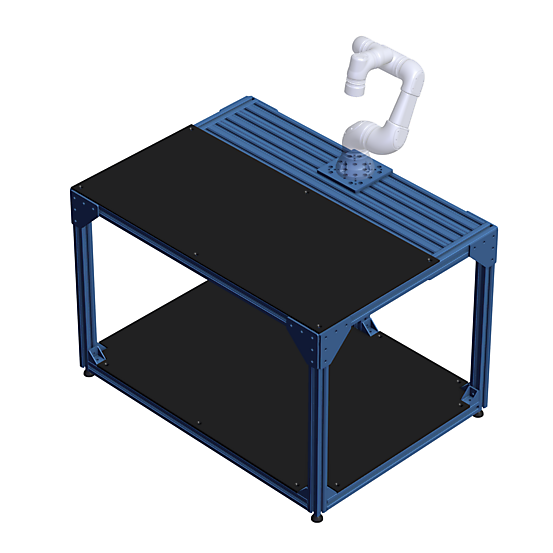

Small Robot Workstation - Plastic Panel Work Surface

Vention official

Vention robot workstation designed with t-slot aluminum extrusions and complete access to the robot which can be placed anywhere along the extrusion tabletop. Mounting compatible with robot brands such as Fanuc, Universal Robots, Kinova, and more. A dedicated area is available under the table top to install the robot controller. Robot is not included.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-RB-130847
Weight	52.25 kg
Dimensions (L x W x H)	822 x 1137 x 766 mm
Application	Manufacturing
Assembly Time	04:00

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	M8 x 40mm Leveling Foot, with 40mm Diameter BaseHW-LF-001-0001 - 40 X 40 X 82 mmShips next day	4
	Extrusion Tapping KitHW-TL-001-0000 - 320 X 225 X 35 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	15
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips in 4 days	1
	45x45mm (630mm) Aluminum ExtrusionST-EXT-001-0630 - 630 X 45 X 45 mmShips in 4 days	1
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips in 4 days	4
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips in 4 days	3
	45x45mm (810mm) Aluminum ExtrusionST-EXT-001-0810 - 810 X 45 X 45 mmShips in 4 days	2
	45x45mm (1035mm) Aluminum ExtrusionST-EXT-001-1035 - 1035 X 45 X 45 mmShips in 4 days	4
	45x90mm (1035mm) Aluminum ExtrusionST-EXT-002-1035 - 1035 X 45 X 90 mmShips next day	3
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	8
	2X6 Hole Aluminum Assembly PlateST-GP-001-0014 - 6 X 268 X 88 mmShips next day	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	20
	Multi-Robot Mounting Plate 180 X 180 mmST-RB-100-0180 - 178 X 178 X 11 mmShips in 2 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004__2 - 0.6075 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.9112 m²Ships in 3 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	148
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	131
	M8 1.25 x 16mm Flat Head ScrewHW-FN-015-0016 - 16 X 16 X 16 mmShips next day	7
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	11
	5mm x 250mm Cable Tie (bag of 25) HW-TW-002-0001 - 250 X 5 X 4 mmShips in 3 days	1
