Curved O-Ring Roller Conveyor - 90 Degree Turn

Vention official

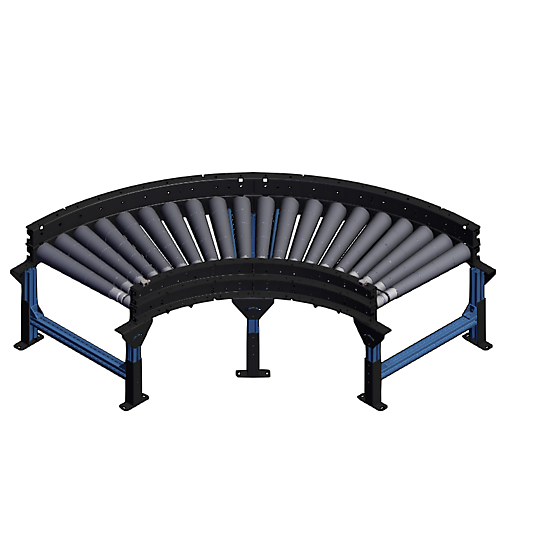

Modular 90 degree turn O-ring roller conveyor section with a width of 585mm. The height of the roller conveyor segment can be customized to suit your application's needs. Use this segment in conjunction with our other O-ring roller conveyor modules to customize the conveyor's layout to your application and factory floor specifications. Motors and sensors included. MachineMotion and control modules not included.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-CV-392590
Weight	94.44 kg
Dimensions (L x W x H)	1757 x 1476 x 609 mm
Application	Material Handling
Assembly Time	06:11

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Diffuse Keyence PR-G M18 NPN/PNP Sensor (Sn 500)CE-SN-007-0007 - 110 X 110 X 30 mmShips next day	2
	Motor Adaptor for O-Ring ConveyorMO-CV-029-0001 - 92 X 85 X 85 mmShips next day	2
	Inner Curve C-Channel for Roller Conveyor (45° Segment)MO-CV-030-0004 - 574 X 98 X 90 mm	2
	Outer Curve C-Channel for 585mm Width Roller Conveyor (45° Segment)MO-CV-030-0005 - 1022 X 146 X 90 mmShips next day	2
	Extrusion Mounting Bracket for Roller Conveyor (Angle Adjustable)MO-CV-030-0006 - 180 X 49 X 112 mmShips in 17 days	8
	Floor Anchoring Bracket for Roller Conveyor (Height Adjustable)MO-CV-030-0007 - 145 X 48 X 228 mmShips next day	8
	Curved 1-Zone O-Ring Conveyor (45° Segment x 585mm W)MO-CV-030-0012 - 1055 X 675 X 199 mm	2
	MachineMotion AI NEMA 34 Stepper Servo Motor - 68mmMO-SM-030-0001 - 271 X 86 X 103 mmShips in 4 weeks	2
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips next day	8
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	4
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	8
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	58
	M8 Drop-in T-nut with M5 set screwHW-FN-002-0008 - 21 X 13 X 8 mmShips next day	17
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	75
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	108
	M8 X1.25 Serrated Flange LocknutHW-FN-031-0002 - 17 X 17 X 8 mmShips next day	91
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	9
	M8 Split Lock Washer, with 12.7mm ODHW-WS-001-1003 - 12 X 12 X 2 mmShips next day	91
