ABB GoFa Robot Arm Pedestal - 585mm

Vention official

Vention robot arm base compatible with ABB GoFa CRB 15000 variants, designed with t-slot aluminum extrusions with center point for the robot base plate at a 585mm height. Anchoring required based on robot used, loads and application. Please contact our technical team in case of support needed. Robot not included.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-RB-368037
Weight	29.85 kg
Dimensions (L x W x H)	405 x 405 x 607 mm
Application	Manufacturing
Assembly Time	02:11

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	25

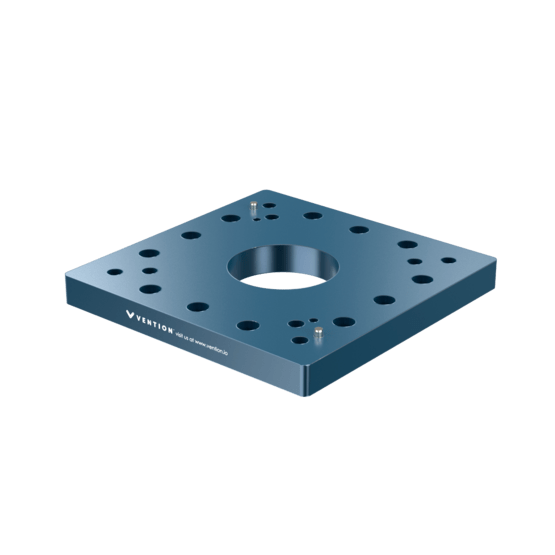

	ABB GoFa 5/10/12 kg Mounting PlateST-RB-022-0003__2 - 223 X 223 X 22 mmShips next day	1
	Heavy Duty Cobot Pedestal, 585 mmST-RB-033-0585__2 - 405 X 405 X 585 mmShips in 15 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	52
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	27
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	26
	M10 x 1.5 x 35mm Standard Hex Socket Head, Class 12.9HW-FN-019-0035 - 45 X 16 X 16 mmShips next day	5
	5mm x 250mm Cable Tie (bag of 25) HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	1
