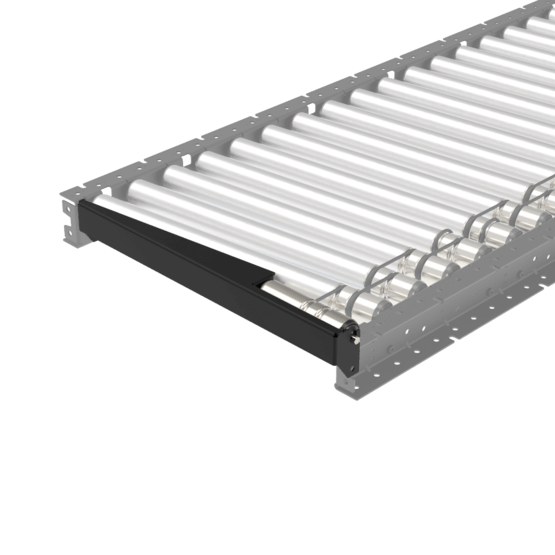

Cover Bracket for Right to Left Skewed Conveyor
MO-CV-030-0020

Cover Bracket for Right to Left Skewed Conveyor

Vention

This bracket is designed for installation at both ends of the right-to-left skewed roller conveyors (MO-CV-030-0013 and MO-CV-030-0014) to cover end gaps and ensure a smooth transition when the conveyors are butt-jointed. It includes a small roller (MO-CV-001-0180) and an extra o-ring (MO-PL-002-0239). The small roller is installed inside the bracket, with the extra o-ring connecting it to the adjacent roller.

Technical Drawing
Technical Drawing
2D Model
3D Model
Technical Documentation
Technical Documentation
Smart O-Ring Conveyor

Can't find what you're looking for? Contact Us

Spec AttributeSpec Value
General Specifications
Part NumberMO-CV-030-0020
Unit Price$33.91 USD
Weight1.129 kg
Dimensions (L x W x H)585 x 67.8 x 86 mm
MaterialSteel
Surface FinishBlack Powder Coat
Associated Fasteners2 x HW-FN-031-0002, 2 x HW-WS-001-1003, 2 x HW-FN-003-0018

PartsQuantity
PartsPart NumberQty
M8 X1.25 Serrated Flange LocknutHW-FN-031-00022View
M8 Split Lock Washer, with 12.7mm ODHW-WS-001-10032View
M8 x 18mm ScrewHW-FN-003-00182View

$33.91 USD

Sold by VentionShips from Vention
