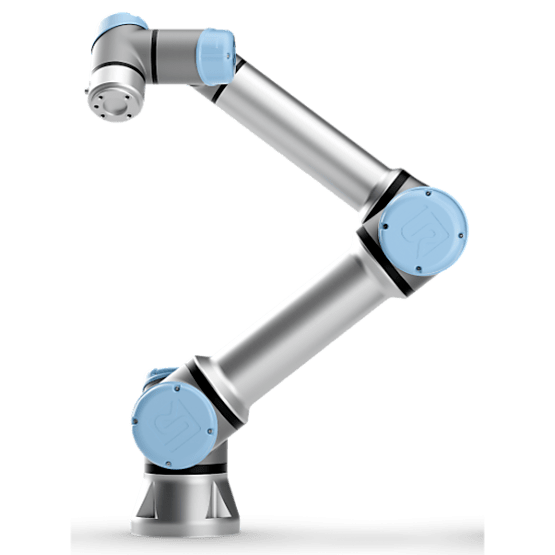

Universal Robots UR7e Collaborative Robot Arm Universal Robots The UR7e is a lightweight small-sized e-series cobot from Universal Robots with a 7.5 kg payload and 850mm reach. Its footprint and payload capabilities make it a good fit for lifting, placing and performing operations with light to medium sized objects that could go further than an average operator’s reach, while ensuring a safe collaboration between humans and machines.
Technical Drawing Technical Drawing 3D Model Download
Technical Documentation Technical Documentation UR7e Technical Specifications Datasheet
Can't find what you're looking for? Contact Us
Spec Attribute Spec Value General Specifications Part Number PR-UR-007-0000 Unit Price $38,363.00 USD Weight 34.4 kg Dimensions (L x W x H) 915 x 760 x 485 mm Associated Fasteners 4 x HW-FN-003-1025
Spec Attribute Spec Value Performance Reach 850 mm Repeatability 0.03 mm Max Payload 7.5 kg Robot Weight 20.6 kg Degrees of Freedom 6 rotating joints Max Average Power Consumption 570 W Typical Average Power Consumption 250 W
Spec Attribute Spec Value Movement J1 Movement Range 360 degrees J2 Movement Range 360 degrees J3 Movement Range 360 degrees J4 Movement Range 360 degrees J5 Movement Range 360 degrees J6 Movement Range 360 degrees
Spec Attribute Spec Value Features Robot Certified Standards EN ISO 13849-1 (PLd Category 3)
and EN ISO 10218-1 Robot IP Rating 54 Controller Certificatied Standards 0 Controller IP Rating 44 Warranty 12 Months
Spec Attribute Spec Value Controller Controller Power Source 100-240 VAC, 47-440 Hz Controller Weight 12 kg Controller Dimensions 460mm x 449mm x 254mm Controller Digital ports 16 in, 16 out Controller Analog ports 2 in, 2 out Robot to controller cable length 6 m
Parts Quantity Parts Part Number Qty M8 x 1.25 x 25 mm Standard Hex Socket Head, Class 12.9 HW-FN-003-1025 4 View
$ 38,363 USD
Ships next day Sold by Vention Ships from Vention
