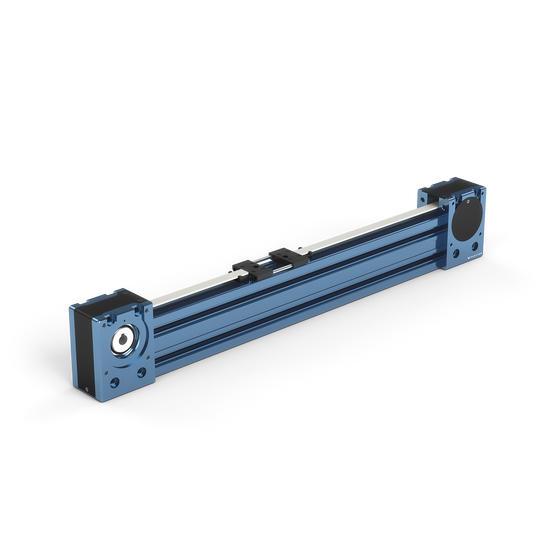

Timing Belt Actuator (1125mm)
$916.36 USD
Ships in 3 days
Belt-driven linear motion actuator. Linear actuator is mounted on any 45x90mm extrusion from 585mm to 3330mm. Add a stepper motor and pair with MachineMotion to enable fast, 150mm/turn linear motion to your assemblies. Two guiding options are available: glass filled nylon rollers or precision linear bushings from Thomson Linear.
Included fasteners:
8 x
HW-FN-002-0001
8 x
HW-FN-003-0070
Select dimension:
Length:
x 67.5 mm x 120.0 mm
QTY:
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | MO-LM-016-1125__2 |
| Weight | 7.12237 kg |
| Dimensions (L x W x H) | 1305.0 x 67.5 x 120.0 mm |
| Unit Price | $916.36 USD |
| Material | N/A |
| Surface finish | N/A |
| Associated Fasteners | 8 x HW-FN-002-0001 , 8 x HW-FN-003-0070 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Max Output Force | 335 N |
| Stroke | 1125 - gantry length mm |
| Repeatability | ±0.025 mm |
| Max Linear Speed | 2000 mm/s |
| Displacement Ratio | 150 mm/turn |
