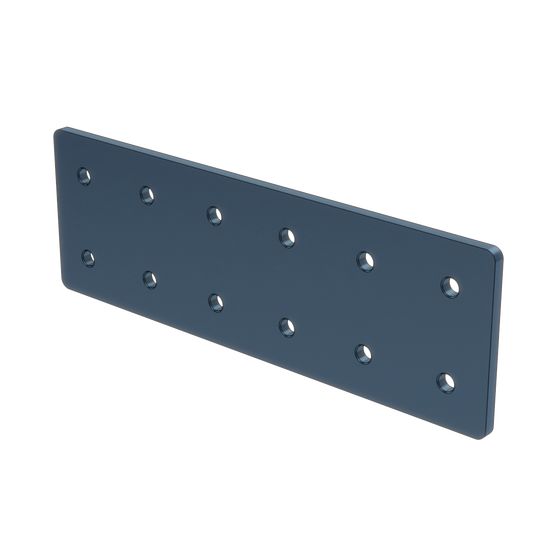

2X6 Hole Aluminum Assembly Plate

2X6 Hole Aluminum Assembly Plate

$49.38 USD
Ships next day
Vention's general assembly plates are designed to be combined with Vention's extrusions to maximize ease of assembly and lower costs. These plates are available in a variety of configurations, supporting all sorts of structural assemblies.
Quantity:
Start a new design
Use desktop to design

Technical Drawings

General Specifications

Spec Attribute Spec Value
Part Number ST-GP-001-0014
Weight 0.371 kg
Dimensions (L x W x H) 6.0 x 268.0 x 88.0 mm
Unit Price $49.38 USD
Material 6061-T6
Surface finish Dark blue anodized, 6um
Associated Fasteners 12 x HW-FN-002-0001 , 12 x HW-FN-003-0018
Light-Duty Fasteners 12 x HW-FN-002-0001 , 12 x HW-FN-003-0012
Have a question about this part?
Ask in the forum! Go to the forum
