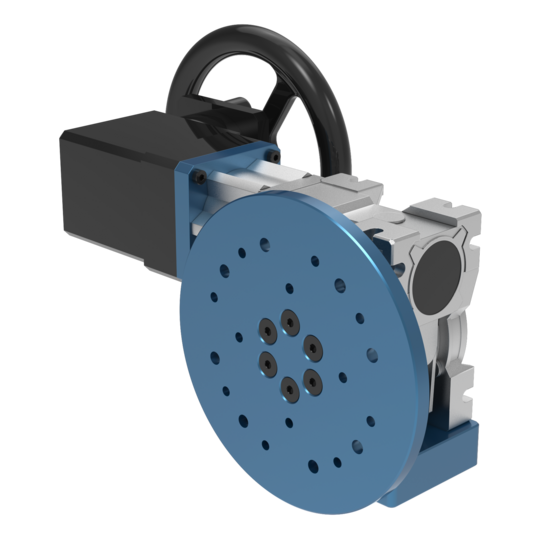

Right Angle Input Kit For Worm Gearbox

The Vention Right Angle Input for Worm Gearbox is a parts kit to enable manual rotary jigs. The kit includes the worm gearbox, a mount, a right angle gearbox for the input axis, the output shaft and flange to allow the kit to be directly integrated with the Vention ecosystem. The ratio of the gearbox is 70:1 and the handwheel is 200mm diameter to make the product easy to use even with heavy payloads and offset loads. The gearbox is non-back drivable for operator safety and can handle loads up to 1000 lbs (453 kg) when combined with a support on the other end of the payload. For additional product specs and capabilities, refer to the technical documentation linked below.
