HW-RP-002-0004

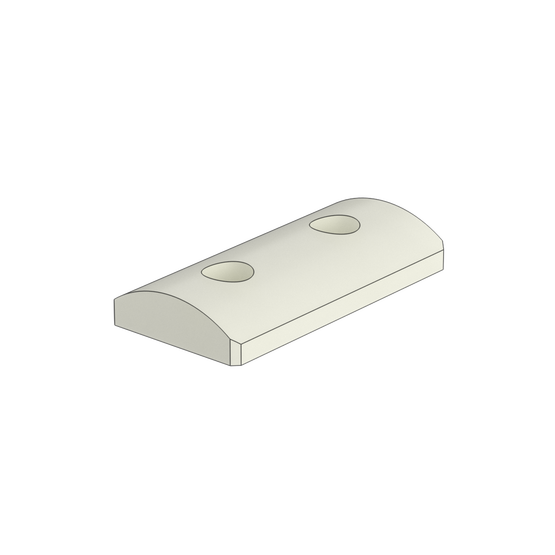

45x90mm Rest Pad, with Cylindrical Profile
Heavy-duty delrin rest pad to be used as protection when moving heavy and/or fragile goods on industrial carts or in other applications. Putting four of those rest pads on a 45 x 45mm Vention extrusion created a round protected arm with diameter of 70mm.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| Designing jigs and fixtures |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | HW-RP-002-0004 |
| Unit Price | $19.13 USD |
| Weight | 0.06 kg |
| Dimensions (L x W x H) | 15 x 90 x 45 mm |
| Material | White Delrin |
| Associated Fasteners | 2 x HW-FN-002-0001, 2 x HW-FN-003-0018 |
| Light Duty Fasteners | 2 x HW-FN-002-0001, 2 x HW-FN-003-0012 |
