905 mm Heavy-Duty Linear Motion Cassette

Community design

The heavy-duty linear motion cassette is capable of providing 1-axis motion when coupled with the MachineMotion controller. The double extrusion assembly coupled with its rugged gantry plate enables usage in tough applications.

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-809
Weight	13.86 kg
Dimensions (L x W x H)	972 x 237 x 113 mm
Application	Other Equipment
Assembly Time	01:32

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	905mm x 16mm OD Ball Screw with Ball Nut and Shaft CollarMO-BS-003-0905 - 905 X 40 X 48 mmObsolete	1
	Aluminum Helical Flexible Shaft CouplingMO-CP-001-0001 - 38 X 38 X 30 mmObsolete	1
	Large Gantry PlateMO-LM-001-0009 - 225 X 180 X 12 mmObsolete	1

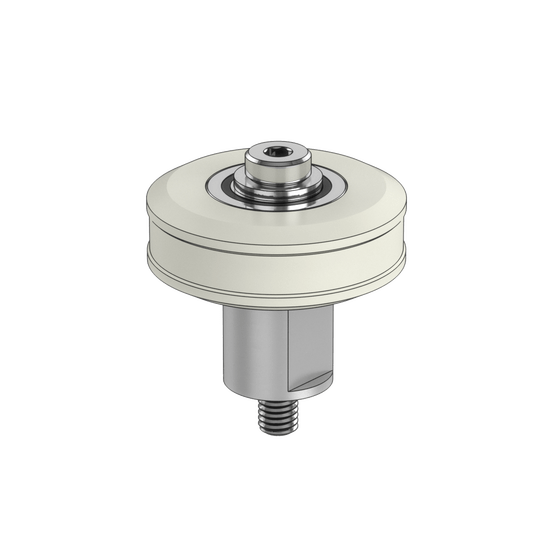

	Large Nylon Roller Wheel with Eccentric BushingMO-LM-001-0019__2 - 44 X 44 X 50 mmObsolete	4
	Ball Screw Nut HousingMO-LM-002-0001 - 78 X 60 X 60 mmObsolete	1
	Mounting Plate for Stepper MotorMO-LM-002-0002 - 22 X 225 X 90 mmObsolete	1
	Support Plate for Ball ScrewMO-LM-002-0009 - 22 X 225 X 90 mmObsolete	2
	45x90mm (45mm) Aluminum ExtrusionST-EXT-002-0045 - 45 X 45 X 90 mmShips next day	2
	45x90mm (855mm) Aluminum ExtrusionST-EXT-002-0855 - 855 X 45 X 90 mmShips next day	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	2
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	21
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	17
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	9
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	17
	M5-0.8 x 20mm ScrewHW-FN-008-0020 - 23 X 8 X 8 mmShips next day	5
