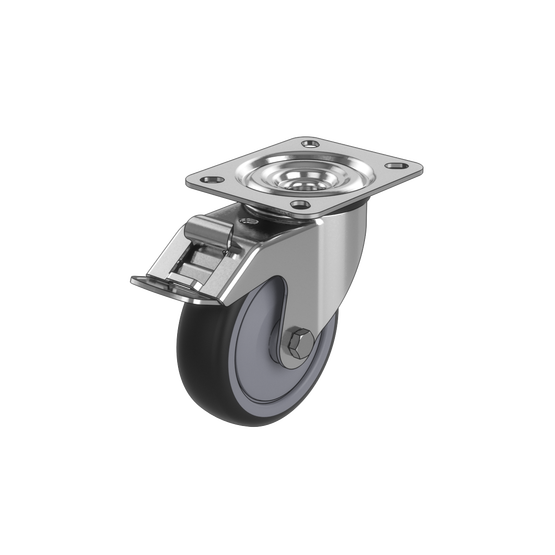

Premium Swivel Caster Wheel with Brake, 150kg Capacity
$42.84 USD
Ships next day
German-made medium-duty swivel caster wheel, with brake. Unibody stainless steel bracket with nylon wheel and rugged polyurethane thread. Bearings are covered to prevent contamination.
Maximum capacity per wheel: 150kg
Included fasteners:
4 x
HW-FN-002-0001
4 x
HW-FN-003-0014
QTY:
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | MO-WL-001-0004 |
| Weight | 0.341 kg |
| Dimensions (L x W x H) | 160.8 x 85.0 x 125.0 mm |
| Unit Price | $42.84 USD |
| Material | Steel/Nylon/Polyurethane |
| Associated Fasteners | 4 x HW-FN-002-0001 , 4 x HW-FN-003-0014 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Load Capacity | 1470 N |
| Mounting | 80 x 60 mm |
| Temperature Range | -25 to 70 °C |
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | MO-WL-001-0004 |
| Weight | 0.341 kg |
| Dimensions (L x W x H) | 160.8 x 85.0 x 125.0 mm |
| Unit Price | $42.84 USD |
| Material | Steel/Nylon/Polyurethane |
| Associated Fasteners | 4 x HW-FN-002-0001 , 4 x HW-FN-003-0014 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Load Capacity | 1470 N |
| Mounting | 80 x 60 mm |
| Temperature Range | -25 to 70 °C |
