Vention 100mm XY Offset Bracket
MO-GR-012-0100

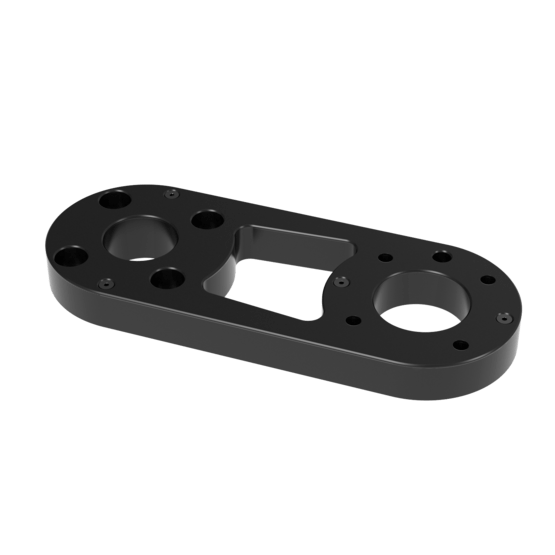

Vention 100mm XY Offset Bracket

Vention

This bracket is used in Vention's modular vacuum grippers to provide a 100 mm offset in XY plane between the robot flange and the gripper.

Technical Drawing
Technical Drawing
2D Model
Download
3D Model

Can't find what you're looking for? Contact Us

Spec AttributeSpec Value
General Specifications
Part NumberMO-GR-012-0100
Unit Price$268.03 USD
Weight0.208 kg
Dimensions (L x W x H)165 x 63 x 18 mm
Material6061-T6
Surface FinishBlack Anodized
Associated Fasteners4 x HW-FN-005-0012, 4 x HW-FN-005-1025

PartsQuantity
PartsPart NumberQty
M6 x 1.0 x 12mm, Low Profile Socket HeadHW-FN-005-00124View
M6 x 1.0 x 25 Standard Hex Socket Head, Class 12.9HW-FN-005-10254View

$268.03 USD

Sold by VentionShips from Vention
Add to project Talk with an expert
