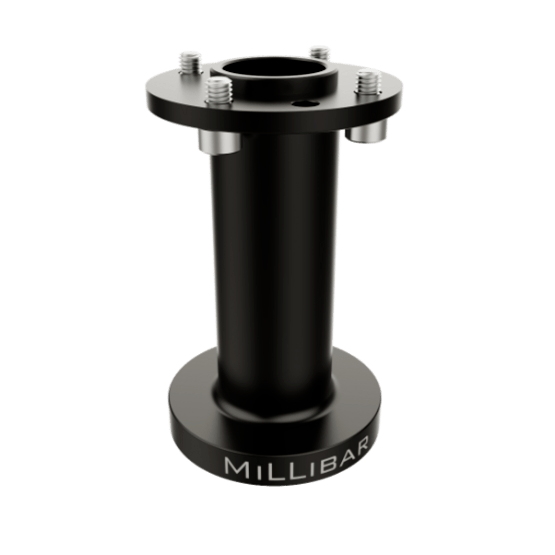

Robot Wrist Extensions EX-50-150 mm
PR-MB-001-0223

Robot Wrist Extensions EX-50-150 mm

Milibar

Wrist Extensions are ideal for placing products into, or removing products from, a deep container such as a box/ tote. Each extension contains a flange that bolts directly to your robot’s wrist and replicates that flange on the opposite end. Choose from 50mm to 150mm lengths. Add a Suction Cup Mount for attaching a suction cup to the end of the extension. These extensions attach to all sizes and series of Universal Robots and robots with a 50mm bolt circle based on the ISO 50 Pattern. Length (flange to flange): 150mm Material: Aluminum

Technical Drawing
Technical Drawing
3D Model

Can't find what you're looking for? Contact Us

Spec AttributeSpec Value
General Specifications
Part NumberPR-MB-001-0223
Unit Price$171.10 USD
Weight0.14 kg

$171.10 USD

Sold by VentionShips from Vention
